Advantech PDC-W210-D10-ATE

€1,449
In stock

21.5” monitor 2M/DC/P-cap touch

  • Wide 21" screen with Full HD 1920 x 1080 resolution.
  • Professional LCD quality with 2.3 Megapixel color image.
  • DICOM Pre-setting and convenient for switching between DICOM and Gamma 2.2.
  • Support USB hub function and AC internal power supply.
  • Medical grade, IP-54-rated and cleanable.
  • PCAP Touchscreen (Optional).
Quantity
In stock



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech PDC-W210-D10-ATE

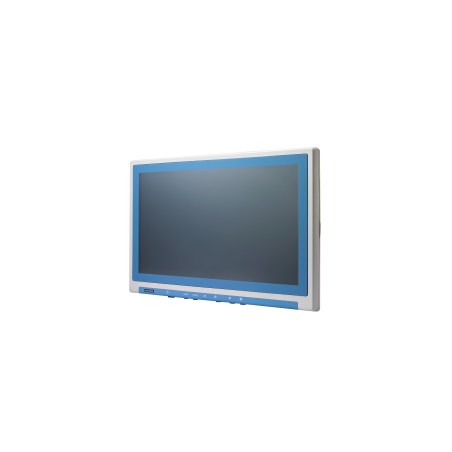

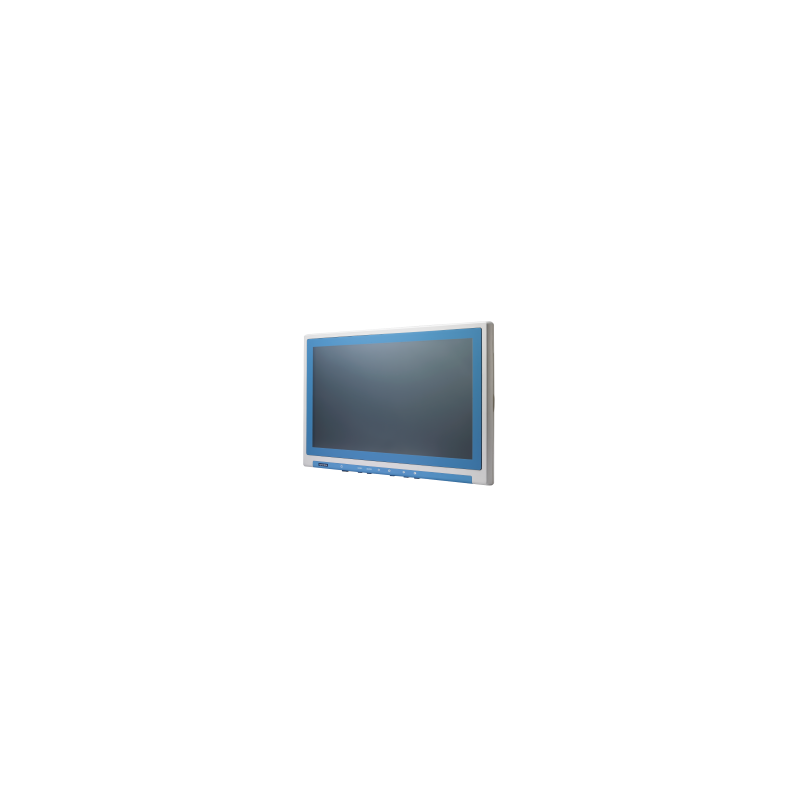

Advantech’s PDC-WP210 is a 21.5" medical display designed for use in critical hospital environments, such as operating rooms and intensive care units. Featuring a high contrast ratio, wide viewing angle, and gloved operation responsiveness, the IPS display monitor provides care providers with consistent, high quality images. The monitor is also equipped with a hotkey for switching between DICOM and Gamma calibration. The entire PDC-W21.5 unit is IP54 rated for water and dust resistance, and the true flat front panel design enables easy cleaning with alcohol cleaning agents.   Advantech’s PDC series products share the same design aesthetic as its POC series of medical computers. Thus, products from both series can be combined for visual integrity in specific environments. PDC medical monitors can be used as information display and retrieval devices or serve as control panels when integrated with other clinical equipment or mobile medical carts.
DisplayDisplay Type21.5" wide TFT color LCD (16:9)
Max. Resolution1920 x 1080
TypeIPS
Max. Colors16.7 M colors (6-bits+A-FRC)
Pixel Pitch (mm)0.2475 x 0.2475
Contrast Ratio1000:1 (Typ.)
Luminance (cd/m2)250 cd/m2 (Typ.)
Viewing Angle (H/V°)178/178°
Response Time25ms (Typ., on/off)
BacklightLED
LCD MTBF30,000 Hours
Color TemperatureCool9300° K color temperature
Neutral6500° K color temperature
Warm5500° K color temperature
I/O PortsHDMI1
DVI1
DP1
VGA1
P-cap USB (Type B)1 (optional, for P-cap touch only)
Audio out1
Line in1
SpeakerLeft/ Right
Optional FunctionsDICOMCompatible to DICOM Part 14
Optional TouchscreenTypeProjected Capacitive 2-points (AR)
ResolutionContinuous
Light Transmission90±3%
ControllerUSB interface
DurabilityOver 50 million touches
Power SupplyPower AdapterInput:100~250V,0.6A,60/50Hz universal/Output:12V,4.5A
Power Consumption<30W
EnvironmentTemperature0 ~ 40° C (Operating)
Humidity10 ~ 95% @ 40° C (non-condensing)
Vibration /Shock Resistance5 ~ 500 Hz, 1G acceleration / 30G half sine, 11 ms duration
Water/dust ResistanceIP54 for whole system
Physical CharacteristicsDimensions (W x D x H)550 x 360 x 65 mm (22.95" x 15.19" x 2.71")
Weight5.5 Kg
MountingVESA 100 x 100 mm
Certifications-FCC, CE, UL60601-1, EN60601-1
Advantech
PDC-W210-D10-ATE
1 Item

Download

PDC-W210_DS(051821)20210519131613.pdf

PDC-W210_DS(051821)20210519131613.pdf
