Advantech ECU-1251D-R10AA
  • Advantech ECU-1251D-R10AA
  • Advantech ECU-1251D-R10AA
  • Advantech ECU-1251D-R10AA
  • Advantech ECU-1251D-R10AA
  • Advantech ECU-1251D-R10AA

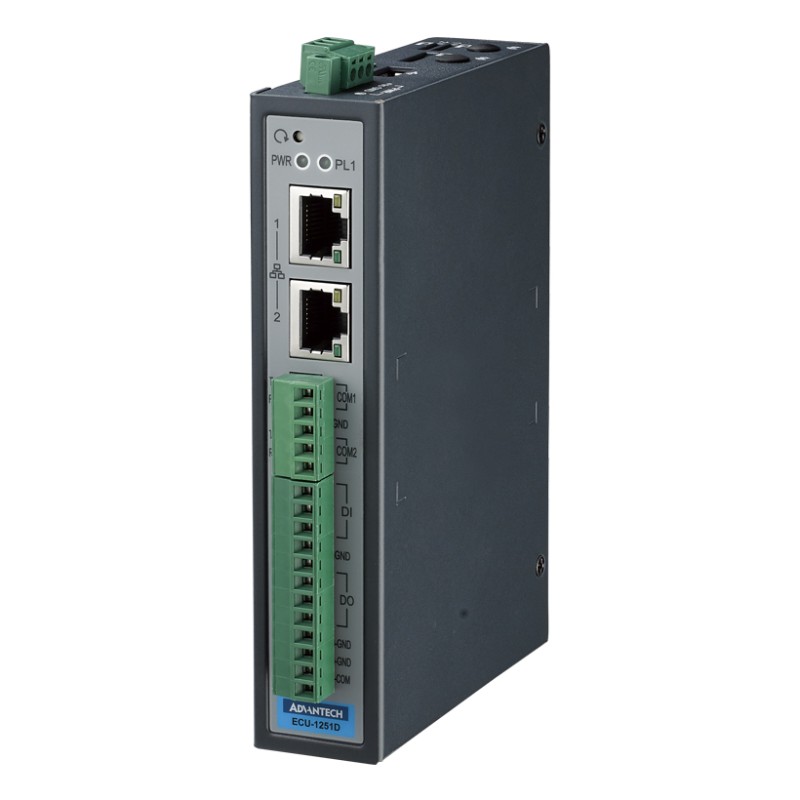

Advantech ECU-1251D-R10AA


Cloud enabled Intelligent Communication Gateway with DI/DO for IIOT application

  • TI Cortex A8 600MHz CPU with DDR3L 256MB RAM.
  • Onboard IO - 4DI / 4DO.
  • Support web service for remotely on-line monitoring.
  • Firmware update by SD card and online update.
  • Data logger on SD card.
  • Support dual SIM slots for communication redundant.
  • Support MQTT Client for cloud communication.
  • Wide Operating temperature: -40 ~ 70°C.
On enquiry


Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech ECU-1251D-R10AA

ECU-1251D has an open platform design with Cortex A8 processor, two 10/100 Ethernet ports, onboard IO - 4DI / 4DO, and operating temperature range of -40~70°C.With Linux operating system and open Edgelink SDK, which enable to system integrators to develop applications which precisely fit their need.
EnvironmentOperating Temperature-40~70 °C
Relative Humidity5~95% RH (non-condensing)
Storage Temperature-40~85 °C
EthernetSpeed10/100 Mbps
Expansion FunctionSIM card slotNano SIM card
GeneralGrounding ProtectionChassis grounding
Programming LanguageLinux C
ProtocolOPC-UA Client & Server, DNP3.0 Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101 Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server
HardwareCertificationCE, FCC Class A
CPUTI Cortex A8, 600MHz
LED indicatorsPWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program
MemoryDDR3L 256MB
OS SupportLinux
Power Input10~30 VDC
Storage1 x 512MB NAND Flash
Watchdog timer15~255 s
I/O InterfaceExpansion1 x Full-size mPCIe slot
LAN Ports2 x 10/100 Mbps
Power Connector1 x 3-Pin Terminal Block
Serial Ports2 x RS-232/485 (Terminal Block)
MechanicalDimension (W x H x D)140 x 30 x 96.5 mm
Form FactorPassive Cooling and Front Accessible
MountingWall, DIN-rail
Power RequirementsInput Voltage10~30 VDC
Serial CommunicationBaud Rate (bps)50 bps~115.2 kbps
Data SignalsRS-232: TxD, RxD, GND RS-485: Data+, Data-
Wireless CommunicationStandard(Technology)WIFI, LTE
