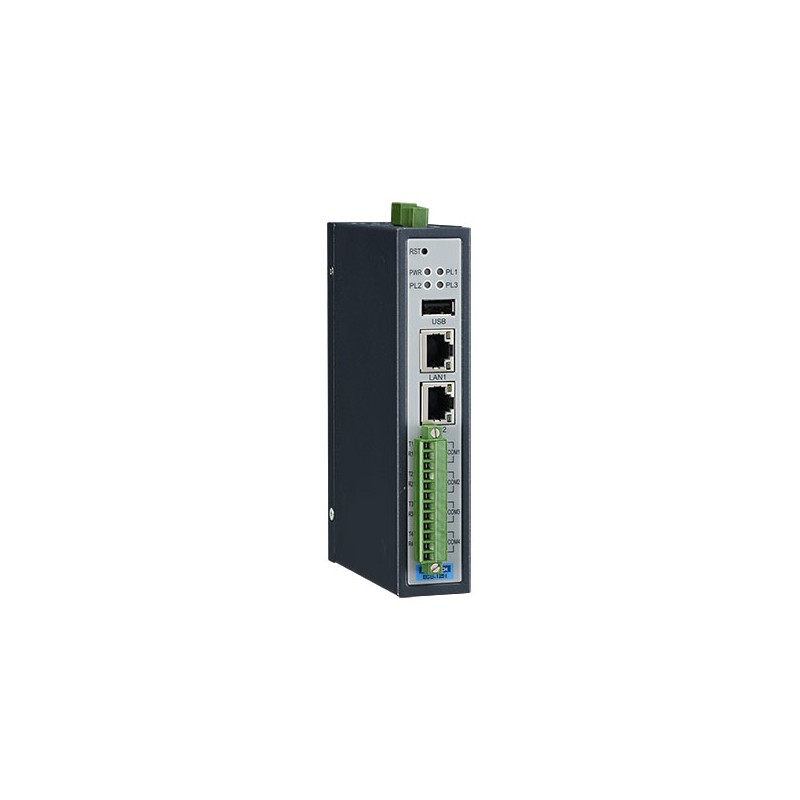

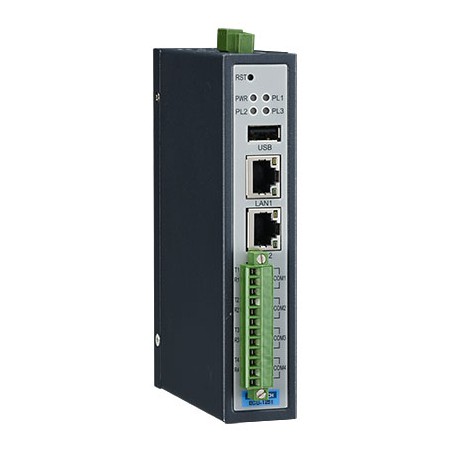

Advantech ECU-1251TL-R10ABE

Name: Advantech ECU-1251TL-R10ABE
Brand: Advantech
SKU: ECU-1251TL-R10ABE
Price: 363 EUR
Availability: InStock

€363

In stock

A8 800MHz, 2xLAN, 4xCOM, 1xmPCIe IoT Gateway with EdgeLink, 48V

TI Cortex A8, 800MHz.
DDR3L 256MB RAM.
1 x Micro-SD Slot.
4 x RS-232/485 isolated serial ports.
2 x 10/100 Base-T Ethernet ports.
1 x Mini-PCIe for WIFI/3G/GPRS/4G.
Support web service for remotely on-line monitoring.
Support SD card & on-line firmware update.
Support Modbus, IEC-60870-101/104 protocol.
Support Data logger on SD card.
RED Compliance.
Operation Temperature -40~70°C.

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech ECU-1251TL-R10ABE

For solar power, electricity and factory related applications which require a total wireless and Ethernet communication solutions, Advantech has released the ECU-1251 RISC-based industrial communication gateway. ECU-1251 has an open platform design with Cortex A8 processor, up to four RS-232/485 isolated serial ports, two 10/100 Ethernet ports and operating temperature range of -40~70°C.WithLinux operating system and open TagLink SDK, which enable to system integrators to develop applications which precisely fit their need.

Environment	Operating Temperature	-40~70 °C
	Relative Humidity	5~95% RH (non-condensing)
	Storage Temperature	-40~85 °C
Ethernet	Speed	10/100 Mbps
Expansion Function	Interface	1 x Full-size mini PCIe 2.0
	SIM card slot	Nano SIM card
General	Grounding Protection	Chassis grounding
	Programming Language	Linux C
	Protocol	OPC-UA Client & Server, DNP3.0 Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101 Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server
Hardware	Certification	CE, FCC class A
	CPU	TI Cortex A8, 800MHz
	Expansion	1 x Full-size mPCIe slot
	LED Indicators	PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program
	Memory	DDR3L 256MB
	OS Support	Linux
	Power Input	10~48 VDC
	Storage	1 x 1GB Micro-SD card
	Watchdog Timer	15~255 s
I/O Interface	Expansion	1 x Full-size mPCIe Slot
	LAN Ports	2 x 10/100 Mbps
	Power Connector	1 x 3-Pin Terminal Block
	Serial Ports	4 x RS-232/485 (Terminal Block)
	USB Ports	1 x USB 2.0
Mechanical	Dimension (W x H x D)	140 x 30 x 96.5 mm
	Enclosure	SECC
	Form Factor	Passive Cooling and Front Accessible
	Mounting	Wall, DIN-rail
Power Requirements	Input Voltage	10~30 VDC
Serial Communication	Baud Rate (bps)	50 bps~115.2 kbps
	Data Signals	RS-232: TxD, RxD, GND RS-485: Data+, Data-
Wireless Communication	Standard (Technology)	WIFI, LTE

Brand Advantech

Reference ECU-1251TL-R10ABE

In stock 1 Item

Data sheet

Temperature (Operating Range): -40~70 °C

Download

ECU-1251TL_DS(110823)20231108150317.pdf
