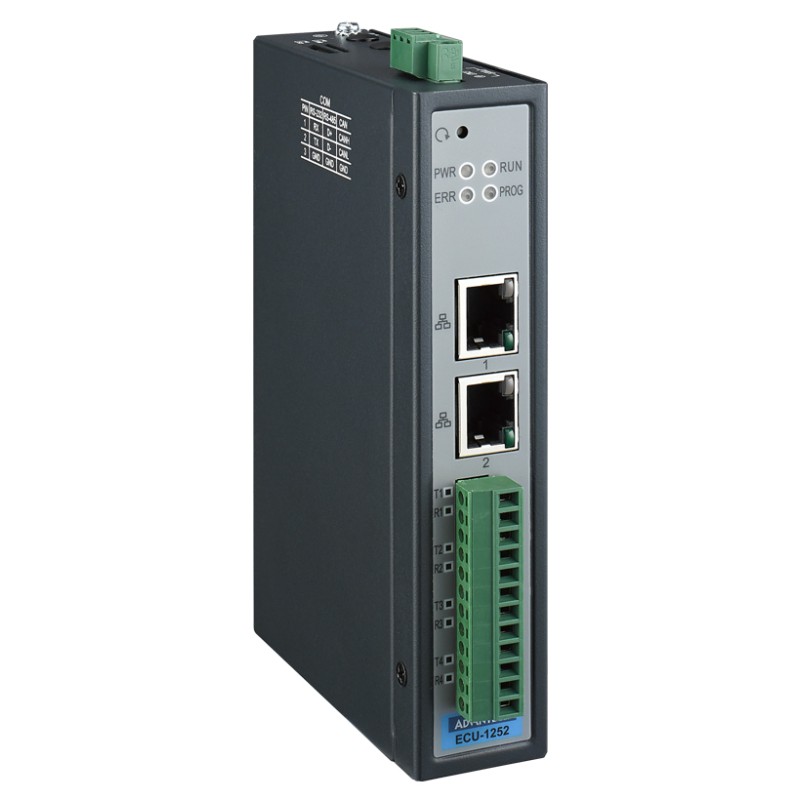

Advantech ECU-1252TL-R22AA

€288
In stock

A9 600MHz, 2xCAN, 2xLAN, 2xCOM, 1xmPCIe IoT Gateway with EdgeLink

  • TI Cortex A9 600MHz CPU.
  • DDR3L 2GB RAM.
  • 16GB eMMC for system storage.
  • 1 x Micro-SD Slot.
  • 2 x CAN port.
  • 2 x RS-232/485 isolated serial ports.
  • 2 x 1000 Base-T Ethernet ports.
  • 1 x Mini-PCIe for WIFI/Cellular/4G.
  • Support web service for remotely on-line monitoring.
Quantity
In stock



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech ECU-1252TL-R22AA


ECU-1252 has an open platform design with Cortex A9 processor, up to 2 RS-232/485 isolated serial ports, 2 CAN ports, 2 1000 Base-T Ethernet ports and operating temp. of -40~70°C. Its Linux operating system and open EdgeLink SDK helps system integrators developing industrial applications.
Power SupplyInput Voltage12~30 VDC
GeneralHumidity (Storage)5~95% RH (non-condensing)
HardwareCPUARM® Cortex™ A9
Storage16 GB eMMC
LAN2 x 10/100/1000 Base-T Ethernet
Watchdog TimerProgrammable
Hardware SecurityTPM 2.0
LED IndicatorsPower, LAN (Active, Link), Serial (Tx/Rx), Programmable
CertificationCE, FCC
Power Consumption2.5 W @ 24 VDC
OS SupportLinux 4.9
I/O InterfaceSerial Ports2 x RS-232/485 (Terminal Block)
EnvironmentVibration Protection1 Grms, random
Operating Temperature-40~70 °C
Storage Temperature-40~85 °C
Expansion FunctionSIM card slotNano SIM card
Interface1 x Full-size mini PCIe
MechanicalMountingWall, DIN-rail
Dimension (W x H x D)140 x 30 x 96.5 mm
Form FactorPassive Cooling and Front Accessible
HardwareI/O2 x CAN Bus
Advantech
ECU-1252TL-R22AA
82 Items

Download

ECU-1252TL-R22AA_DS(070523)20230922113033.pdf

ECU-1252TL-R22AA_DS(070523)20230922113033.pdf
