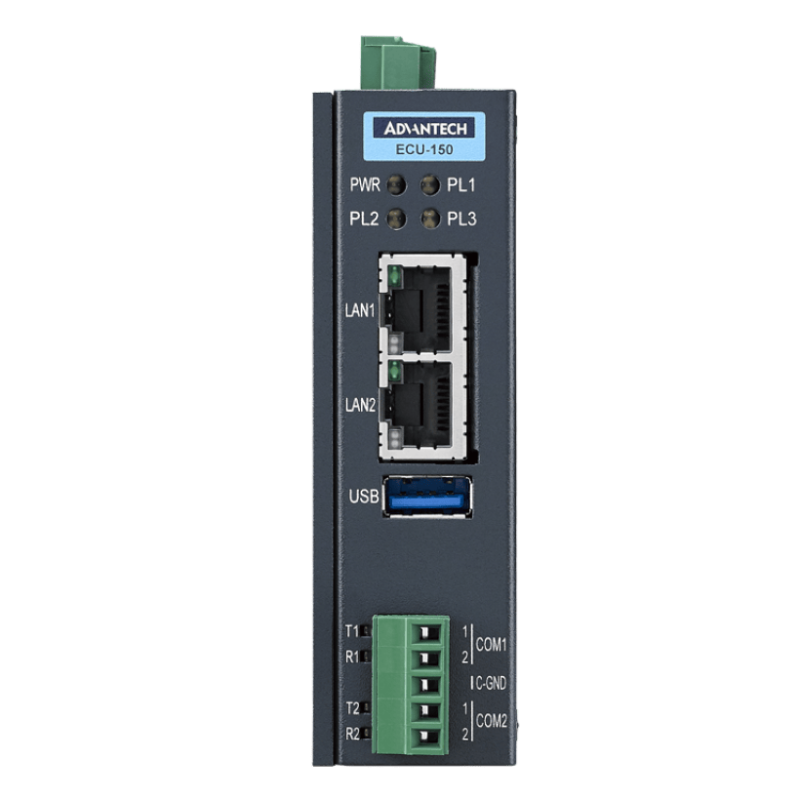

Advantech ECU-150-12A

Name: Advantech ECU-150-12A
Brand: Advantech
SKU: ECU-150-12A
Price: 423 EUR
Availability: InStock

€423

In stock

A53 1.3GHz,2xLAN,2xCOM,1xmPCIe w/EdgeLink

NXP i.MX8M Quad Core Cortex A53 1.3G CPU.
DDR4 2GB RAM, 16GB eMMC for system storage.
2 x RS-232/485 isolated serial ports.
2 x 10/100/1000 Ethernet ports.
1 x Mini-PCIe for WIFI/Cellular/4G.
Support web service for remotely on-line monitoring.
Support SD card & on-line firmware update.
Support Modbus, IEC-60870-5, DNP3.0, OPC-UA, BACNet protocol （ECU-150-12A1&ECU-150-12A1U need container EdgeLink）.
Support Data logger on SD card.

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech ECU-150-12A

ECU-150 is an i.MX8M based high-performance IoT gateway, which has an open platform design with Quad Core processor, two RS-232/485 isolated serial ports, two 10/100/1000 Ethernet ports, one USB 3.0 port and operating temperature range of -40~70°C. It offers Mini-PCIe and M.2 slot.

General	Humidity (Storage)	5~95% RH (non-condensing)
	Programming Language	Linux C
Hardware	LAN	2 x 10/100/1000 Base-T Ethernet
	Watchdog Timer	Programmable
	Expansion	1 x Full-size mPCIe slot
	Certification	CE, FCC, UL
	OS Support	Linux
	Power Input	10~30 VDC
I/O Interface	Serial Ports	2 x RS-232/485 (Terminal Block)
	USB Ports	1 x USB 3.0
	Power Connector	1 x 3-Pin Terminal Block
Environment	Vibration Protection	1 Grms, random
	Ingress Protection	IP30
	Operating Temperature	-40~70 °C
	Storage Temperature	-40~85 °C
	Isolation Voltage	2,500 VDC
Expansion Function	SIM card slot	Nano SIM card
Mechanical	Mounting	Wall, DIN-rail
	Form Factor	Passive Cooling and Front Accessible
General	Protocol	OPC-UA Client & Server, DNP3.0 Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101 Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server
	Grounding Protection	Chassis grounding
Hardware	CPU	NXP® ARM® Cortex™ A53 i.MX8M 1.3 GHz Quad-Core
	Memory	1 x LPDDR4 with 2 GB
Mechanical	Enclosure	Aluminum housing, Steel
	Dimension (W x H x D)	100 x 93 x 30 mm
Hardware	Storage	16 GB eMMC
	LED Indicators	Power, LAN (Active, Link), Serial (Tx/Rx), Programmable

Brand Advantech

Reference ECU-150-12A

In stock 1 Item

Data sheet

Temperature (Operating Range): -40~70 °C

Download

ECU-150_DS(041824)20240426090906.pdf
