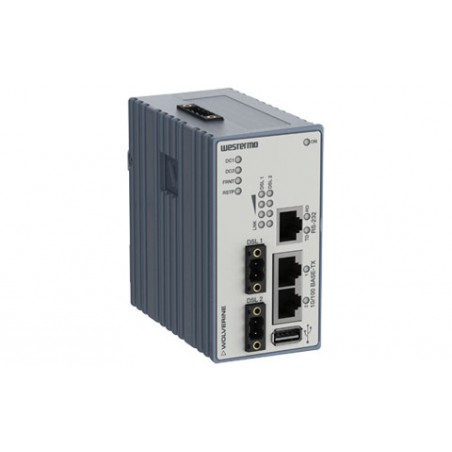

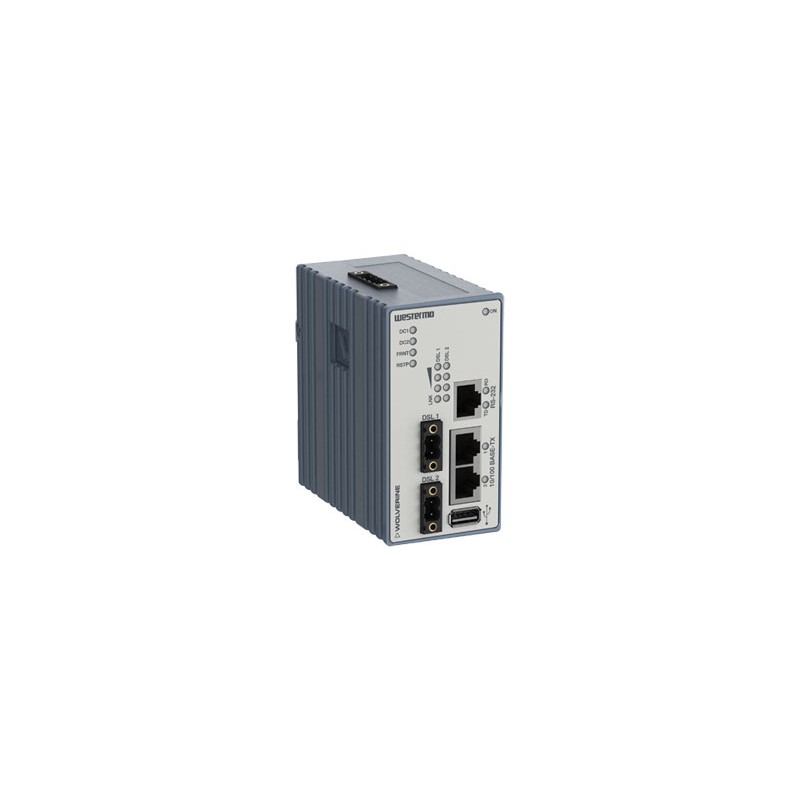

Westermo DDW-242-12VDC

Advanced Industrial Ethernet Extender

  • 2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
  • 2x 2-position detachable screw terminals for SHDSL ports
  • 1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s


Terms and Conditions



To see the price, please register.

In stock

Westermo’s Ethernet extender technology based on SHDSL makes it possible to reuse many types of pre-existing copper cables, which can lead to considerable financial savings when installing new systems. The Wolverine DDW-242 allows effective Ethernet networks to be created over long distances (up to 15 km (9.3 mi)) at data rates up to 15.3 Mbit/s on a single twisted pair cable. By using two pairs “bonded” this rate can be doubled up to 30.6 Mbit/s. The integral switch allows2 Ethernet devices to be attached and an RS-232 port allows for a legacy piece of equipment to be incorporated into the IP network.

Only industrial grade components are used which gives the Wolverine an MTBF of 437,000 hours and ensures a long service life. A wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Wolverine has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside application.

WeOS has been developed by Westermo to allow us to offer cross platform and future proof solutions. WeOS can deliver unique IP security functionality for this class of product, for instance a Multiport DMZ can be constructed by utilising the internal port based firewall function. Remote secure access to a network can be provided using encrypted VPNs. For more WeOS functionality please see the WeOS datasheet.

✔ Save time and money reusing old cable and equipment

• Up to 15.3 Mbit/s Ethernet over twisted pair or 30.6 Mbit/s with bonding
• Advanced WeOS layer 3 functionality
• Legacy connection via RS-232 port

✔ Security, legacy resilient networking from WeOS

• Network IP Security and remote access
• Port access control and firewall
• VPN tunnels over SHDSL

✔ Easy to Use

• Basic installation with no configuration needed
• Web screen for simple configuration and CLI for professional use
• USB fluid configuration for easy maintenance

✔ Robustly designed for mission critical applications

• 437,000 hours MTBF to MIL- HDBK -217F for extreme reliability
• Extensive line diagnostics and fault I/O contact and SNMPv3
• Robust design for vibration, temperature and dual power input

Westermo
DDW-242-12VDC
1 Item

Data sheet

Connection
RJ45
≤10 Ethernet ports
Input voltage
12 VDC
24 VDC
48 VDC
Management
Layer 3 managed
Standard
EN 50121-4
Installation
DIN-rail
Certification
UL
n/a

Download

westermo_ds_ddw-x42-series_2106_en_reve.pdf

Data sheet, DDW-x42 series, English

westermo_dd_ddw-x42.PDF

Dimensional drawing
