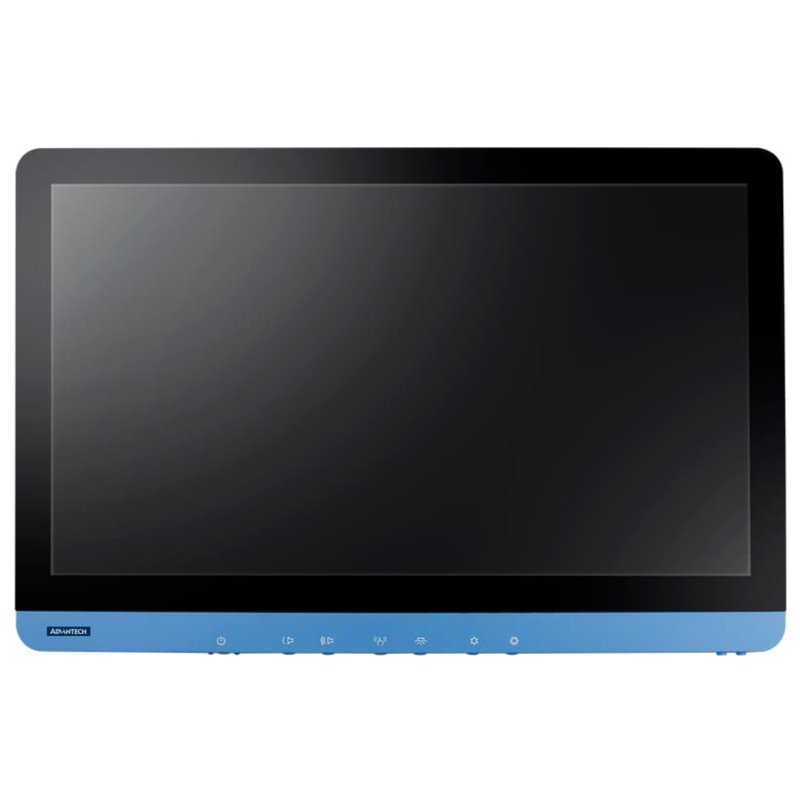

Advantech POC-624-01B110-CA
POC-624 Corei5/P-cap/w/o RAM, SSD (AC)
- 8th generation Intel® Core™ i5/i7 processor.
- 23.8" full HD display with multi-touch P-CAP control.
- Multiple I/O, including USB 3.2 Gen 2 (Type A), USB 3.2 Gen 2 (Type C) with display function, and HDMI.
- PCIe x4, mini PCIe, M.2 expansion slots for integrating add-on modules.
- Fanless design with IP54-rated protection for superior hygiene and infection control.
- Equipped with Advantech’s DeviceOn device management software.
- Optional Wi-Fi, Bluetooth, RFID, smart card reader, Li-ion battery pack, and auto-focus 5 megapixel camera.
- Optional hot-swapping battery module with up to 180Wh capacity for mobile applications.
Terms and Conditions
* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech POC-624-01B110-CA
System | Processor | Intel® Core™ i5-8365UE (6M cache, up to 4.10 GHz) |
Memory | N/A | |
Operating System (optional) | Windows 10 IoT Ent (64 bits only), Linux (supported upon request) | |
Storage | Primary Storage (default) | N/A |
Secondary Storage (optional) | N/A | |
Display | Size | 23.8" (16:9) |
Resolution | 1920 x 1080 | |
Touchscreen | Type | 10-point multi touch P-CAP (clear glass); optional AG/AR support upon request |
I/O | USB 3.2 Gen 2 (Type A) | 2 |
USB 3.2 Gen 2 (Type C) | 1 (with display function) | |
USB 2.0 Type A | 4 | |
HDMI | 1 | |
LAN isolation, 1.5KV | 2 | |
Mic-In/ Headphone-Out | 1/1 | |
COM (RS232) 1.5KV | 2 | |
Authentication Solution | RFID Reader | N/A |
Download
POC-624(A-ver)_DS(091021)20210911092649.pdf
POC-624(A-ver)_DS(091021)20210911092649.pdf
