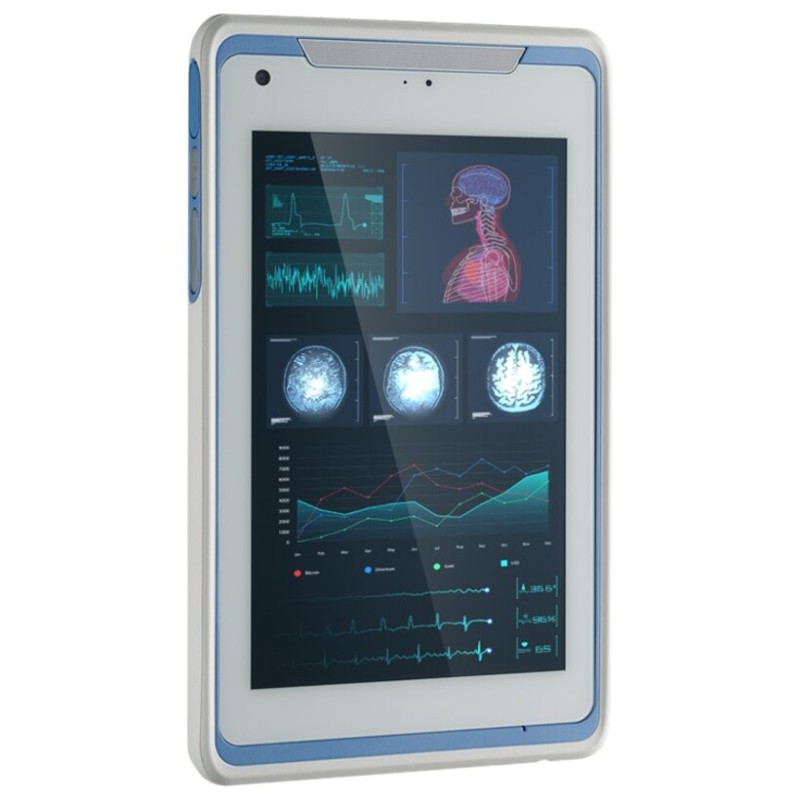

Advantech AIM-75H-200S10

€1,087

AIM75S_WIFI, none-GMS , with adaptor

Qualcomm® Snapdragon™ 660 processor with Android 10 GMS .
8" industrial-grade LCD with 1920x1200 resolution.
Corning® Gorilla® Glass 3 touchscreen supports gloved and stylus operation.
IP65-rated protection from water and dust and 4-ft drop tolerance.
Fast roaming and dual-band WLAN, BT 5.0, NFC, 3G/ 4G LTE connectivity for seamless communications.
Optional peripherals include a 1D/2D barcode scanner, LAN+COM module, and UHF RFID module.
Multi-bay charging and docking stations ensure easy installation in diverse environments.

Quantity

On enquiry

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech AIM-75H-200S10

8" Medical-Grade Tablet with Qualcomm® Snapdragon™ 660 Processor, Android 10 with GMS

System	Processor	Qualcomm® Snapdragon™ 660 octa-core 2.2 GHz
Camera	Front	5 megapixel fixed-focus camera
	Rear	8 megapixel auto-focus camera with LED flash
System	Memory	4 GB LPDDR4x
Computing System	Operating System	Android 10 with non-GMS certification Global
Display	Brightness (cd/m2)	400cd/m2
	Resolution	WUXGA 1920 x 1200
	Type	8" IPS LCD
Environment	Certifications	FCC,PTCRB, CE, CB, UL, TELEC, BSMI, NCC, CCC, SRRC, RCM, IC
	IP Rating	IP65
	Operating Temperature	0 ~ 35 °C/32 ~ 95 °F *
I/O	Buttons	1 x Power button, 2 x volume keys (up/down), 1 x programmable function key
	Extended I/O Port	1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
	Standard I/O Port	1 x USB Type-C 3.0 , 1 x combo audio jack, 1 x SIM card reader, 1 x micro SD card reader
Mechanical	Dimensions (W x H x D)	240 x 142 x 14.5 mm/9.44 x 5.59 x 0.57 in
	Weight	600 g/1.32 lb
Multimedia	Speaker	1 x Internal speakers (1.5W)
Power System	Battery	Swappable battery: 4900 mAh (minimum) 18.62 WHr Operating time: up to 12 hrs Charging time: < 3 hrs
	Voltage Input	USB Type-C: 5V/3A, 9V/2A Dock pogo: 9V/2A
Storage	eMMC	64GB
	SD Card	Micro SD (Supports up to 2 TB)
Touchscreen	Type	10-point multi-touch PCAP touch control
Sensors	Sensors	Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
Wireless Communication	WLAN/Bluetooth	IEEE 802.11 a/b/g/n/ac/k/v/r Bluetooth® v5.0
	NFC	13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica
Environment	Storage Temperature	-20 ~ 60 °C/-4 ~ 140 °F

Brand Advantech

Reference AIM-75H-200S10

Data sheet

Temperature (Operating Range): 0 ~ 35 °C/32 ~ 95 °F *

Download

AIM-75H_DS(051322)20220516085529.pdf
