Westermo AD-01
search
  • Westermo AD-01

* Images are for reference only. See product specifications (datasheet).

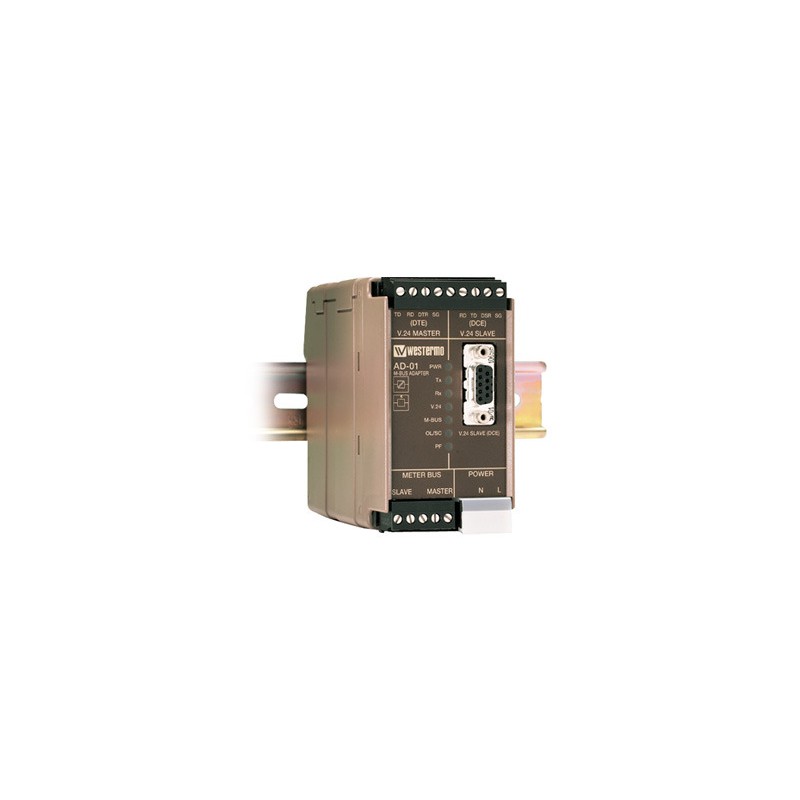

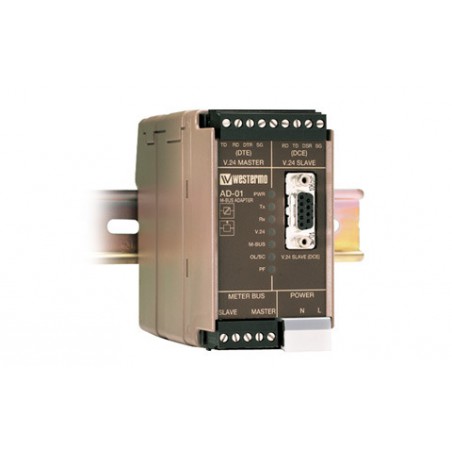

Westermo AD-01

M-Bus adapter – Protocol Converters

  • 1x M-Bus according to EN1434-3 Up to 9600 bit/s
  • 1x RS-232/V.24 up to 9600 bit/s


Terms and Conditions



To see the price, please register.

Out of stock

THIS PRODUCT IS NO LONGER SOLD.

The AD-01 is an M-Bus adapter that can operate in different communication modes. With the AD-01 it is possible to connect standard RS-232 equipment to an M-bus network. When using the AD-01 as a repeater 120 new slaves can be added to a network. In large networks the AD-01 can be used as zone controller, the RS-232 port and M-bus slave ports can then be activated/deactivated by M-Bus commands.

The AD-01 is designed for use in heavy duty industrial applications. Galvanic isolation between all interfaces guarantees communication in the worst environments. The AD-01 has been tested to meet many EMC, isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial environments.

DIP switches are used for all configuration options, parts of the M-Bus protocol is also implemented in case software configuration is needed.

The AD-01 is an industrial adapter for M-Bus communication. AD-01 is a flexible product for the building of M-Bus networks or to extend an M-bus network over a modem or ISDN.

✔ Create larger M-bus networks

• Converter between RS-232 and M-Bus
• M-Bus repeater
• M-Bus zone controller

✔ Designed for use in harsh industrial applications

• Total galvanic isolation & transient protection
• Industrial EMC, shock and vibration approval tests
• Serial connection with D-sub or screw terminal

✔ Easily configurable

• DIP switch configuration or M-Bus protocol
• 250 Individual addresses
• Data rate set by the protocol or autobaud

✔ Solution provider for metering networks

• Two M-Bus interface configure options master or slave
• Extend an M-Bus network over modem or ISDN connection
• The AD-01 master interface can drive up to 120 slave loads

Westermo
AD-01

Data sheet

Input voltage
24 VDC
Standard

Download

westermo_cad_md-series.dxf

Dimensional drawing

westermo_ds_ad-01.pdf

Data sheet, AD-01, English
