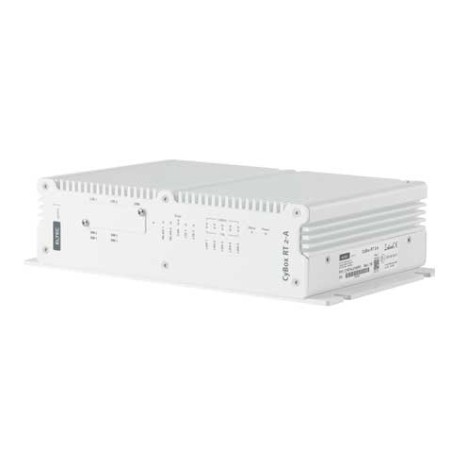

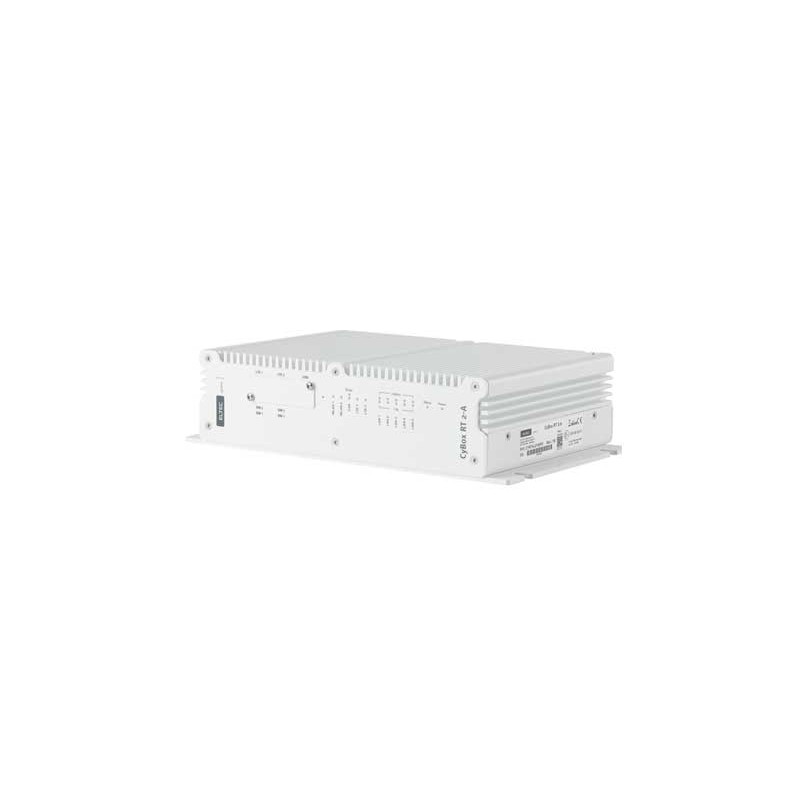

Westermo CyBox RT 2-A

Automotive Wireless Router

Automotive Wireless Router with LTE CAt-6 and WI-FI 5 .
3 x 3 MIMO .
10 x QLS antenna connectors .
5 x 1 Gb ETH, RJ45 ports.
1 x GNSS.
Power feed 12 to 24 VDC.

Terms and Conditions

To see the price, please register.

Out of stock

The CyBox RT 2-A is a robust wireless communication router for automotive applications. It offers stable, secure, and broadband LTE connections for data exchange via vehicle-to-ground connections and high-speed internet. The device hosts multiple LTE interfaces for parallel LTE channel use and thus maximized throughput, multiple Wi-Fi interfaces to connect to client devices such as mobile phones, as well as five Gigabit Ethernet ports to attach the device to a backbone network. Country-specific LTE and Wi-Fi standards are adopted for worldwide use in every type of vehicle.

There is mounting space for up to four radio modules within the CyBox RT 2-A.The radios can operate in different standards, including LTE and its predecessors. Each LTE module can be provided with up to two SIM cards for an optimal net coverage and maximum provider flexibility. The Wi-Fi interfaces allow for connecting clients at high data rates on each interface to boost network efficiency and maximize data throughput.

To enhance the CyBox RT 2-A media server capabilities with internal storage, mounting space for a M.2 solid state drive is supplied. It is attached to the CPU’s dedicated SATA port and can be used for streaming local, on-vehicle video and audio data.

The CyBox RT 2-A firmware provides a convenient management interface via a web service. Besides global setup parameters the open source software OpenWrt allows the configuration of the radio interfaces, including provider information and the login dialog, as well as the setup of the stateful firewall. The access point and router configurations as well as the management firmware can be updated remotely. Furthermore the built-in fully configurable stateful firewall and multi-VPN support with hardware-accelerated encryption ensures communication security.

✓ Mobile broadband CAT6 LTE and WLAN router

• Up to two LTE interfaces for channel-bundled WAN access
• Up to two SIM cards for each LTE interface
• Up to two IEEE802.11ac Wi-Fi interfaces

✓ High speed connectivity

• Integrated 5-port Gigabit Ethernet switch
• Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
• Up to two sockets for expansions (CAN, Wi-Fi, RS232 and more)
• Optional internal SSD storage up to 960 GB

✓ Designed and built for automotive applications

• Integrated automotive power supply 12 to 24 VDC
• Integrated GNSS
• Built-in cybersecurity
• Maintenance-free design
• -40 °C to +70 °C operating temperature
• E1 compliant

Brand Westermo

Reference CYRTA-2013V0

Download

CyBoxRT2AConfigurationManualV202010.pdf

Configuration manual, English

westermo_eltec_ds_cybox-rt-2-a.pdf
