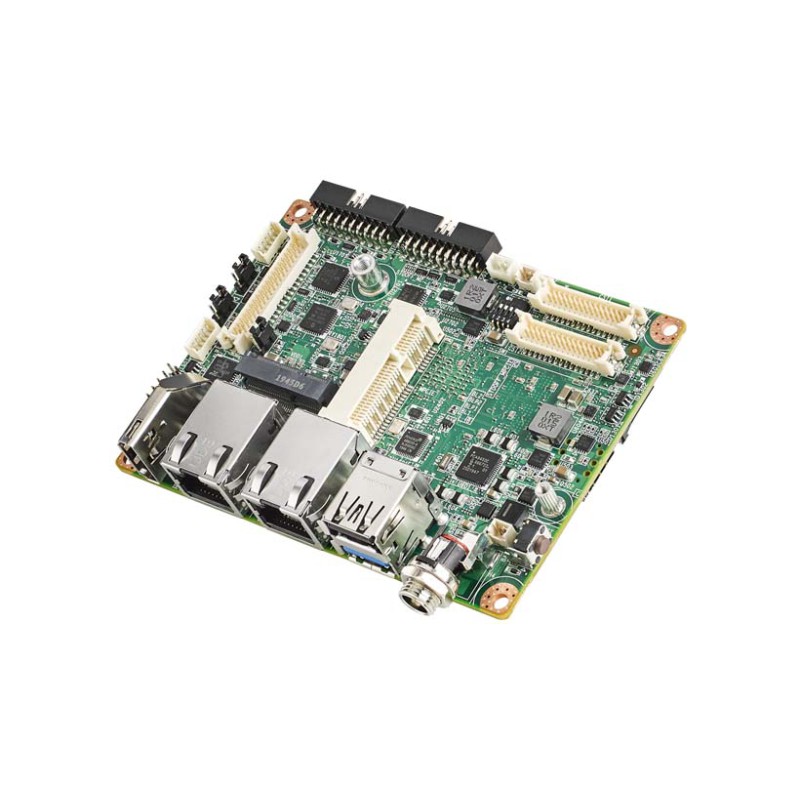

Advantech RSB-3720CQ-ACA2E

455 €

Tax excluded (incl. VAT: 551 €, 21%) In stock

A2 2.5" UIO SBC NXP i.MX8M Plus Quad, 6GB, 0~60°

NXP Arm® Cortex®-A53 i.MX8M Plus Quad/Dual up to 1.8 GHz.
Onboard LPDDR4 4 GB / 6 GB, 4000MT/s memory.
HDMI 1920x1080 at 60Hz, 1 Single or 1 Dual Channel 24 bit LVDS (or 1 4-Lane MIPI-DSI by BOM Option).
1 4-wire RS-232/422/485, 1 USB3.2 Gen1 By 1, 1 USB2.0, 1 Micro SD, 1 Mic. in / Line out.
1 mini-PCIe for 3G/4G, 1 M.2 2230 Key E Slot.
Supports Windows 10 IoT Enterprise on Arm, Yocto Linux BSP.
Support I/O Expansions boards by UIO40-Express.
Support Hailo-8™ AI accelerator module (up to 26TOPS).

Technical Documentation:

RSB-3720_DS(080122)20220801131816.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

Machine Learning Enabled 2.5” UIO40-Express SBC powered by NXP i.MX8M Plus, with an Neural Network Accelerator up to 2.3 TOPS, most compact Edge AI Solution. Integrating Eyes & Ears for AI requirements, supporting HDMI/LVDS or MIPI-DSI multi-displays and including Industrial I/O interfaces.

Processor	CPU	NXP ARM® Cortex®-A53 i.MX 8M Plus Quad
Memory	Technology	LPDDR4 4000MT/s
	Capacity	Onboard 6GB
	Flash	16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information
AI Engine	NPU	2.3 TOP/s Neural Network Performance
Graphics	HDMI	1 HDMI port, HDMI 2.0 for HD video playback, 3840x2160@30Hz
Display	LVDS/MIPI-DSI	1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS
	Graphic Engine	GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP.
	H/W Video Codec	Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/High Encoder: 1080p60 AVC/H.264, HEVC/H.265
Ethernet	Chipset	2 x NXP i.MX8M Plus integrated RGMII
Watchdog Timer	WatchDog Timer	1~6553s, default 60s, power on/off 1s
Audio	Interface	Mic-in, Line-out
I/O	USB	1 USB 3.2 Gen1 By 1, 1 USB 2.0
	CAN	1 CAN-FD
	Mini-PCIe (Internal)	1 (full-size for optional expansion modules)
	M.2	1 x M.2 1630/2230 E-Key for wireless module
	COM Port	1 (1 x RS232/ 422/ 485)
	TPM	TPM 2.0
	Reset Button	1
	UIO40-Express	1 USB3.2 Gen1 By 1, 3 USB2.0, 10 GPIO, 2 UART, 1 CANbus, 1 I2C
	Camera Input	2 4-Lane MIPI-CSI
Indicator	LED	1 Power LED, 1 Programmable LED
Environment	Operational Temperature	0~60°C
Operating System	Linux	Yocto Linux

Reference RSB-3720CQ-ACA2E

In stock 134 Items

Download

RSB-3720_DS(080122)20220801131816.pdf
