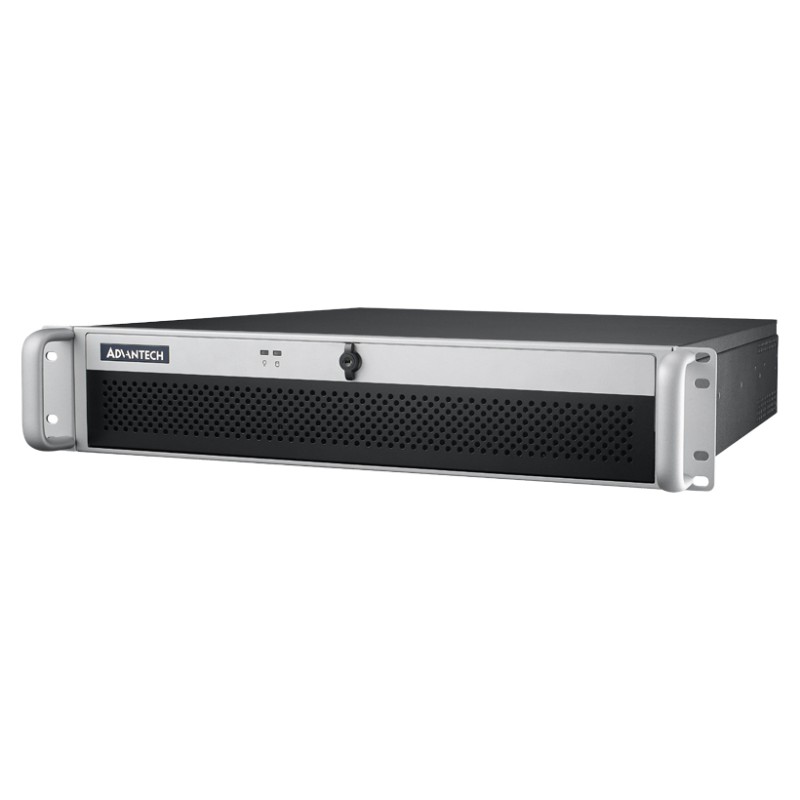

Advantech ACP-2020G-85Z

778 €

Tax excluded (incl. VAT: 942 €, 21%) In stock

ACP-2020G chassis W/850W single power supply

Support ATX and microATX form factor single processor motherboard with max 80W CPU TDP.
Special modularized card cage to provide 350W GPU card tool-less installation experience.
Two Internal 2.5" or one 3.5" drive bay and optional 2.5" hot-swap module available.
Built in 80 Plus Platinum single 850W power supply.

Technical Documentation:

ACP-2020G_DS(111021)20211118140017.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

2U Rackmount Chassis for ATX and uATX Motherboard

Form Factor	Form Factor	2U Rackmount
Drive Bay	Slim Optical Drive External	1
	3.5" Internal	1
	2.5" External	2 (hot-swap tray module as optional)
	2.5" Internal	1
Cooling	Fan	2 (8 cm / 103 CFM)
	Air Filter	Yes
Front I/O Interface	USB 2.0	2
Power	Power Consumption	850 W (Single)
Miscellaneous	LED Indicators	Power, HDD
	Rear Panel	2 x 9-pin D-Sub opening, phoenix connector
System Monitoring	System Monitoring	Chassis intrusion switch
Environment	Operating Temperature	0~40 °C
	Non-Operating Temperature	-20~60 °C
	Operating Humidity	10 ~ 85% @ 40° C, non-condensing
	Non-Operating Humidity	10 ~ 95% @ 60° C, non-condensing
	Operating Vibration (5 ~ 500 Hz)	0.5 Grms
	Non-Operating Vibration (5 ~ 500 Hz)	2 G
	Operating Shock	10 G (with 11 ms duration, half sine wave)
Mechanical	Dimension (W x H x D)	482 x 88 x 445 mm (18.96" x 3.46" x 17.52")
	Weight (Net)	11.78 kg (25.97 lb)

Reference ACP-2020G-85Z

In stock 7 Items

Download

ACP-2020G_DS(111021)20211118140017.pdf
