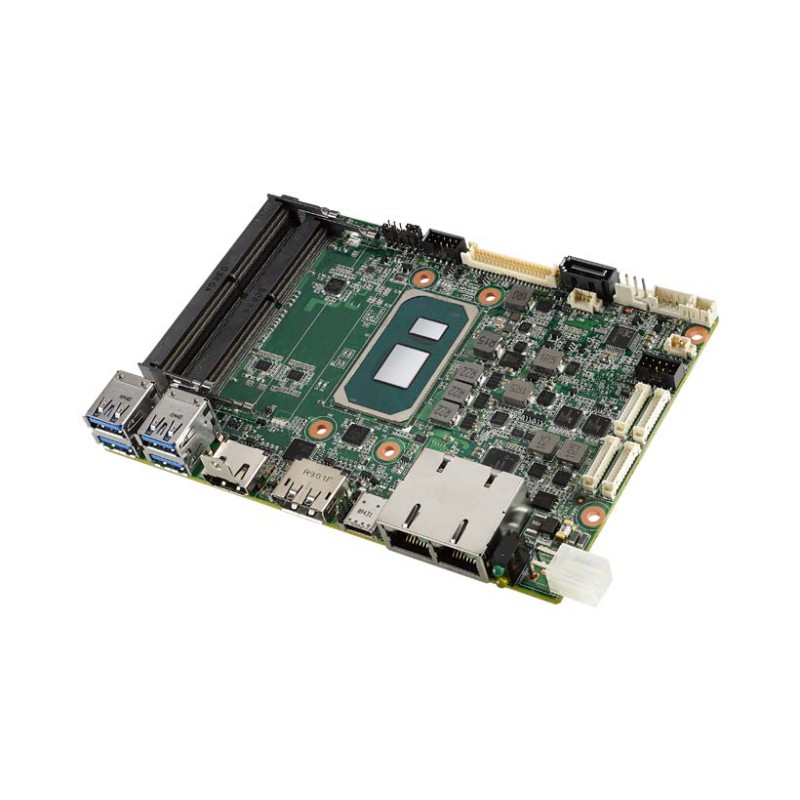

Advantech MIO-5375C7-Q4A1

1 344 €

Tax excluded (incl. VAT: 1 627 €, 21%) In stock

ASS'Y MIO-5375 A101-3 TGL-U i7-1185G7E

11th Gen. Intel® Core™ Processor with Quad/Dual Cores, TDP 15W/ 28W.
Dual Channel DDR4-3200 up to 64GB.
4 simultaneous displays: LVDS/ eDP*, HDMI, DP, USB Type-C.
2 GbE, 4 USB3.1, CAN Bus, DC-in 12-24V.
Expansion: M.2 E-Key/B-Key/M-Key (supports NVMe) , MIOe.
Supports iManager, WISE-PaaS/RMM, SW API, and Edge AI Suite.

Technical Documentation:

MIO-5375_DS(083023)20230830091610.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

11th Gen Intel® Core™ U-series (i7/i5/i3/Celeron®), 3.5" MI/O-Compact SBC, DDR4, HDMI, DP, Type-C, 48-bit LVDS/ eDP, 2GbE, M.2 B-Key/E-Key/M-Key, MIOe

Processor	CPU	Intel Core i7-1185G7E
	Max Turbo Frequency	4.4 GHz
	Base Frequency	1.8GHz
	Core Number	4/8
	CPU TDP	12W / 15W /28W
	Chipset	Intel 300 Series Chipset
	BIOS	AMI EFI 256 Mbit
Memory	Technology	DDR4 3200 MHz
	Max. Capacity	64 GB
	ECC Support	No
Graphics	Controller	Integrated GFx Intel UHD Graphics 630
	Max. Frequency	400MHz
Rear I/O	HDMI / DisplayPort*	1/1
	USB Type-C	1 x USB3.2 Gen. 2x2 20Gbps
	USB 3.2	4 x USB3.2 Gen. 2x1 10Gbps
Ethernet	Controller	2 x GbE, LAN1: Intel i219LM, LAN2: Intel i210AT/IT
Internal I/O	SATA	1 x SATA GenIII 6.0 Gbps
	USB	2 x USB 2.0
	GPIO	8-bit general purpose input/output
	CAN bus	1
	FAN	1 x 4-Wire Smart Fan, 12V@2A
Expansion	M.2	1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042)
Power	Power Supply Voltage	Vin: 12VDC~24VDC
	Power Type	AT / ATX
Environment	Temperature (Operating)	0 ~ 60° C
	Relative Humidity	40° C @ 95%, Non-Condensing, operating; 60° C @ 95%, Non-Condensing, non-operating
	Vibration Resistance	3.5 Grms
Certification	EMC	CE, FCC
Mechanical	Dimensions	146 x 102 mm (5.75" x 4.02")
Operating System	Ubuntu	V

Reference MIO-5375C7-Q4A1

In stock 32 Items

Download

MIO-5375_DS(083023)20230830091610.pdf
