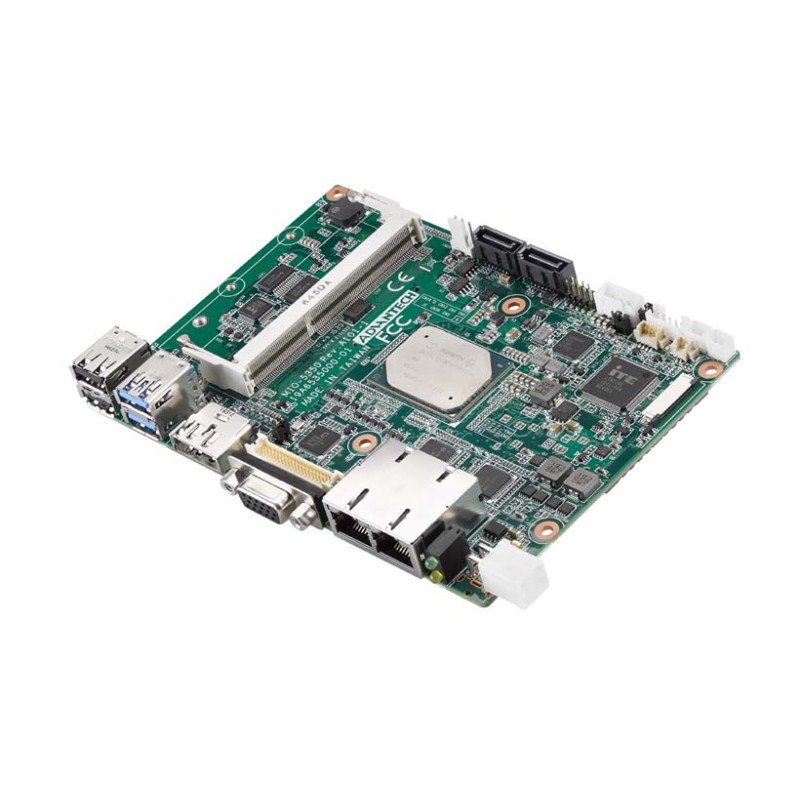

Advantech MIO-5350N-S2A2

406 €

Tax excluded (incl. VAT: 492 €, 21%) In stock

Intel Apolo Lake N4200 F1 1.1GHz, LVDS 3.5" MIO

Intel® Pentium N4200 & Celeron N3350, Atom™E3950, E3940, E3930,DDR3L 1867 MHz, up to 8GB.
Triple display: VGA+LVDS/eDP+HDMI/DP*.
2 Intel i210 GbE, rich I/O: 4COM, 2 SATA, 2 USB 3.0, SMBus/I2C, GPIO M.2 E Key, full-size mSATA, MIOe.
Supports iManager, SUSI APIs, WISE-DeviceOn and Edge AI Suite.

Technical Documentation:

MIO-5350_DS(110823)20231108104139.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

Intel® Pentium N4200 Celeron N3350 & Atom™E3950/E3940/E3930, 3.5" MI/O-Compact SBC, DDR3L, VGA, HDMI/DP*, 48-bit LVDS/eDP*, 2GbE, mSATA, iManager, M.2 E Key, *TPM 2.0, MIOe

Processor	CPU	Intel Pentium N4200
	Core Number	4
	Base Frequency	1.1 (Quad-Core)
	Burst Frequency	2.5 GHz
	L2 Cache	2 MB
	BIOS	AMI UEFI BIOS at 64 Mb
Memory	Technology	DDR3L 1867MHz
	Max. Capacity	8 GB
	Socket	1 x 204-pin SODIMM
Display	Controller	Intel Gen9 Graphic engine
	Graphic Features	DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), VP9, MVC
	VGA	Up to 1920 x 1200
	LVDS	48 bit LVDS up to 1.4b (3840 x 2160 @ 30Hz), Supports 3.3/5/12V for VDD power, 5/12V for inverter
	eDP*	v1.4 4096 x 2160 @ 60Hz
	HDMI / DisplayPort*	HDMI 3840 x 2160 @ 30Hz/ DP1.2a (4096 x 2160 @ 60Hz)
	Multi-Display	VGA, HDMI/DP, LVDS/eDP
Ethernet	Speed	10/ 100/ 1000 Mbps
	Controller	Intel i210
	Connector	2 x RJ-45
Audio	CODEC	Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in
	Amplifier	Optional via MIOe
Watchdog Timer		Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds
Storage	SATA	2 (2nd SATA is by request), up to 3Gb/s (300 MB/s)
	mSATA	1 x Full-size
Rear I/O	Ethernet	2 (10/100/1000Mbps)
	VGA	1
	HDMI / DisplayPort*	1
	USB 2.0	2
	USB 3.0	2
	LED	Power, HDD
	DC Jack*	1
Internal I/O	Serial	2 x RS-232 from COM1/2, 2 x RS-232/422/485 from COM3/4 with auto flow control (ESD protection: Air gap ±15kV, Contact ±8kV)
	USB2.0	2
	I2C	1 (Shared with SMBus pin)
	SMBus	1
	GPIO	8-bit (5V tolerance)
Security	TPM	TPM2.0 (Support by request)
Expansion	Mini PCIe	M.2 E Key
	MIOe	SMBus, 3 x USB2.0, LPC, 1 x PCIe x1, line out, DisplayPort*, +5 Vsb/+12 Vsb power, Power On, Rest
Power	Power Type	Single 12V DC power input
	Power Supply Voltage	12V ± 10%
	Power Consumption (Typical)	0.4A @ 12V (4.80W)
	Power Consumption (Max)	1.26A @ 12V (15.12W)
	Power Management	ACPI
	Battery	Lithium 3 V / 210 mAH
Environment	Operational Temperature	0 ~ 60° C (Operational humidity: 40° C @ 95% RH Non-Condensing)
	Non-Operational Temperature	-40° C ~ 85° C and 60° C @ 95% RH non-condensing
Physical	Dimension (mm)	146 x 102 mm (5.7" x 4"), same as 3.5"
	Weight	0.5kg (1.1lb), weight of total package
	Total Height	Top Side: 19 mm; Bottom Side: 6.8 mm; PCB: 1.6 mm

Reference MIO-5350N-S2A2

In stock 15 Items
