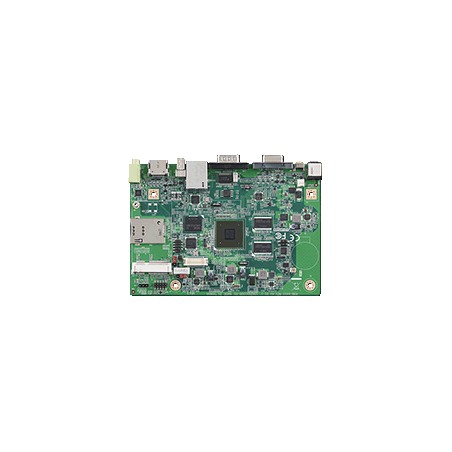

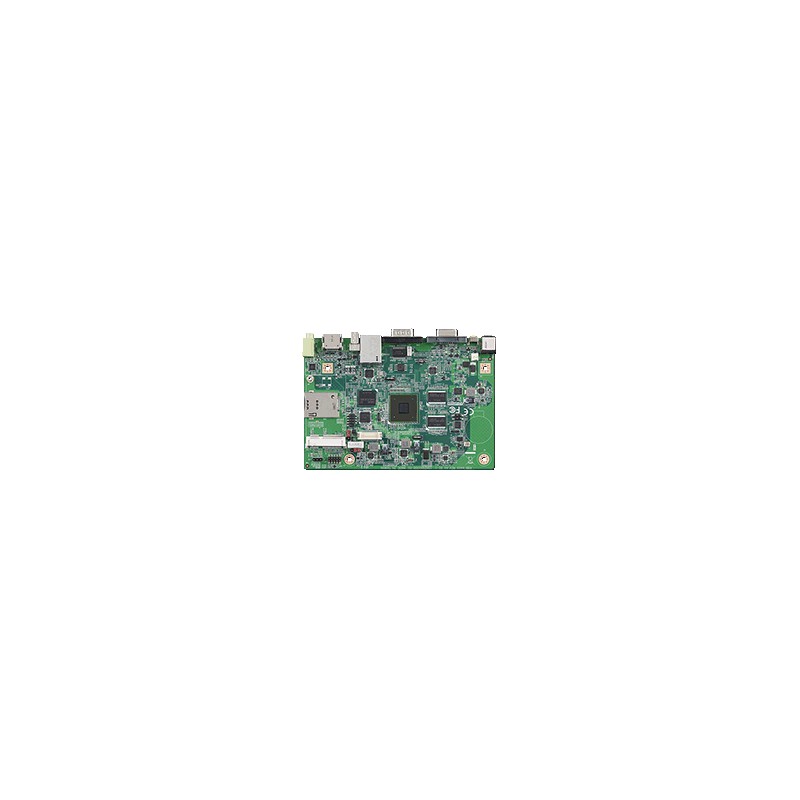

Advantech RSB-4410CD-MDA1E
search
  • Advantech RSB-4410CD-MDA1E
  • Advantech RSB-4410CD-MDA1E
  • Advantech RSB-4410CD-MDA1E
  • Advantech RSB-4410CD-MDA1E

Advantech RSB-4410CD-MDA1E

€284
Tax excluded

NXP i.MX6 Dual Core 1 GHz/1GB DDR 0~60C

  • NXP Cortex-A9 i.MX6 Dual/Quad core 1.0 GHz.
  • On-board DDR3 1 GB & 4 GB eMMC NAND Flash.
  • Supports full HD 1080P H/W video codec engine.
  • Networking capability of Giga LAN, WiFi and HSPA.
  • Low power consumption.
  • Supports Linux and Android BSP.
Quantity
On enquiry



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech RSB-4410CD-MDA1E


RSB-4410 is an Advantech RISC 3.5" SBC powered by Freescale ARM®  encoding/decoding, and also support Gigabit Ethernet for networking. RSB- BSP for customer building up their own application software.
Form FactorForm Factor3.5" SBC
ProcessorCPUFreescale i.MX6 Dual Cortex-A9 1GHz
MemoryTechnologyDDR3 1066 MHz
CapacityOn-board DDR3 1 GB
Flash4 GB eMMC for O.S. and 4 MB NOR Flash for Advantech boot loader
DisplayLVDS18/24-bit single channel LVDS
HDMI1920 x 1080
VGA1
Graphic Engine2 IPUs. OpenGL ES 2.0 for 3D, BitBlt for 2D and OpenVG 1.1
H/W Video CodecDecoder: MPEG-4 ASP, H.264 HP, H.263, MPEG-2 MP, MJPEG BP Encoder: MPEG-4 SP, H.264 BP, H.263, MJPEG BP
EthernetChipsetFreescale i.MX6 integrated RGMII
RTCRTCYes
Watchdog TimerWatchDog TimerControl by SW
I/OPCIe1 PCIe 1 Lan
USB1 X USB Type A and 2 x USB pin header
Audio1x Line-out
SDIO1 SD card slot
Serial port1 x 4 wires RS232,DB9 and 2 x 2 wires RS232, pin header
PowerPower Supply Voltage+12V
CertificationEMCCE/FCC Class B
Advantech
RSB-4410CD-MDA1E

Download

RSB-4410_DS(070721)20210719163037.pdf

RSB-4410_DS(070721)20210719163037.pdf
