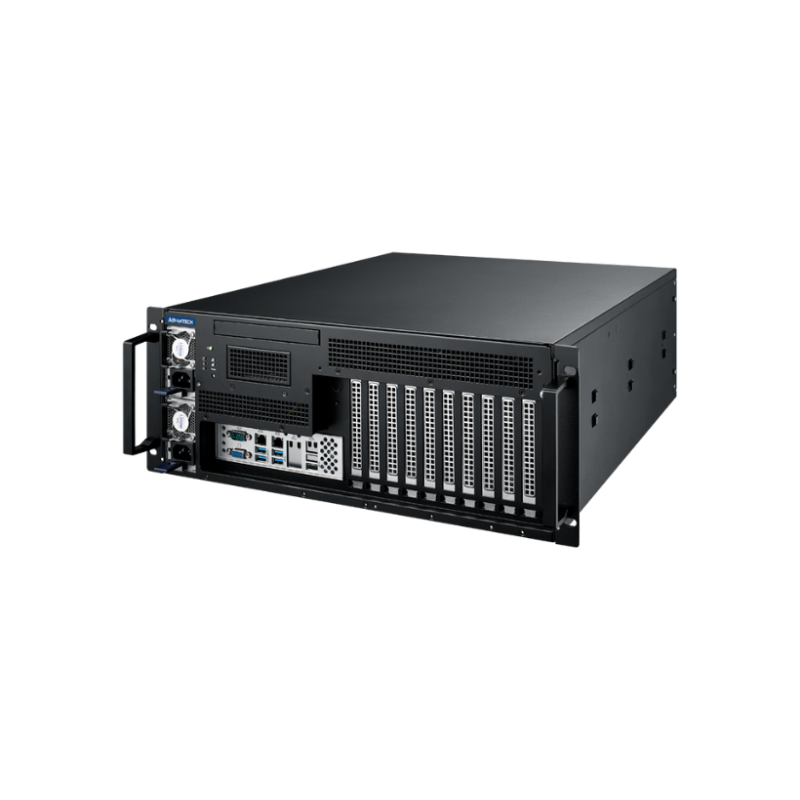

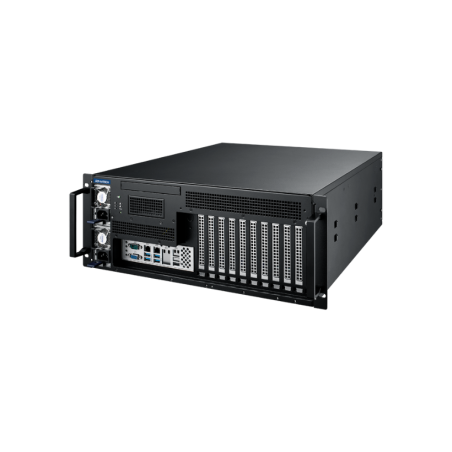

Advantech HPC-7420-12ZX
4U Chassis for E-EATX,EATX,1+0 1200W RPS
- Short depth 4U rackmount chassis support EE-ATX/EATX/ATX server board.
- Industry-grade chassis with front access feature.
- 11 PCIe expansion slots support.
- Wide environment temp support, 0 ~ 50 °C.
- 2 hot-swappable 2.5" SATA/SAS/SSD drive bays with slim/ultra slim ODD in option.
- Rear-accessible system fan without opening top cover for easy maintenance.
- Fan filter included for harsh environment need.
Terms and Conditions
* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech HPC-7420-12ZX
Disk Drive Bay | Slim/Ultra Slim ODD | 1 |
2.5" Front-Accessible | 2 (option) | |
3.5" Internal | 2 (1 can to 2.5" HDD bracket) | |
Cooling | Fan | 3 (12cm/238CFM) |
Air Filter | Yes | |
Miscellaneous | LED Indicators | Power, HDD, LAN1, LAN2, System Information |
Rear Panel | Two USB reserved ports | |
Expansion Slot | FHFL PCIe | Up to 11 |
Environment | Operating Temperature | 0 ~ 50°C (with wide-temp peripherals) |
Non-operating Temperature | -40 ~ 70 °C (-40 ~ 156 °F) | |
Operating Humidity | 10 ~ 95% @ 50°C, non-condensing | |
Non-operating Humidity | 10 ~ 95% @ 70°C, non-condensing | |
Operating Vibration (5 ~ 500 Hz) | 0.3 Grms | |
Non-Operating Vibration (5 ~ 500 Hz) | 2 Grms | |
Operating Shock | 10 G (with 11 ms duration, half sine wave) | |
Physical Characteristics | Dimensions (W x H x D) | 438 x 177 x 450 mm ( 17.24" x 6.97" x 17.7") |
Weight | 16 kg | |
Power Supply | Power Supply | 1200 (1+0 non-redundancy) |
Form Factor | Board | EEATX/EATX/ATX MB |
Certification | EMC | CE/FCC |
Download
HPC-7420_DS(111820)20201119143456.pdf
HPC-7420_DS(111820)20201119143456.pdf
