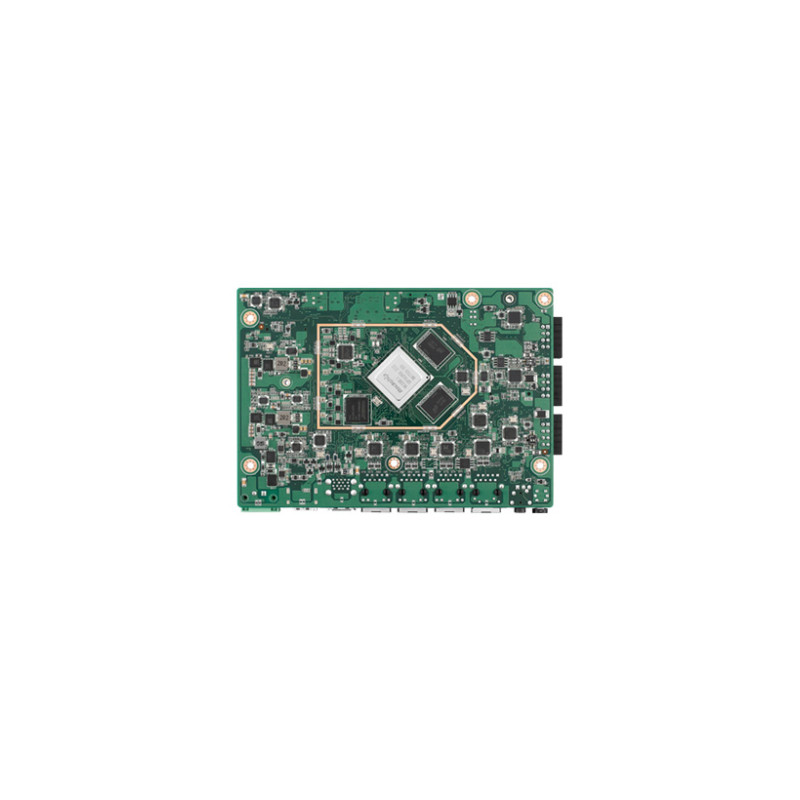

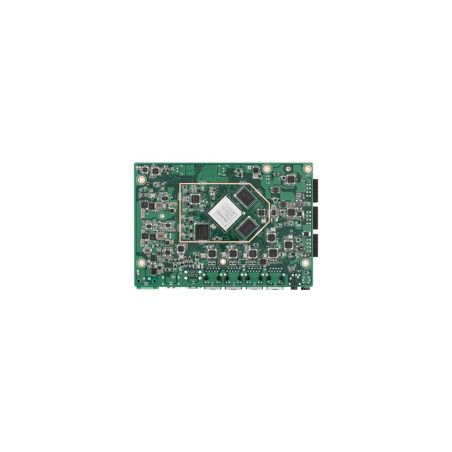

Advantech ASR-A501-M0A1

Name: Advantech ASR-A501-M0A1
Brand: Advantech
SKU: ASR-A501-M0A1
Price: 452 EUR
Availability: InStock

452 €

Tax excluded (incl. VAT: 547 €, 21%) In stock

RK3588 8GB DDR, 64GB EMMC, 0~70°C

Based on Rockchip RK3588 Arm Quad Cortex-A76 2.4GHz and Quad Cortex-A55 1.8 GHz, and with build in 6 TOPS NPU.
Dedicated MCU controller for CAN-FD guarantee CAN-FD performance.
Onboard 8/16GB LPDDR4 memory and 64/32GB eMMC.
Supports 8K @ 60 fps H.265/VP9 video decoding and 8K @ 30 fps H.265/H.264 video encoding.
Supports 2 x PCIE3.0 1lane, 2 x MIPI-CSI, UART, 2 x I2C, 1 x SPI, 1 x USB by 120pins B2B Connetor.
Provides 1 x 2.5GbE, 3 x GbE, 2 x USB3.0, 2 x CAN FD, 2 x RS-232/485, 2 x RS-485, 1 x HDMI2.0, 1 x Line out/Mic in.
12-24V DC In, Contack 8KV, air 15KV ESD Protection.
Provides a M.2 E Key with PCIE 2.1, USB 2.0 signal and a M.2 B Key with PCIE 2.1/SATA, USB 2.0 signal.
Supports Linux Debian12 and Android14, ROS2 supported， Realtime supported by AIM-Linux services.

Technical Documentation:

ASR-A501_DS(100725)20251007102918.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

Advantech ASR-A501, based on Rockchip RK3588 Cortex®-A76 and A55 ， is a 4'' industrial SBC, OS support Debian, Android， ROS2 ，etherCAT supported，realtime 100us. Idea for application as AMR, in-vehicle control, or human droid，robot dog.

Processor	CPU	Rockchip RK3588 Arm Quad Cortex-A76 2.4 GHz and Quad Cortex-A55 1.8 GHz
	NPU	Up to 6 Tops. Supports: TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, Android NN, etc.
Memory	Technology	LPDDR4 4224MT/s
	Capacity	Onboard 8 GB, Max. capacity 32 GB
	Flash	64 GB eMMC NAND Flash for OS and boot loader
Display	LVDS	-
	HDMI	Up to 3840 x 2160 at 30Hz
	H/W Video Codec	Decoder: H.265/VP9 8K @ 60 fps, H.264 8K @ 30 fps, H.263 ,VC-1, VP8, MVC, AV1, MPEG-4/2/1
Ethernet	Chipset	2 x RTL8211FSI, 1 x RTL8119I, 1 x Intel I226
	Speed	1 x 2.5Gbps, 3 x 10/100/1000 Mbps
Watchdog Timer	WatchDog Timer	1~6553s, default 60s, power on/off 1s
I/O	USB	2 x USB 3.0
	Audio	Line-Out, Mic-In
	COM Port	4
	I2C Bus	2 x I2C, through 120-pin B2B connector
	Camera Input	2 x MIPI-CSI x 4lane, through 120-pin B2B connector
	Button	3
Expansion	M.2	2x, 1x M.2 2230 E key and 1x M.2 3052 B key
	SD Socket	1 Micro SD Slot
	SIM Socket	1x Nano SIM Socket
Power	Connector	2-pin terminal block
	Power Supply Voltage	12 VDC ~ 24 VDC
	Power Consumption	Typical(Idle mode) 5.65W@12V, Max.(Full loading) 11.68W@12V
	Power Management	AT, ATX
Environment	Operational Temperature	0° C ~ 70° C
Operating System	Linux	Linux Debian12 and Android14
Certification	EMC	CE/FCC Class B

Reference ASR-A501-M0A1

In stock 19 Items

Download

ASR-A501_DS(100725)20251007102918.pdf
