* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file AIR-410_DS(101425)20251020103711.pdf
Terms and Conditions
| Processor | Base Frequency | 4.3 GHz |
| CPU | AMD Ryzen™ 5 8645HS | |
| Max Speed | 5.1 GHz | |
| L3 Cache | 16MB~64MB | |
| Core Number | 6 | |
| TDP | 45W | |
| CPU TDP | 54W | |
| BIOS | AMI UEFI 256 Mbit | |
| Memory | Technology | 2 x DDR4 260-pin SO-DIMM |
| Socket | 2 x 262 pin DDR5 SO-DIMM | |
| Ethernet | LAN1/2/3/4 | 10/100/1000/2500 Mbps Intel i226-LM GbE, support Wake On Lan |
| Others | Watchdog timer | 255 levels timer interval, setup by software |
| TPM | TPM 2.0 | |
| I/O | COM Port | 3 x RS-232 port(COM2/3/4), 1x RS-232/485 (COM1, by jumper) |
| USB 3.2 | 4 | |
| USB2.0 | 2 | |
| I/O Interface | HDMI | 1 |
| DP1.2 | 1 | |
| Audio | 1 x Line-out | |
| Expansion | M.2 | 1x 2280 M key |
| M.2 B-Key | 1 x B-Key 2242/3042/3052 with Nano-SIM | |
| M.2 E-Key | 1 x E-Key 2230 | |
| Add-on Card Slot | One PCIe x16 (signal PCIe x8), Max. card size (W x H x D): 60 x 130 x 305 mm#3 | |
| Storage | SATA | 2 x 2.5" SATAIII Swappble SSD (Max Height 7mm) |
| Software Support | Microsoft Windows | Windows Win11 LTSC |
| Linux | Ubuntu 24.04 | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Votage | 100-240V AC | |
| Environment | Temperature (Operating) | 0 ~ 45° C |
| Temperature (Storage) | - 40 ~ 85° C | |
| Relative Humidity | 95% @ 40° C (non-condensing) | |
| EMC | CE/FCC Class B, CCC, BSMI | |
| Safety Certifications | CB, UL, CCC, BSMI |
After placing your order, you will receive an email with a proforma invoice that details the most advantageous shipping cost. With us, you won't pay any hidden fees; we do not incorporate shipping costs into the product price. We will also provide you with an estimated delivery date. By confirming the proforma invoice, you give us the green light to dispatch your order and agree to our delivery terms.
We are proud certified partners of brands like Advantech, Westermo, Elproma, and Korenix. This ensures that you are purchasing quality and verified products directly from a trusted supplier. Visit the link to verify our collaboration directly on the official website.
Our team has extensive experience in designing and implementing large industrial projects. We have already collaborated with significant industrial enterprises, metro systems, and railway transport. If you are planning a larger project or need consultation, we are here for you! Our specialists are happy to assist you and prepare an offer tailored precisely to your needs.
Do you have questions or need quick assistance? Our customer service is ready to respond as quickly as possible and provide you with all the information you need.
We believe in the quality of our products and services. If for any reason you are not satisfied, we are happy to help you find a solution.

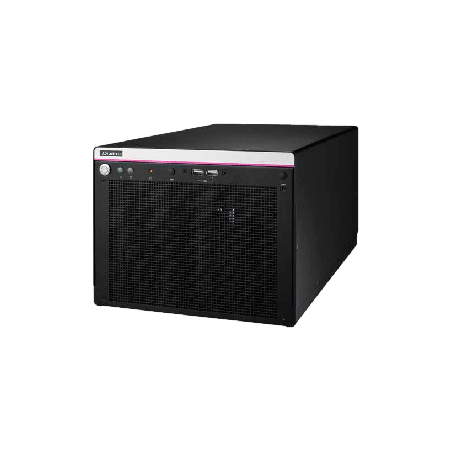

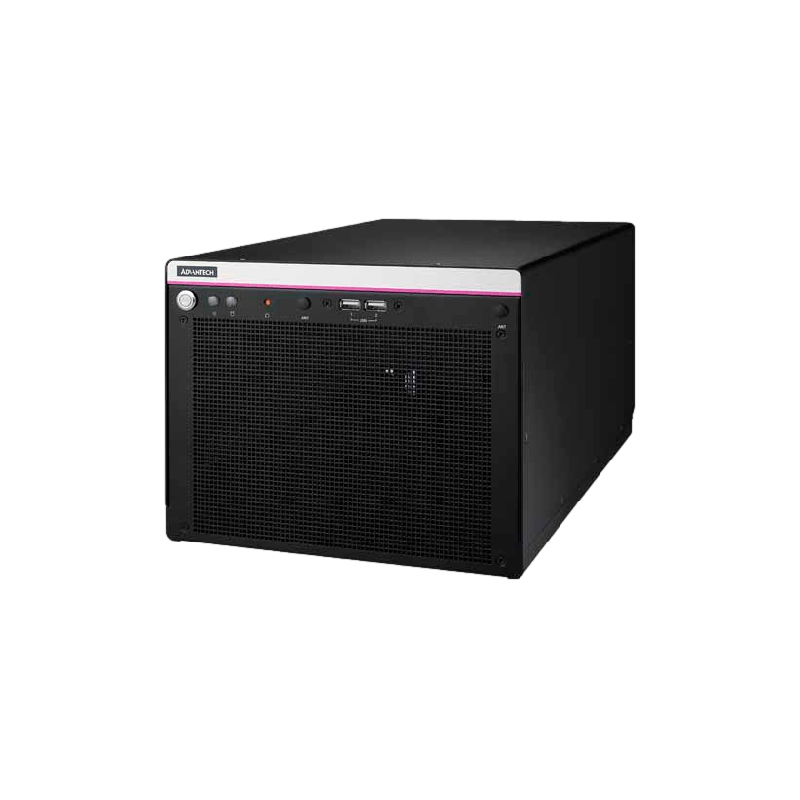

AMD Ryzen 8845HS Edge AI system, TW Ryzen 8040 processor up to 54W with 39TOPS AI computing (CPU+iGPU+iNPU). Dual channel memory up to 96GB DDR5 5600MT/s. 1x PCIe x16 Slot to support 550W GPU, Power supply 850W built-in. Edge AI SDK AI toolkit, OS Windows 11 LTSC & Ubuntu 24.04 LTS compatible.
AMD Ryzen 8845HS Edge AI system, TW Ryzen 8040 processor up to 54W with 39TOPS AI computing (CPU+iGPU+iNPU). Dual channel memory up to 96GB DDR5 5600MT/s. 1x PCIe x16 Slot to support 550W GPU, Power supply 850W built-in. Edge AI SDK AI toolkit, OS Windows 11 LTSC & Ubuntu 24.04 LTS compatible.
