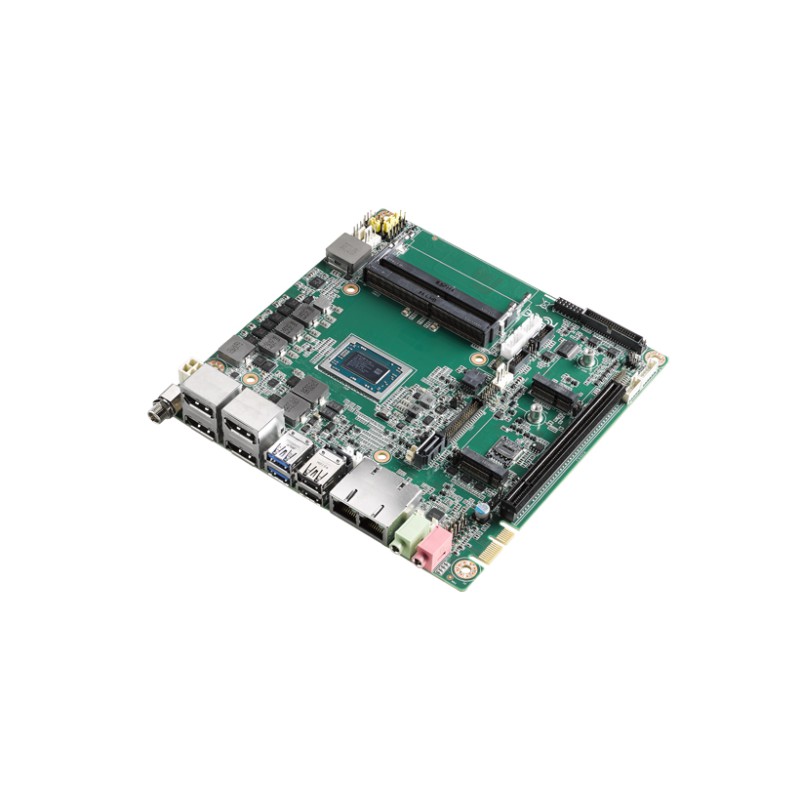

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file AIMB-228_DS(082820)20200915115945.pdf
Terms and Conditions
| Processor | CPU | AMD Ryzen™ Embedded V1000/R1000 Dual and Quad Core APUs |
| Max Speed | 3.8GHz | |
| L2 Cache | 1MB | |
| BIOS | AMI 128Mbit SPI | |
| Memory | Technology | DDR4 2666MHz SO-DIMM |
| Max. Capacity | Max. up to 32 GB (16 GB per SODIMM) | |
| Socket | 2 x 260 Pin DDR4 SO-DIMM | |
| Display | DP/HDMI | 3DP |
| Controller | AMD Integrated Vega GCN | |
| Graphic Engine | DirectX10, OpenGL 2.0, H.264 and VC1 support | |
| Graphic Memory | Share with system memory up to 128 MB | |
| LCD (TTL/LVDS/eDP) | LVDS: Dual channel 48-bit up to 1920 x 1200 | |
| Multiple Display | Triple | |
| Expansion | PCI Express x 8 | 1 |
| Slot Type | 1 | |
| Ethernet | Controller | GbE1: Realtek RTL8111E; GbE2: Realtek RTL8111E |
| Speed | 10/ 100/ 1000 Mbps | |
| Connector | RJ45 x 2 | |
| Audio | Audio Interface | HD Audio |
| CODEC | Realtek ALC888S, High Definition Audio (HD) | |
| Connector | 2 (Line out, Mic In) | |
| Watchdog Timer | WatchDog Timer | Yes |
| Storage | SATA | 2 x SATA III (Max. Data Transfer Rate 600 MB/s) |
| I/O | USB3.0/2.0 | 2/2 |
| GPIO | 1, 16-bit GPIO | |
| COM Port | 6 (5 x RS232,1 x RS232/422/485; 1 support CCtalk, 1 support TTL) | |
| Power | Power Type | ATX, AT |
| Connector | DC jack, internal 4pin | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -40~ 85° C | |
| Vibration Resistance | 3.5 Grms (non OP) | |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) |
| Weight | 1.04 kg (1.72 lb), weight of total package | |
| Construction | with CPU cooler design | |
| Operating System | Microsoft Windows | Yes |
| Linux | Yes | |
| SUSIAccess | Yes | |
| Certification | EMC | CE, FCC |
