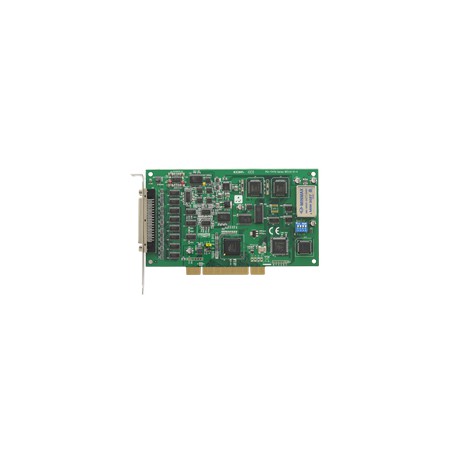

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file PCI-1747U20150714145406.pdf
Terms and Conditions
| Analog Input | Channels | 64 |
| Input Range | ±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V | |
| Resolution(Bits) | 16-bit | |
| Sampling Rates(S/s) | 250 KS/s | |
| General | Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
