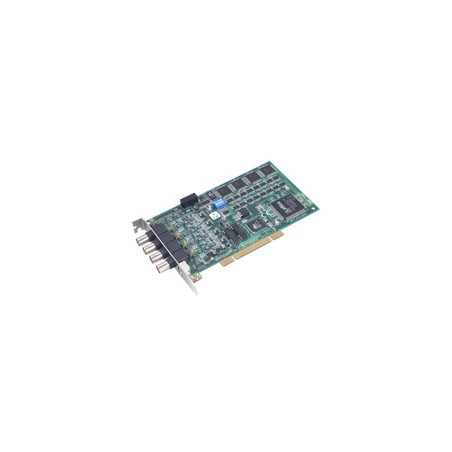

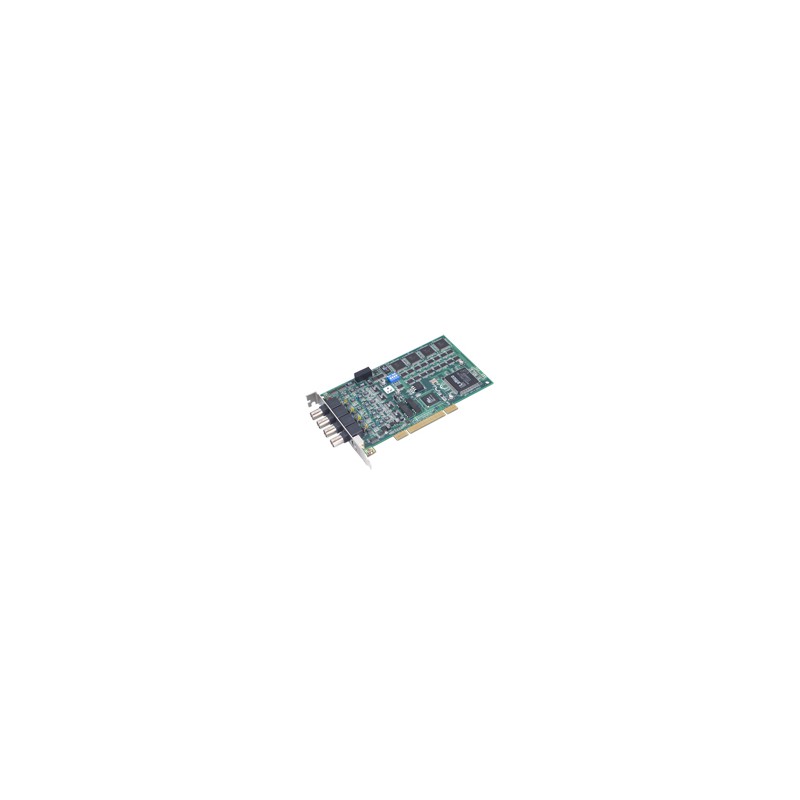

Advantech PCI-1714UL-BE

Name: Advantech PCI-1714UL-BE
Brand: Advantech
SKU: PCI-1714UL-BE
Price: 1217 EUR
Availability: InStock

€1,217

Tax excluded In stock

10 MS/s, 12-bit, 4-ch Simultaneous Analog Input PCI Card

4 single-ended analog input channels.
12-bit A/D converter, with up to 30 MHz sampling rate.
Multiple A/D triggering modes.
Onboard FIFO memory 32,768 samples.
4 A/D converters simultaneously sampling.
Programmable gain.
Programmable pacer/counter.
BoardID™ switch.
Universal PCI Bus (supports 3.3 V or 5 V PCI bus signals).

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech PCI-1714UL-BE

PCI-1714U/PCI-1714UL and PCIE-1744 are advanced high-performance data acquisition cards based on the PCI/PCIe bus. With a large FIFO of 32,768 for each channel, the maximum sampling rate of PCI-1714U/PCIE-1744 can get up to 30 MS/s, on each channel, with an emphasis on continuous, non-stop, high-speed, streaming data of samples to host memory. The low-cost PCI-1714UL offers 10 MS/s on each channel at a stable rate, and has also been equipped with a universal PCI interface.

Analog Input	Channels	4
	Input Range	±0.5 V, ±1 V, ±2.5 V, ±5 V
	Resolution(Bits)	12-bit
	Sampling Rates(S/s)	10 MS/s (per channel)
General	Programming Language	C#,C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt

Brand Advantech

Reference PCI-1714UL-BE

In stock 3 Items

Download

PCI-1714U20150714145351.pdf
