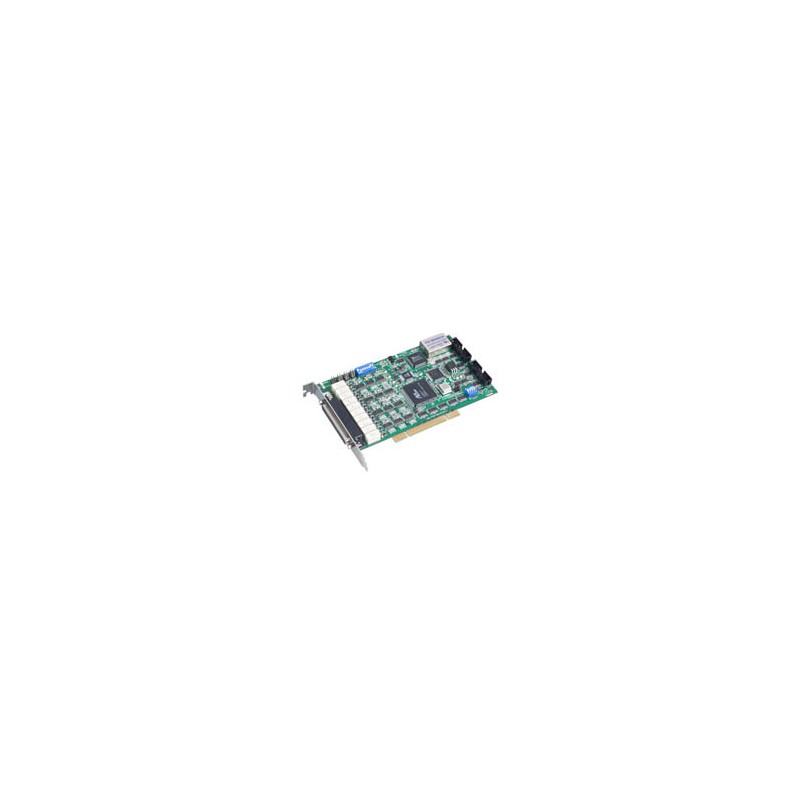

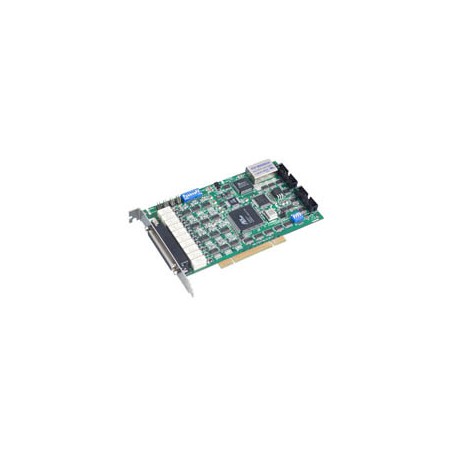

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file PCI-1723_1727U_DS(122021)20211220172150.pdf
Terms and Conditions
| Analog Output | Channels | 12 |
| Output Ranges | ±10 V, 0~20 mA | |
| Resolution | 14-bit | |
| Update Rate(S/s) | Static update | |
| Digital Input | Channels | 16 (TTL) |
| Digital Output | Channels | 16 (TTL) |
| General | Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
