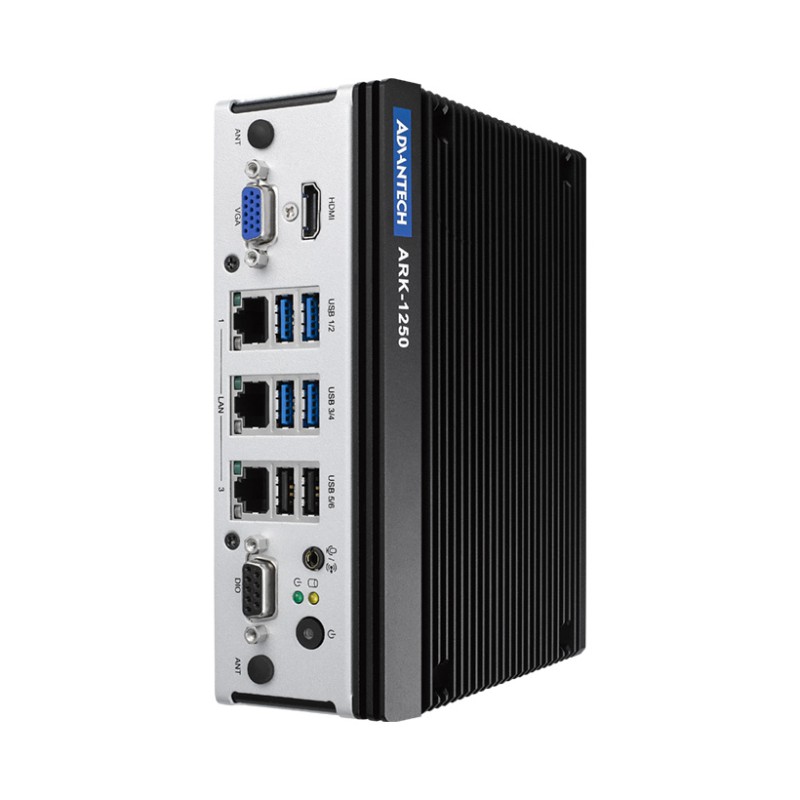

Advantech ARK-1250L-U2A1

Name: Advantech ARK-1250L-U2A1
Brand: Advantech
SKU: ARK-1250L-U2A1
Price: 1095 EUR
Availability: InStock

€1,095

Tax excluded In stock

Intel Core i3-1115G4E HDMI+VGA+3GbE+4C

Intel 11th Gen. Core i5/i3.
DIN-Rail system with essential I/O ports on front-side bezel.
3 x Intel GbE, 4x RS-232/422/485.
3 x USB 3.2 and 3 x USB 2.0, dual independent displays with one 4K HDMI and one VGA.
3 Expansion: M.2 E-Key 2230, M.2 B-Key 2280, 1 x Full-size mSATA share with mPCIe slot.
mSATA and 1 x 2.5" SATA storage device.
12V ~ 24V wide range power input.
-40 ~ 60 °C extended operating temperature.
WISE-DeviceOn supported for quick AI deployment at scale.

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech ARK-1250L-U2A1

Processor	CPU	Intel Core i3-1115G4E
	Frequency	2.2GHz
	Core Number	2
	BIOS	AMI EFI 256 Mbit
Memory	Technology	DDR4 3200 MHz
	Max. Capacity	64 GB
	Socket	2 x 260-pin SO-DIMM
Graphics	HDMI	4096 x 2160 @ 60Hz
	VGA	1920x1200@ 60Hz
	Dual Display	Yes, VGA + HDMI
Ethernet	LAN1	10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
	LAN2	10/100/1000 Mbps Intel i219GbE, support Wake On LAN
	LAN3	10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
Audio	Interface	Realtek ALC888S, High Definition Audio, Line-out, Mic-in
I/O Interface	Serial Port	4 x RS-232/422/485 port with auto flow control
	GPIO	8 bit GPIO
Expansion	Mini PCI Express	1 x Full-size
Storage	2.5" HDD/SSD	1 x 2.5" SATAIII Drive bay (compatible with 15mm height)
	mSATA	1 x Full-size (support either mSATA or miniPCIe)
Other	Watchdog timer	255 levels timer interval, setup by software
Software Support	Microsoft Windows	Windows 10 Enterprice
	Linux	Support by project
Operating System	Ubuntu	V
Power Requirement	Power Type	AT/ATX
	Input Voltage	12 ~ 24 VDC
	Power Adapter	AC to DC 19V/4.74A 90W (Default)
Mechanical	Construction	Aluminum housing
	Mounting	DIN-rail/Wall Mount
	Dimensions	60 x 173 x 141 mm (2.36 x 6.73 x 5.55 in)
	Weight	1.5 kg (3.3lb)
Environment	Temperature (operating)	-40~60°C
	Temperature (storage)	- 40 ~ 85° C
	Relative Humidity	95% @ 40° C (non-condensing)
	Vibration during Operation	With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Certifications	Safety	UL, CB, CCC
Environment	Shock Protection	With SSD/mSATA: 30G
Certifications	EMC	CE, FCC Class B
I/O Interface	USB	2 x USB3.2, 2 x USB2.0, 1 x internal USB2.0 for security dongle
	Optional I/O	1 x CANBus 2.0 (DB9 connector)
Expansion	M.2	1 x M2. 2230 E key and 1 x M.2 2280 B key with nano SIM holder
Others	TPM	TPM 2.0 (by optional AMO-I029)
Power Consumption	Typical	18W
	Maximum	30.6W

Brand Advantech

Reference ARK-1250L-U2A1

In stock 77 Items

Download

ARK-1250L_DS(102722)20221027083754.pdf

ARK-1250L_DS(120123)20231207171501.pdf

ARK-1250.pdf
