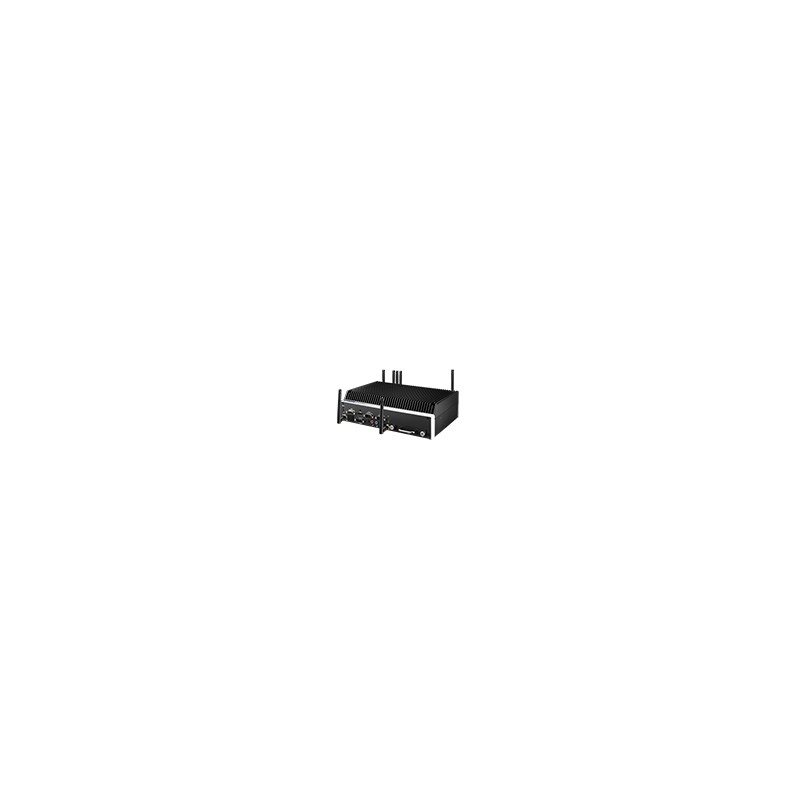

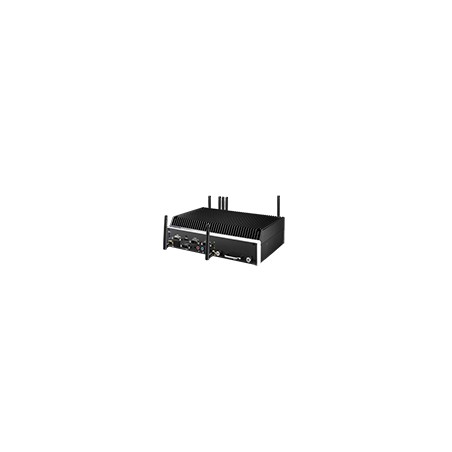

Advantech ARK-2250V-U0A1E

Name: Advantech ARK-2250V-U0A1E
Brand: Advantech
SKU: ARK-2250V-U0A1E
Price: 2357 EUR
Availability: InStock

2 357 €

Tax excluded (incl. VAT: 2 852 €, 21%) In stock

Vehicle PC, Core i7-6822EQ 2.0G, VGA+HDMI

Intel i7-6822EQ QC/ Intel i5-6442EQ QC SoC.
Solid connection for LAN/USB/Audio/COM and onboard GPS.
Stackable extension design, option extension kit for applications.
Support 12/24VDC vehicle power input with vehicle power ignition management.
Diversity Communication Extensible, ex. WLAN, WWAN.
Built-in Advantech remote management software WISE-PaaS/RMM.
Shock and vibration certified with IEC 60721-3-5 5M3, MIL-STD-810G Method 514.6.
Safety certifications UL, CCC, BSMI, CB, E-Mark (No RED).

Technical Documentation:

ARK-2250V_DS(080322)20220803163332.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

ARK-2250V is a finless system powered by Intel Skylake. ARK-2250V has built-in GPS engine and vehicle power ignition management. It's an ideal solution for in-vehicle applications.

Ethernet	LAN1	10/100/1000 Mbps Intel i219 GbE, support Wake On Lan
	LAN2	10/100/1000 Mbps Intel I210 GbE, support Wake on LAN
I/O	GPIO	4 x DI & 4 x DO w/ 1.5KV isolation, Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel, On-state Voltage: 24 VDC nominal, open collector to 30 VDC
	CANBus	Optional
	USB	3 x USB3.0 Type A
Memory	Technology	DDR4 2133MHz
	Max. Capacity	32 GB
	Socket	2 x 260-pin SO-DIMM
Graphics	Graphic Engine	DirectX 11.3, OGL 4.4, OCL 2.1, Encode: H.264, MPEG2/4, VC1, WMV9, Decode: H.264, MPEG2, EHVC: H.265
	HDMI	HDMI 1.4a for HD video playback, 1080P at 60Hz
	VGA	Up to 1920 x 1200 at 60 Hz
	Chipset	QM170
	Dual Display	VGA + HDMI (Std.) or Dual HDMI (by project)
Audio	Main System	Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in
I/O Interface	Serial Port	3 x RS-232/422/485 port with auto flow control
Environment	Vibration During Operation	IEC 60721-3-5 5M3, MIL-STD-810G Method 514.6
	Shock During Operation	IEC 60721-3-5 5M3, MIL-STD-810G Method 516.6
	Relative Humidity	95% @ 40° C (non-condensing)
Certification	EMC	CE, FCC Class B, CCC, BSMI
	Safety Certifications	UL, CCC, BSMI, CB, EMARK
Expansion	Mini PCIe	#1, Full-size Mini PCIe (SATA/PCIe/USB) w/external SIM socket, #2, Full-size Mini PCIe (PCIe/USB) w/external SIM socket, #3, M.2 2230 E key
Processor	Frequency	2.0 GHz
	Core Number	4
	CPU	Intel i7-6822EQ QC SoC
	L2 Cache	8 MB
	BIOS	AMI EFI
Mechanical	Construction	Aluminum housing
	Mounting	Wall mounting kit
	Dimensions	260 x 73 x 160.2mm
	Weight	3.2 Kg
Storage	mSATA	1 x full size mSATA socket (Mini PCIe #1)
	2.5" HDD/SSD	1 x 2.5" SATA drive bay
Software Support	Microsoft Windows	Win7, WES7, Win8, WSE8, Win10
	Linux	Support by project
Environment	Operational Temperature	With extended temperature peripherals: -20 ~ 70° C with 0.7m/s air flow
	Storage Temperature	-40 ~ 85° C
Other	GPS	On board standalone GPS, support GPS, GLONASS, GALILEO , BeiDou and QZSS signals
	G-Sensor	On board high resolution G-Sensor, up to 13-bit resolution at ± 16g
	TPM	TPM2.0 (Infineon SLB9665)
Power	Power Type	ATX
	Input Voltage	12/24VDC with E-Mark certification
	Power Ignition Management	Selectable boot-up & shut-down voltage, on/off delay time
	Isolation	1.5KV Isolated
	Consumption	TBD

Reference ARK-2250V-U0A1E

In stock 1 Item

Download

ARK-2250V_DS(080322)20220803163332.pdf
