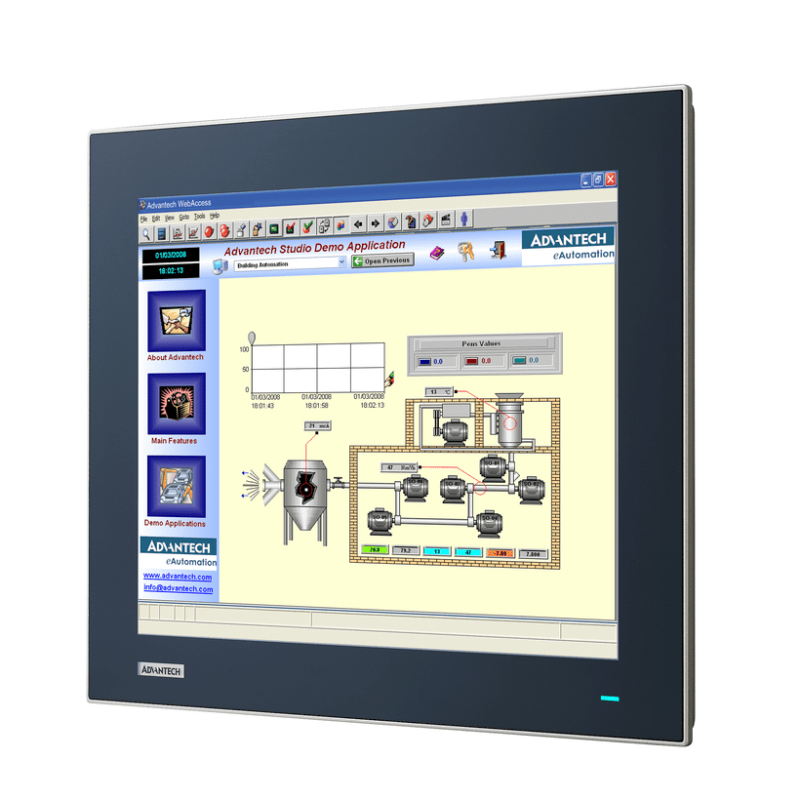

Advantech TPC-315-R833B

2 218 €

Tax excluded (incl. VAT: 2 684 €, 21%) In stock

15" XGA Touch Panel PC with Core i3 CPU, 8G RAM

Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight.
8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM.
Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection.
True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel.
Supports expansion via Full-size Mini PCIe and NVMe.
Diverse system I/O and isolated digital I/O via iDoor technology.
Supports fieldbus protocols via iDoor technology.

Technical Documentation:

TPC-300-WHL_DS(050824)20240508114638.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

TPC-315 touch panel computer is equipped with 15" XGA TFT LED LCD, low-power 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor, and built-in 8 GB DDR4 SO-DIMM delivering high performance yet compact and fanless computing system.

Environment	Ingress Protection	Front Panel IP66
	Operating Temperature	-10~55 °C
	Storage Temperature	-20~70 °C
	Vibration Protection	1 Grms, random
General	Humidity (Operating)	10~95% RH (non-condensing)
Hardware	BIOS	AMI UEFI
	Certification	CB, UL, CE, FCC Class A, CCC, BSMI
	CPU	8th Gen. Intel® Core™ i3-8145UE 2.20GHz Dual-Core
	I/O	1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot
	LAN	1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
	Memory	1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot
	OS Support	Microsoft® Windows 10 LTSC, Linux, Android
	Power Consumption	36.79 W @ 24 VDC
	Storage	1 x SATA M.2 SSD slot (2280 M-Key) ; 1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key
	Watchdog Timer	15~255 s
I/O Interface	Audio	Line-Out, Microphone
	Displays	1 x DP
	Expansion	1 x Full-size mPCIe Slot, 1 x SIM card Slot
	Serial Ports	2 x RS-232/422/485
LCD Display	Backlight Life (hrs)	70,000
	Display Size	15"
	Luminance (cd/m2)	300
	Max. Resolution	1024 x 768
	Viewing Angle (H/V°)	176/176
Mechanical	Dimension (W x H x D)	383.2 x 307.3 x 66.5 mm
	Enclosure	Die-cast aluminum alloy
	Mounting	Stand, Wall, VESA, Panel
	Weight (Net)	5.8 kg (12.79 lb)
Touchscreen	Touch Type	5-wire resistive

Reference TPC-315-R833B

In stock 12 Items

Download

TPC-300-WHL_DS(050824)20240508114638.pdf
