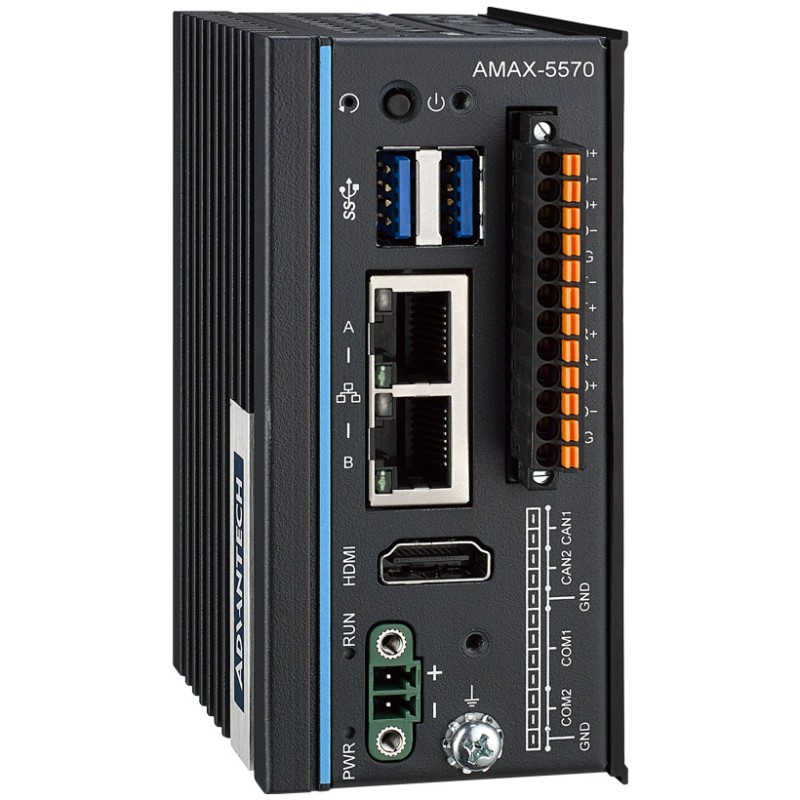

Advantech AMAX-5570-E2200A

Name: Advantech AMAX-5570-E2200A
Brand: Advantech
SKU: AMAX-5570-E2200A
Price: 761 EUR
Availability: OutOfStock

761 €

Tax excluded (incl. VAT: 921 €, 21%)

Ultra Compact Control Platform with Intel Atom Processor

Intel® Atom® quad-core x6413E processor.
4 GB DDR4 onboard memory.
64GB eMMC on board storage.
Optimized I/O with 2 x GbE, 2 x USB, 2 x CAN, 2 x COM, 1 x HDMI.
Full-size mPCIE and M.2 B key slot for flexible expansion.
Built-in TPM2.0 for hardware-based security.
System ground isolation and port isolation of CAN/COM.
IEC 61010 certified for industrial applications.

Technical Documentation:

AMAX-5570_DS(090523)20230905182349.pdf

Quantity

On enquiry

I agree to the terms and conditions and privacy policy.

Out of stock (EU)

Out of stock (Non-EU)

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

AMAX-5570 is designed for machine and equipment builders, with efficient Intel Atom® 4 core processor and optimized local expansion slots for general IT and OT applications. On board eMMC storage design minimizes the overall size and allows scalable local expansion with mPCIE and M.2 B key ports.

Hardware	Power Input	24 VDC ±10%
	CPU	Intel® Atom™ x6413E 1.5GHz Quad-Core
	Memory	1 x DDR4 with 4 GB
	Storage	1 x eMMC (64G), 1 x SATA M.2 SSD slot (2242 B-key), 1 x mSATA (Shared with mPCIe)
	Video Port	HDMI
	Graphics Engine	Intel® HD Graphics 620
	I/O	2 x 10/100/1000 Mbps RJ45, 1 x RS-232, 1 x RS-232/RS-485/RS-422, 1 x USB 2.0, 1 x USB 3.0
	Expansion	1 x Full-size mPCIe, 1 x M.2 B key 2242
	Certification	CB, UL, CE, FCC Class A
	OS Support	Microsoft® Windows 10 LTSC, Linux
Mechanical	Dimension (W x H x D)	100 x 70 x 48.5 mm
	Enclosure	Aluminum housing, Steel
	Mounting	DIN-rail
	Form Factor	Passive Cooling
	Weight (Net)	480 g (0.22 lb)
Environment	Ingress Protection	IP20
	Operating Temperature	-20~60 °C
	Storage Temperature	-40~85 °C
	Relative Humidity	10~95% RH (non-condensing)
	Vibration Protection	2 Grms, random
	Shock Protection	50 G, half sine

Reference AMAX-5570-E2200A

Data sheet

Temperature (Operating Range): -20~60 °C

Download

AMAX-5570_DS(090523)20230905182349.pdf
