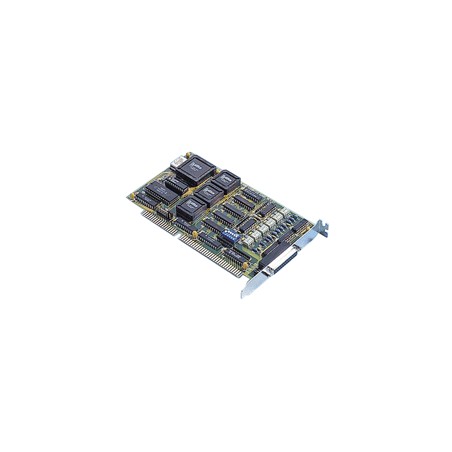

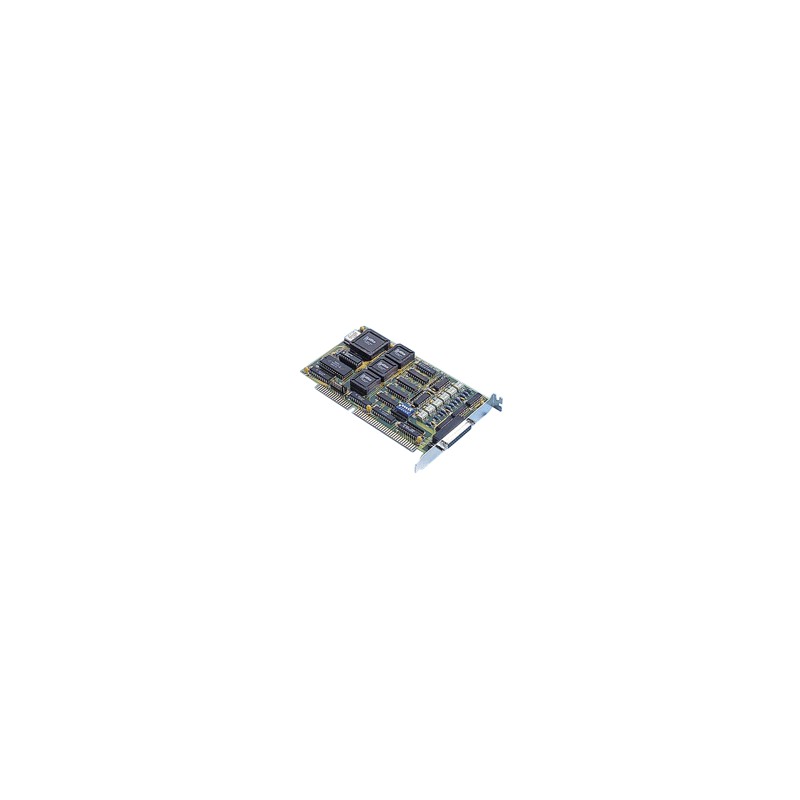

Advantech PCL-833-BE
3-axis Quadrature Encoder and 2-ch Counter ISA Card
- 1.0 MHz max. quadrature input rate.
- Three 24-bit counters (can cascade up to 48 bits).
- Optically isolated up to 2,500 VRMS.
- 4-stage digital filter.
- 2.4 MHz max. input pulse rate.
- Pulse/direction and up/down counting.
- Digital input with interrupt for each axis.
- Programmable time-interval interrupt.
- Half-size AT bus card.
Terms and Conditions
* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech PCL-833-BE
PCL-833 provides five digital input channels. Each channel accepts digital input as an index input for a rotary encoder or as a home sensor input for a linear encoder. The card cangenerate an interrupt to the system based on a signal from its digital inputs, overflow/underflow of its counters, or on a programmed time interval. It can repeatedly generate interruptsat any time interval you specify, from 0.1 msec. to 255 sec. These interrupts let you precisely monitor the speed of a control system.
Counter/Encoder Input | Channels | 3 |
Counting Range | 24-bit | |
Mode | Counter (up/down, bi-direction, up, A/B Phase) | |
Digital Input | Channels | 5 (Isolated) |
Isolation Protection | 2,500 VDC |
Download
PCL-833_DS.pdf
PCL-833_DS.pdf
