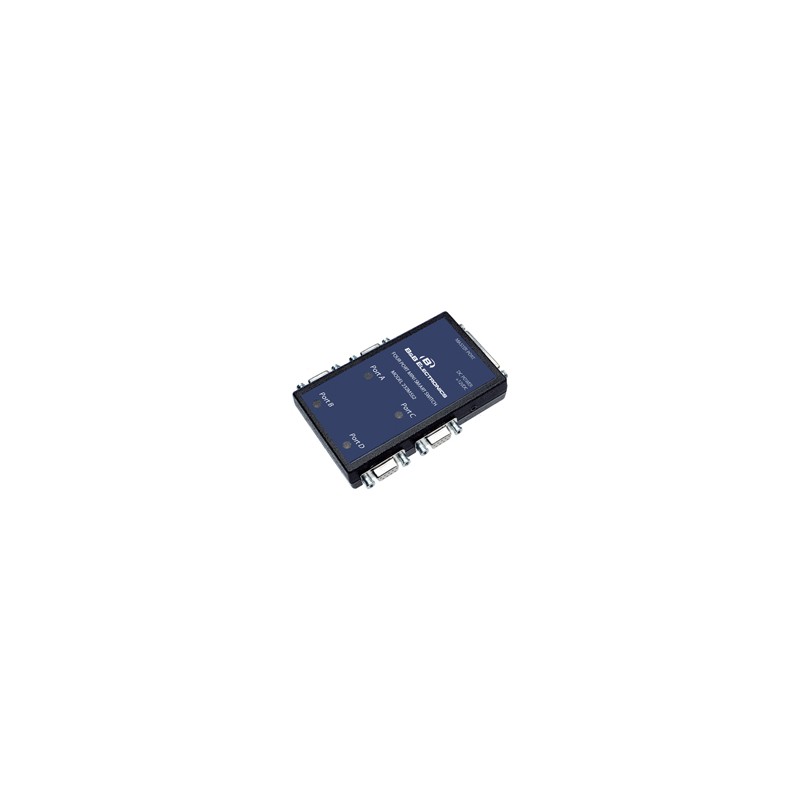

Advantech BB-232MSS2
search
  • Advantech BB-232MSS2

Advantech BB-232MSS2

€219
Tax excluded

4PORT MINI SMART SWITCH W/PTC

  • Connect up to 4 RS-232 devices to 1 RS-232 port.
  • 1200 to 115.2 Kbps baud rate.
  • Quick, inline installation.
  • Configure DB25 Master as DTE or DCE.
  • (4) RS-232 DB9 female Slave ports.
  • Automatic Transmit and Receive data control; advanced configuration options.
  • Requires 12 VDC external power supply (not included, sold separately).
Quantity
On enquiry



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech BB-232MSS2


Model BB-232MSS2, RS-232 4-Port Mini-Smart Switch/Port Combiner, allows one RS-232 host device to connect to up to four RS-232 devices. Model BB-232MSS2 can function as a software and/or hardware controlled switch. There are four LEDs that indicate which port is connected to the master port. The master port can be configured as a DTE or DCE port by an internal switch setting (see datasheet). If the master port is configured as a DTE port, the four slave ports automatically become DCE ports. Handshake lines DSR and DTR are connected together and are not passed through to the master port. There is no delay through the device and data is not buffered. The communication format is set via dipswitch 1 (SW1 - see datasheet). NOTE: The data format and rates mentioned are used to switch Model BB-232MSS2. Communication between the devices can use any format or data rate. NOTE: Power supply required, not included, sold separately.
GeneralTechnologySerial
SpeedData RateUp to 115.2 kbps
GeneralRS-232 ConnectorDB9 Female
RS-232 Port Count4
Power12-16VDC
MountingMountingInline
CertificationsFCCYes
CEYes
Advantech
BB-232MSS2

Download

BB-232MSS2_1821ds20210504213952.pdf

BB-232MSS2_1821ds20210504213952.pdf
