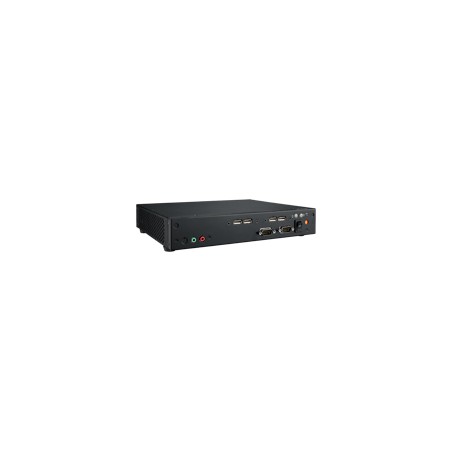

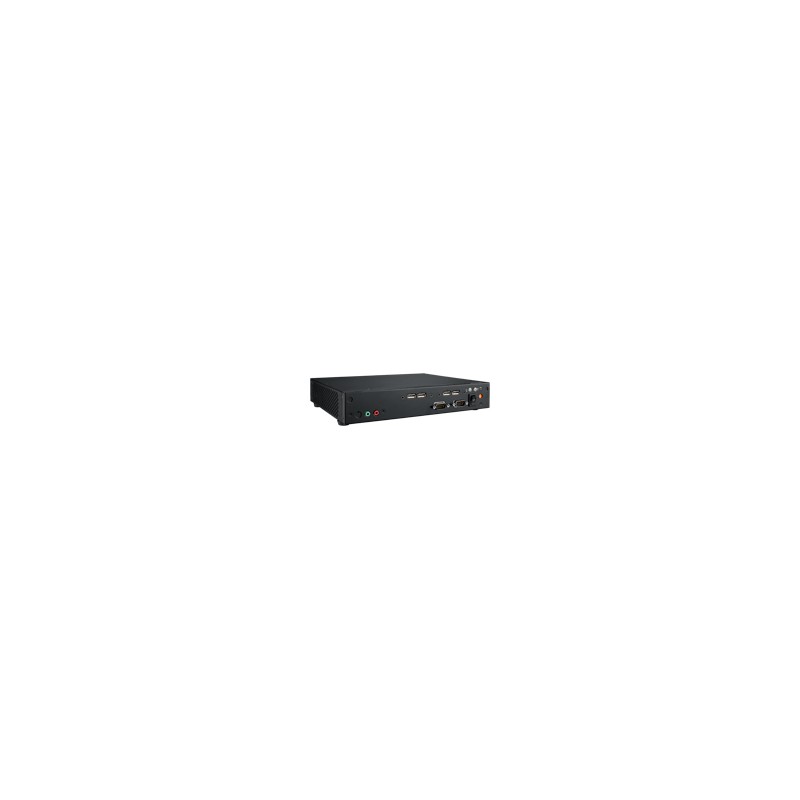

Advantech EPC-T2285CA-00Y1E

479 €

Tax excluded (incl. VAT: 580 €, 21%)

EPC-T2285 barebone,w/ CPU G3900, w/o ADP,RAM,HDD

Lock type DC power jack.
Support Wall/VESA/Din Rail/Rack mounting kit.
One 2.5" shock-resistant drive bay.
Easy/ quick installation for additional peripherals.
Thin barebone with multi-IO ports is suitable for variety of applicationenvironments with DC-in design.
Thin design with 44.2mm in height.
CE (No RED certification).
Support SUSI, WISE-DeviceOn and Edge AI Suite.

Technical Documentation:

EPC-T2285-Series-System_DS(122220)20201222180535.pdf

Quantity

On enquiry

I agree to the terms and conditions and privacy policy.

Out of stock (EU)

Out of stock (Non-EU)

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

Intel® 6th/7th Generation Desktop Core™ i3/i5/i7 1U THIN embedded PC

Thermal Solution	Thermal Solution	2x chassis fan (4cm/23.8CFM each)
Processor	Compatible Motherboard	AIMB-285G2-00A1E
	CPU	Intel® Celeron® G3900 Processor
	BIOS	AMI EFI 128Mbit
Memory	Socket	2 x 260 Pin DDR4 SO-DIMM
	Technology	DDR4 2133MHz SO-DIMM
	Max. Capacity	16GB (up to 8GB per SO-DIMM)
Graphics	Chipset	Intel HD Graphics
Storage	mSATA	1+1 (Full-size, Half-size)
	2.5" Drive Bay	1 (support 2.5" HDD/SSD, max 9.5 mm height)
Ethernet	Interface	10/100/1000 Mbps
	Controller	LAN1/ LAN2: Realtek RTL8111G
	Connector	2 (RJ-45)
Audio	Chipset	Realtek ALC892, High Definition Audio (HD)
Expansion	Mini PCIe	1+1 (Full-size, Half-size)
Front I/O Interface	Antenna	up to 2
	Audio	2 (reserved, Line-Out, Mic-In)
	COM	2 (1x RS-232/422/485, 1 x RS-232/422/485 with 5V/12V)
	USB	4 (USB2.0)
Rear I/O Interface	DP++	1
	HDMI / DisplayPort*	1
	COM	0
	USB	4
	VGA	(optional)
	Audio	2 (Line-out, Mic-In)
	Antenna	up to 2
	Ethernet	2
	Power Input	1 (DC Jack)
Miscellaneous	LED Indicators	2 (Power LED, HDD LED)
	Control	1 (Power switch); 1(Reset switch)
Power Requirement	Power Consumption	Based on motherboard
	Voltage	12V DC-in
Environment	Humidity	10 ~ 85% @ 40° C, non-condensing
	Non-Operational Temperature	-20 ~ 60° C
	Operating Temperature	0 ~ 45° C (w/ SSD)
	Vibration Resistance	1 Grms (HDD x 1); 3 Grms (SSD x 1)
Weight (kg)	Weight (kg)	3.23 kg
Dimensions	Dimensions (W x H x D)	250 x 44.2 x 225 mm (9.84" x 1.74" x 8.85")

Reference EPC-T2285CA-00Y1E

Download

EPC-T2285-Series-System_DS(122220)20201222180535.pdf
