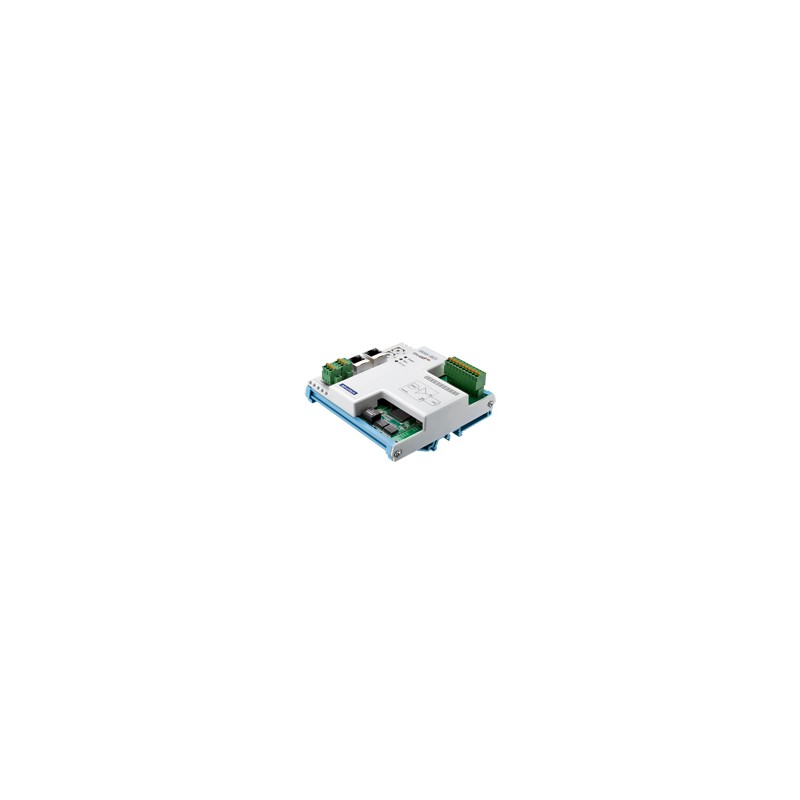

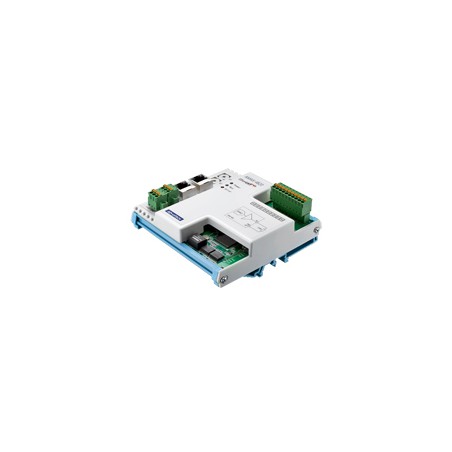

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file AMAX-4817_4820_DS(080723)20231117151838.pdf
Terms and Conditions
| Analog Output | Channels | 4 |
| Output Ranges | 0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA | |
| Output Type | V, mA | |
| Resolution | 16-bit | |
| Load | > 1 kΩ (voltage output); < 625 Ω (current output) | |
| General | Rated Voltage | 10~30 VDC |
| Protocol | EtherCAT | |
| EtherCAT | Cycle Time | 100 μs |
| Cable Type | Ethernet/ EtherCAT cable (min. Cat. 5), shielded | |
| Hardware | Dual Power Input | Supported |
| Certification | CE, FCC class A | |
| LED Indicators | Power, RUN, ERROR, I/O Indicator | |
| Power Consumption | 5 W @ 24 VDC | |
| Environment | Isolation Voltage | 2,500 VDC |
| Operating Temperature | -20~60 °C | |
| Storage Temperature | -40~70 °C | |
| Storage Humidity | 5~95% RH (non-condensing) | |
| Mechanical | Enclosure | PC + ABS |
| Mounting | DIN-rail | |
| Weight (Net) | 209 g | |
| Dimension (W x H x D) | 120 x 120 x 40 mm |
