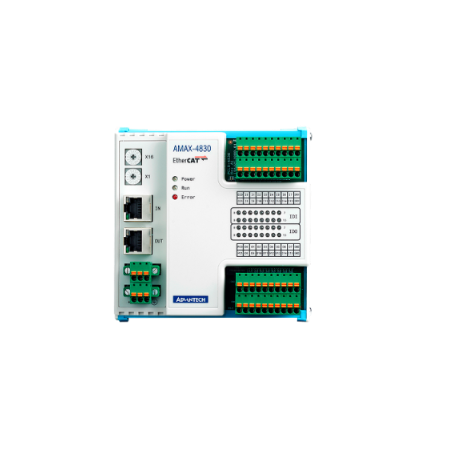

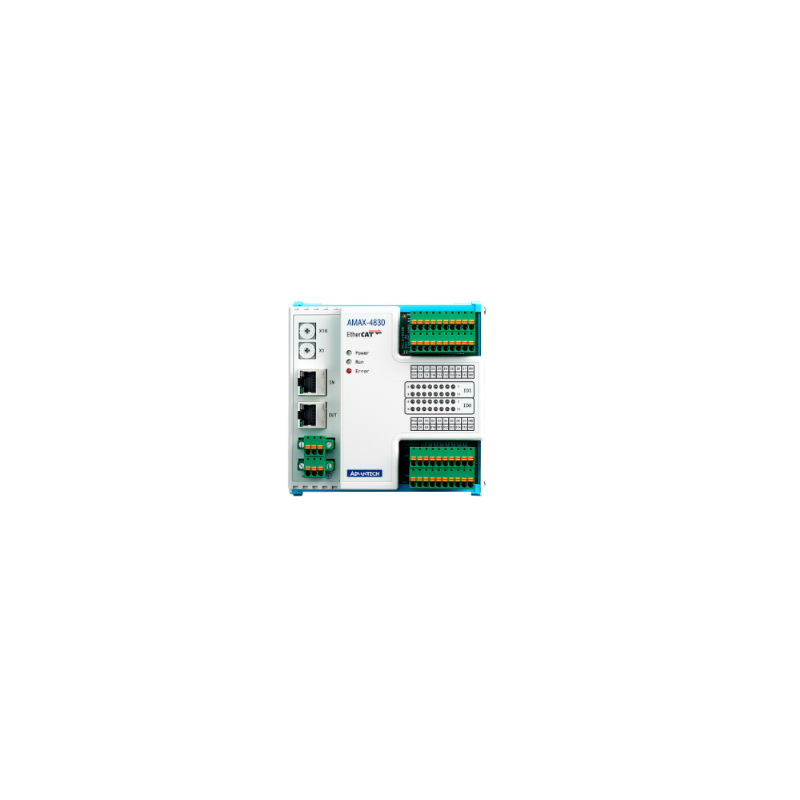

Advantech AMAX-4830-B

Name: Advantech AMAX-4830-B
Brand: Advantech
SKU: AMAX-4830-B
Price: 234 EUR
Availability: InStock

234 €

Tax excluded (incl. VAT: 284 €, 21%) In stock

16-ch Isolated Digital Input and 16-ch Isolated Digital Output EtherCAT Remote I/O Module

Suitable for EtherCAT networks.
16-ch digital input and 16-ch digital output with 2,500 VDC isolation.
Wide input voltage range (10 ~ 30 VDC).
Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch).
Quick removable European type connector.
LED indicators for I/O status.
Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode.
Two rotary switches for up to 256 SubDevice IDs.

Technical Documentation:

AMAX-4830(SO)_4833_4834_DS(062623)20230626161937.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

The AMAX-4830 is an industrial EtherCAT SubDevice module equipped with the EtherCAT protocol. Its compact size and DIN-rail mount kit can install easily in a cabinet.

Isolated Digital Input	Channels	16
	Input Voltage	Logic level 0: 3 V max. Logic level 1: 10~30 VDC
	Isolation Protection	2,500 VDC
Isolated Digital Output	Channels	16
	Output Voltage	5~40 VDC
	Output Type	Sink
	Sink Current	350 mA/channel (sink) @ 25 °C ; 250 mA/channel (sink) @ 60 °C
	Isolation Protection	2,500 VDC
General	Rated Voltage	10~30 VDC
	Protocol	EtherCAT
EtherCAT	Cycle Time	100 μs
	Cable Type	Ethernet/ EtherCAT cable (min. Cat. 5), shielded
Hardware	Dual Power Input	Supported
	Certification	CE, FCC class A
	LED Indicators	Power, RUN, ERROR, I/O Indicator
	Power Consumption	3 W @ 24 VDC
Environment	Operating Temperature	-20~60 °C
	Storage Temperature	-40~70 °C
	Storage Humidity	5~95% RH (non-condensing)
Mechanical	Enclosure	PC + ABS
	Mounting	DIN-rail
	Weight (Net)	249 g
	Dimension (W x H x D)	120 x 120 x 40 mm

Reference AMAX-4830-B

In stock 1 Item

Download

AMAX-4830(SO)_4833_4834_DS(062623)20230626161937.pdf
