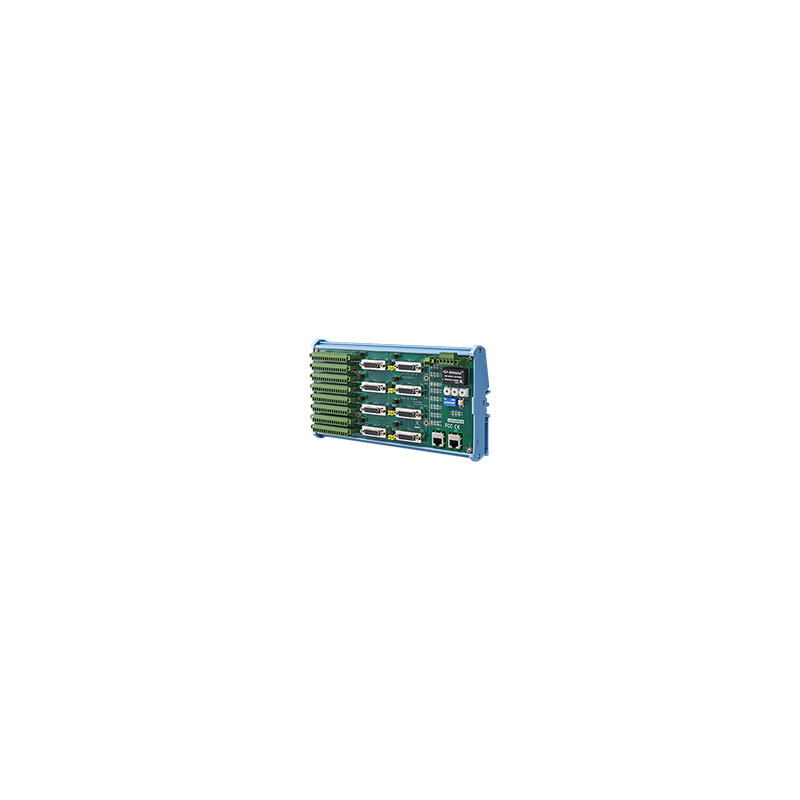

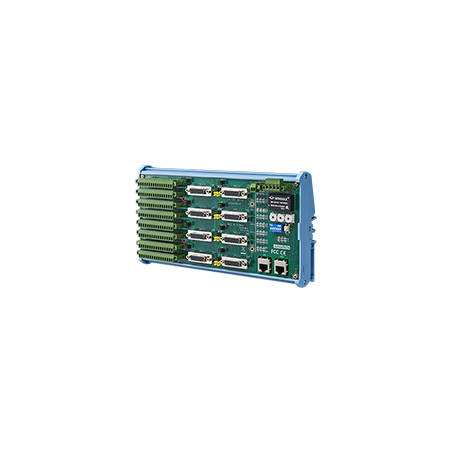

Advantech AMAX-3285IO-AE

€718
Tax excluded In stock

8-axis EtherCAT Motion Slave Module w/ 1

  • Max. 5 MHz, 8-axis pulse output.
  • Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode.
  • BoardID is switchable.
  • Easily visible LED indicators on board to do diagnosis.
  • Direct wire to servo drive to save terminal board space while installation.
  • Horizontal installation for for servo or stepping motor driver.
  • Suitable for DIN-rail mounting.
  • Programmable interrupt.
  • Memory buffer (10K points) for trajectory planning which is designed in DSP.
  • 2-axis position compare triggering up to 100 KHz, and memory buffer is up to 100 K points.
  • Position latch.
  • Supports gantry mode by semi-closed loop pulse train control.
  • RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated.
  • Output channels are switchable for general input and output purposes.
Quantity
In stock



Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech AMAX-3285IO-AE

AMAX-3285IO provides the ability to connect step motor drives and servo motor drives with CW/CCW and Pulse/Direction interfaces to EtherCAT networks controlled by Advantech EtherCAT master PCI-1203. AMAX-3285IO has open frame designs for horizontal placement and an interface connector mounted on the board. With a to-servo-drive transfer cable, it can be conveniently connected to Mitsubishi J3/J4, Yaskwa Sigma V/7, and Panasonic A4/A5 servos. AMAX-3285IO is an 8-axis EtherCAT motion slave module that supports motion interpolation, axes synchronization, and continuous contouring. Advantech also provides a common motion API library, graphical utility, and user-friendly examples to reduce the programming load and facilitate easy configuration and diagnosis.
CommunicationsCommunication Cycle Time500 us
Data Transfer MediumEthernet/EtherCAT cable (min. CAT13), shielded
InterfaceEtherCAT
Counter/Encoder InputChannels8
Counting Range32-bit
Max. Input Frequency10 MHz
Digital Input and Digital OutputNo. of Channels16-ch DI and 16-ch DO
Encoder Type and InterfaceInput TypeQuadrature (x1, x2, x4 A/B phase) or CW/CCW or P/D
Max. Input Frequency10 MHz under x4 A/B phase mode
EtherCAT CouplerBUS Interface2 x RJ45 (1 x Input, 1 x Output)
GeneralRated Voltage24 VDC (±10%)
Isolated Digital OutputOutput TypeSink
Pulse Type Motion ControlHome Modes16 home mode + home motion defined by CiA402
Max. Output Speed5 Mpps
Motor Driver SupportPulse-type servo/stepping
Number of Axes8
Pulse Output TypePulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)
Velocity ProfilesT-Curve, S-Curve
