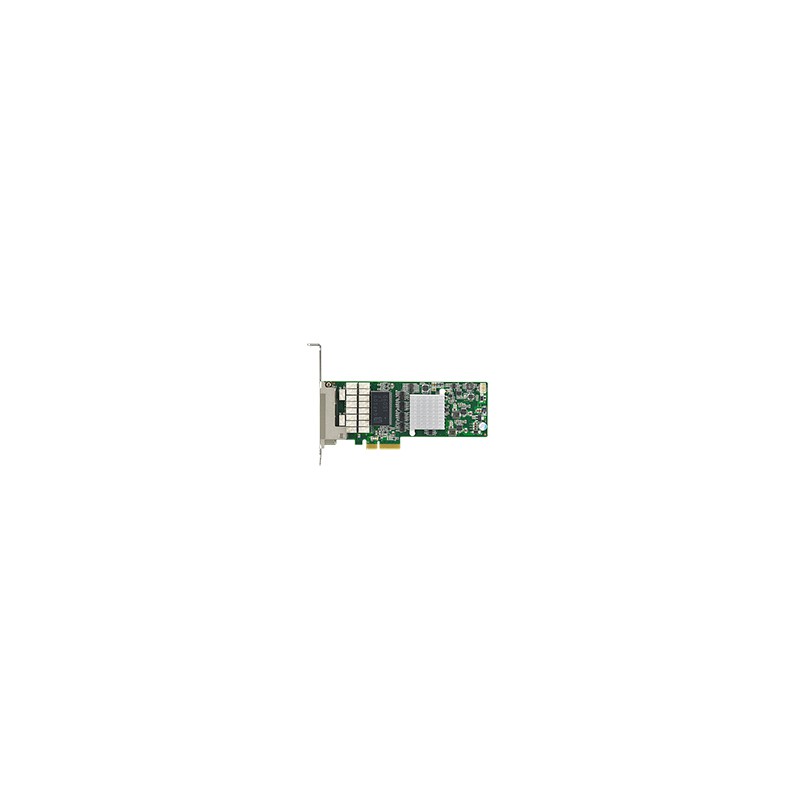

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file PCIE-2131_DS(041620)20200430155119.pdf
Terms and Conditions
| Controller | Controller | Intel® i350-AM4 |
| Physical Functions | 2 | |
| Virtual Functions | 8 | |
| Ethernet | PCI Express Lanes | x4 |
| Speed | Gen 2 | |
| Port Number | 4 | |
| Ports | 1GbE Copper (RJ45) | |
| Networking | LAN bypass | Not supported |
| Power | Voltage | +12V |
| Watts | 5W | |
| Mechanical Design | Board Dimensions | 167 x 68.9 mm |
| Environment | Operating Humidity | 0 to 90% (non-condensing) |
| Mechanical Design | Bracket | Full height and half height options available |
| Environment | Operating Temperature | 0 ~ 45° C (32 ~ 113° F) |
| Storage | -40 ~ 65° C (-40 ~ 149° F) | |
| Certification | EMC | CE/FCC Class A |
| Certification | KCC | |
| Compatibility (Processor architecture/Model) | Intel Haswell | SKY-8200 / ASMB-923 / ASMB-823 / AGS-913 |
| Intel Broadwell | SKY-8100 / SKY-8200 | |
| Intel Skylake | SKY-8101 / SKY-8201 / ASMB-815 / ASMB-825 / ASMB-925 / ASMB-935 / ASMB-975 / SKY-6100 / SKY-6200 | |
| Intel Kaby Lake | ASMB-585 / ASMB-785 | |
| OS version | Win7 x64 / Win10 x64 / Win2012R2 / CentOS Linux release 7.3 |
