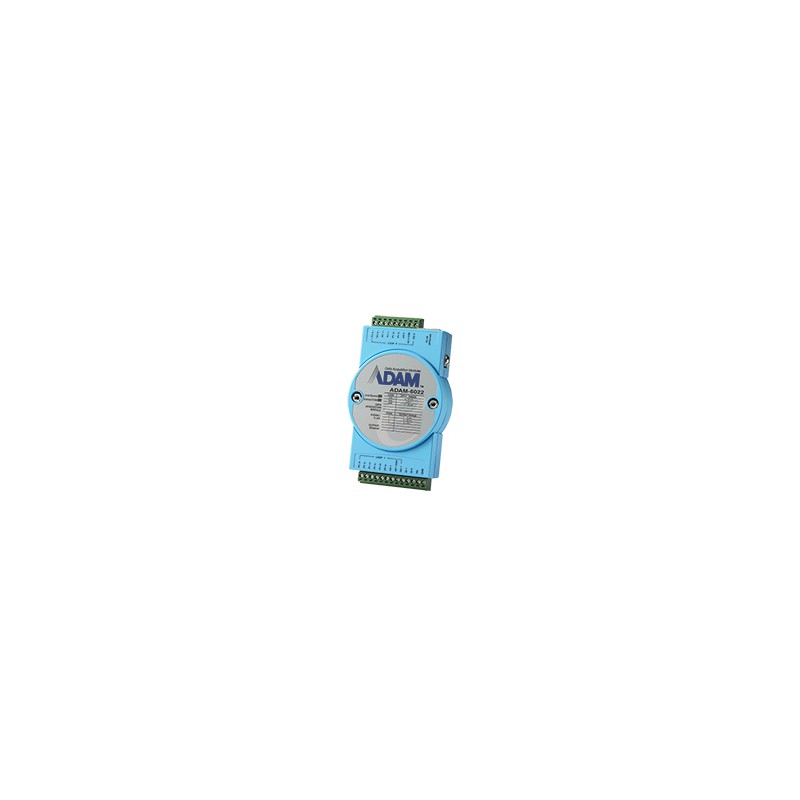

Advantech ADAM-6022-A1E
€435
Tax excluded
6AI/2AO/2DI/2DO Ethernet PID Module
- 2 loop PID control algorithms built in one package.
- 3 analog input/1 analog output/1 digital input/1digital alarm output for 1 PID loop.
- Support multiple analog I/O ranges: 0 ~ 10 VDC, 0 ~ 20 mA and 4 ~ 20 mA.
- Support heating/cooling (direct/reverse) action mode.
- Support loop open/close (PID disable/enable) and analog output manual control modes.
- Watchdog timer to recover the system.
Terms and Conditions
* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech ADAM-6022-A1E
Advantech’s ADAM-6022 is an Ethernet-enabled dual-loop PID controller for general purposed PID control applications. A user-friendly utility software is included for users to set PID parameters (Pv, Mv, & Sv). Through the integrated web page, users can monitor and change the control set point through the Internet via web browser. The ADAM-6022 also supports MODBUS/TCP protocol. HMI software can easily access this module to monitor the I/O data and change the control parameters.
| Analog Input | Channels | 6 |
| Input Range | ±10 V, 0~20 mA, 4~20 mA | |
| lnput Type | V, mA | |
| Resolution(Bits) | 16-bit | |
| Sampling Rates(S/s) | 10 S/s (sum) | |
| Analog Output | Channels | 2 |
| Output Ranges | 0~10 V, 4~20 mA, 0~20 mA | |
| Output Type | V, mA | |
| Resolution | 12-bit | |
| Communications | Interface | Ethernet |
| Environment | Isolation Voltage | 2,000 VDC |
| Operating Temperature | -10~50 °C (14~122 °F) | |
| General | Connectors | 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal |
| Protocol | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP | |
| Isolated Digital Input | Channels | 2 |
| Input Voltage | Dry Contact Logic level 0: close to GND Logic level 1: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC | |
| Isolated Digital Output | Channels | 2 |
| Output Type | Sink | |
| Output Voltage | 0~30 VDC | |
| Sink Current | 100 mA max./channel | |
| Power Requirements | Input Voltage | 10~30 VDC |
