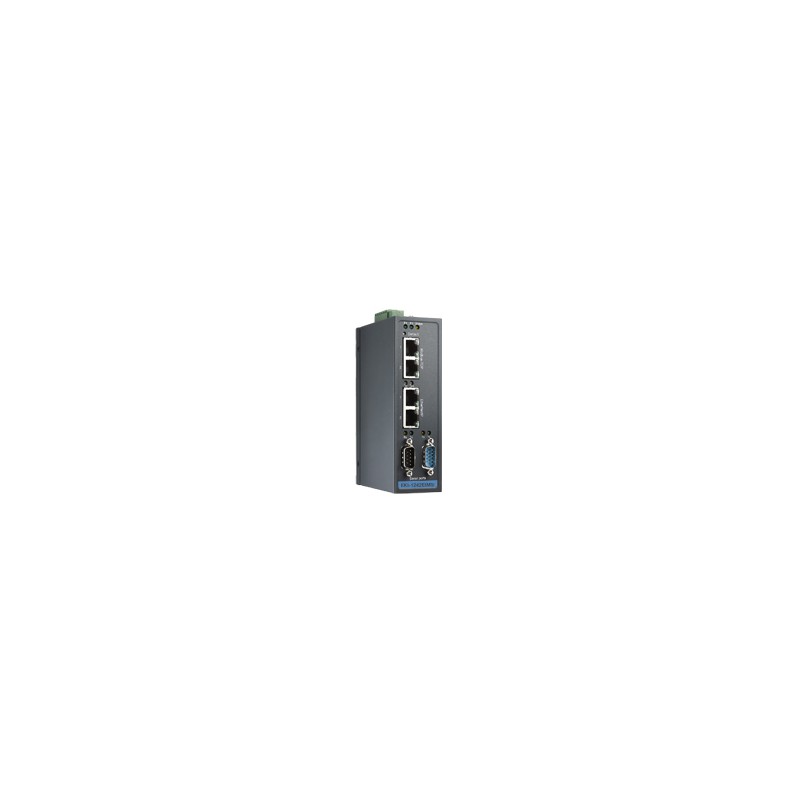

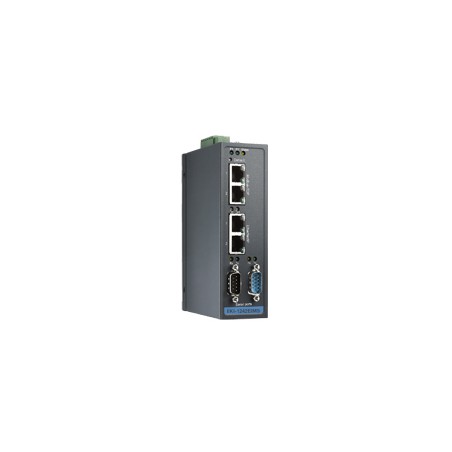

Advantech EKI-1242IEIMS-A

€654
Tax excluded In stock

Modbus RTU/TCP to EtherNet/IP Protocol Gateway - Wide Temperature

  • Seamless integrate Modbus RTU/TCP and EtherNet/IP communication.
  • Built-in real time diagnostic to increase high efficiency of device management.
  • Designed for protocol extensibility and adaption.
  • Modbus TCP Master mode supports 64 connections.
  • Supports dual power input for power redundancy.
  • Mounts on DIN-rail and Wall mount.
Quantity
In stock



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech EKI-1242IEIMS-A


The EKI-1242EIMS Industrial Protocol gateway not only provides seamless communication between Fieldbus and Industrial Ethernet but also supports different protocol devices. Therefore, the Fieldbus gateway can integrate
new and existing Modbus RTU/TCP devices to the EtherNet/IP network. Being able to collect data and exchange data between Modbus RTU/TCP to EtherNet/IP, EKI-1242EIMS is a simple and resource saving way to bring the advantages of fast data transmissions between different devices.

CertificationEMCCE, FCC Class A
EMIEN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMSEN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)
FreefallIEC 60068-2-32
ShockIEC 60068-2-27
VibrationIEC 60068-2-6
EnvironmentHumidity (Operating Range)10 ~ 90% RH non-condensing (refer to IEC 60068-2-3)
Temperature (Max. Operating)75°C (167°F)x
Temperature (Min. Operating)-40°C (-40°F)
Temperature (Operating Range)-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)-40 ~ 85°C (-40 ~ 185°F) x
Ethernet CommunicationEthernet StandardIEEE 802.3 , 802.3ab , 802.3u
Protection Port to Port IsolationBuilt-in 1.5 KV magnetic isolation
Ethernet CommunicationRJ-45 Port Connector Type !RJ-45
RJ-45 Port Number4
RJ-45 Transmission Speed10/100 Mbps x
MechanismDimensions (W x H x D)42 x 140 x 95 mm (1.65 x 5.51 x 3.74 in.) x
Enclosure (Metal)Metal with solid mounting hardware
Mounting (DIN-rail)Yes
Mounting (Wall)Yes
IP RatingIP30
Weight0.497 kg
Modbus CommunicationModbus RTU/TCP Functions Support1,2,3,4,5,6,15,16,23
Modbus RTU/TCP Max. Number of ConnectionsMaster mode: 64 connections x
Modbus RTU/TCP ModeMaster
PowerPower Consumption5.2W (system)
Power Operating Current0.22 @ 24V ;  0.11 @ 48V
Protection Reverse PolarityPresent
PowerPower Input (DC)12 ~ 48 VDC
Serial CommunicationData Bits7, 8
Flow ControlXON/XOFF, RTS/CTS, DTR/DSR
ParityNone, Odd, Even, Space, Mark
Serial Port Connector TypeDB9 male
Serial Port Number2
RS-232Yes
RS-422Yes
RS-485Yes
Serial SignalsRS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, RI, GND
Stop Bits1, 2
Serial Transmission Speed50 ~ 921.6 kbps, any baud rate setting
SoftwareEtherNet/IP ClassAdaper
EtherNet/IP Max. No. of Connection32 explicit messaging, 5 implicit messaging
EtherNet/IP Max. Total I/O Data SizeInput: 496 bytes
Modbus RTU/TCP Functions Support1, 2, 3, 4, 5, 6, 15, 16, 23
Modbus RTU/TCP Max. No. of Connections64 connections
Modbus RTU/TCP ModeMaster
WarrantyWarranty Period5 years
Protocol SupportModbus TCPYes
Modbus RTUYes
EtherNet/IPYes
EthernetYes
Modbus ASCIIYes
Advantech
EKI-1242IEIMS-A
6 Items

Data sheet

Temperature (Operating Range)
-40 ~ 75°C

Download

EKI-1242EIMS_IEIMS_DS(01.17.19)20190119180802.pdf

EKI-1242EIMS_IEIMS_DS(01.17.19)20190119180802.pdf
