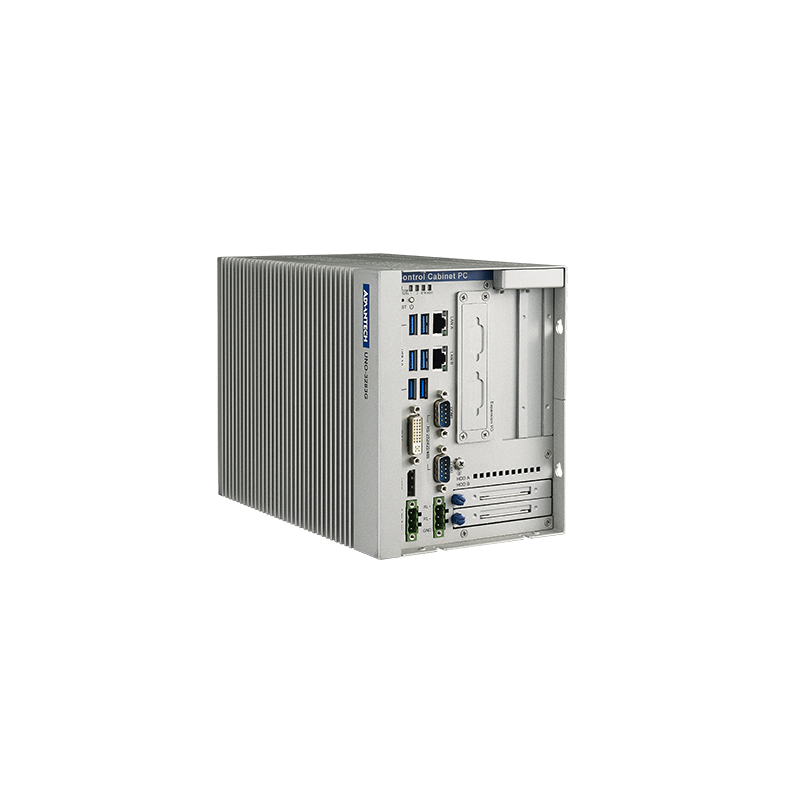

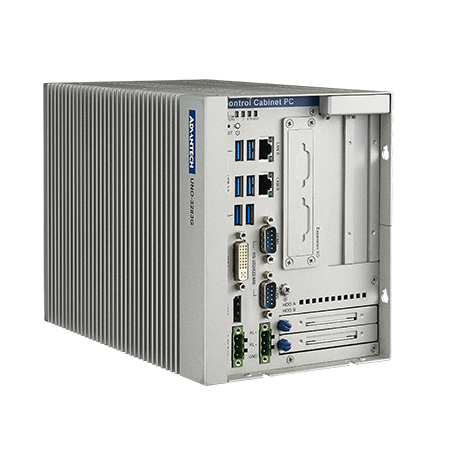

Advantech UNO-3283G-674BE

Name: Advantech UNO-3283G-674BE
Brand: Advantech
SKU: UNO-3283G-674BE
Price: 2163 EUR
Availability: OutOfStock

2 163 €

Tax excluded (incl. VAT: 2 618 €, 21%)

Expandable Embedded Box IPC with 6th Gen Intel® i7-6822EQ CPU, 1 PCIE, 1 PCI

6th Generation IntelR Quad Core Processors with 8GB DDR4 Memory.
2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232 (pin header), 1 x DVI-I, 1 x HDMI.
1 x PCIex16, 1x PCI, 2 x mPCIe (2 x full), 1x CFast slot, 1 x mSATA slot (optional).
Thumb screw for easy maintenance.
Hot-Swappable HDD/SSD support for RAID 0/1.
Easily exchangeable RTC battery.
Supports Fieldbus Protocol by iDoor Technology.
Chassis Grounding Protection.
LAN Redundancy (Teaming).

Technical Documentation:

UNO-3283G_3285G_DS(032023)20230320174613.pdf

Quantity

On enquiry

I agree to the terms and conditions and privacy policy.

Out of stock (EU)

Out of stock (Non-EU)

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

The high-performance fanless control cabinet PC UNO-3283G/ 3285G equipped with a Intel® 6th Gen Core™ i7/ i5/ i3 processor and QM170 PCH chipset, rich I/O including 6 x USB 3.0, 2 x GigaLAN, 2 x RS-232/422/485, and 2 x RS-232 (pin header) ports, as well as DVI-I and HDMI display interfaces, UNO-3283G/ 3285G is designed to deliver high-performance computing and maximum flexibility for industrial automation applications. The provision of two hot-swappable HDD/SSD bays and up to 5 expansion slots (2 x PCIe x8, 2 x PCI) supports the integration of modular peripherals and ensures flexible installation in diverse cabinet configurations. In addition to an exchangeable RTC battery that can be accessed via the removable top cover for convenient maintenance, the system features dual power inputs that ensure a stable power supply.

Environment	Ingress Protection	IP20
	Operating Temperature	-20~60 °C
	Relative Humidity	10~95% RH (non-condensing)
	Shock Protection	50 G, half sine
	Storage Temperature	-40~85 °C
	Vibration Protection	4 Grms, random
Hardware	Certification	CE, FCC, UL, CCC, BSMI
	CPU	6th Gen. Intel® Core™ i7-6822EQ 2.0GHz Quad-Core
	Graphics Engine	Intel® HD Graphics
	Memory	1 x SO-DIMM with 8 GB DDR4 2133 MHz, 1 x DDR4 SO-DIMM Slot
	OS Support	Microsoft® Windows 10 2019 LTSC, WES7, Linux
	Power Input	12~36 VAC
	Storage	2 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x CFast
	System Chip	Intel QM170
I/O Interface	Audio	Line-In (Pin Header), Line-Out (Pin Header), Microphone (Pin Header)
	Displays	1 x HDMI, 1 x DVI-I
	Expansion	2 x Full-size mPCIe Slot, 1 x PCIe x16, 1 x PCI
	LAN Ports	2 x 10/100/1000 Mbps
	Power Connector	2 x 3-Pin Terminal Block
	Serial Ports	2 x RS-232/422/485, 2 x RS-232 (Pin Header)
	USB Ports	6 x USB 3.0
Mechanical	Dimension (W x H x D)	142 x 177 x 238 mm
	Enclosure	Aluminum housing
	Weight (Net)	4 kg

Reference UNO-3283G-674BE

Download

UNO-3283G_3285G_DS(032023)20230320174613.pdf
