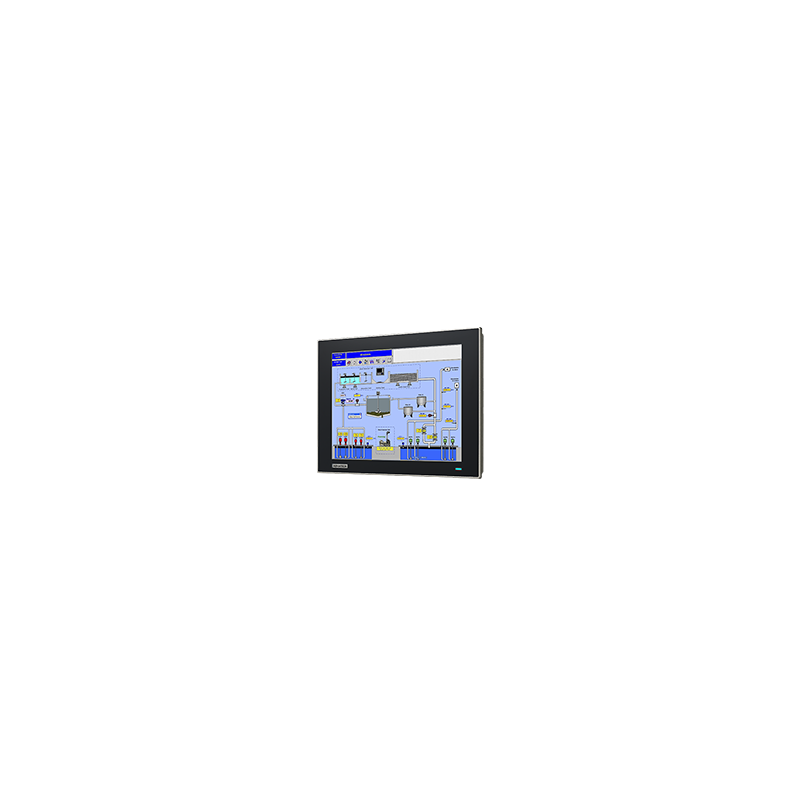

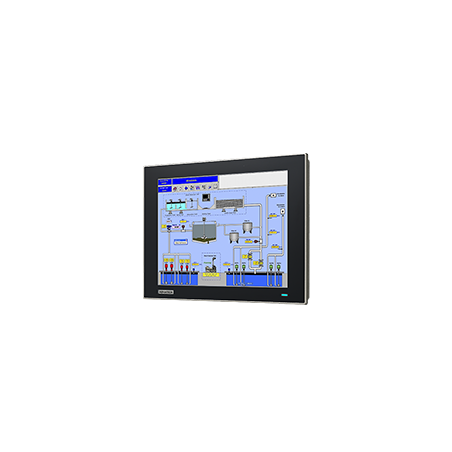

Advantech FPM-7121T-R3AE

911 €

Tax excluded (incl. VAT: 1 103 €, 21%) In stock

12.1" XGA Industrial Monitor with Resistive Touchscreen, Direct-VGA/DP and Wide Operating Temperature Range

12.1" XGA TFT LED LCD with 50K backlight lifetime.
Robust design with IP66 compliance aluminum front panel.
Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F).
Anti-glare screen with tempered glass.
Supports various mount options: panel, wall, desktop, and VESA arm.
Combo RS-232+USB interface for touchscreen functionality.
OSD control pad on rear cover.
Lockable I/O connectors.

Technical Documentation:

FPM-7121T_DS(111424)20241118103554.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

FPM-7000T series is the first true-flat design in 4:3 industrial grade monitor. To enhance its durability, the FPM-7000T series is true-flat touch screen designed with IP66 front protection, die-cast Al Alloy front bezel and 5-wire resistive touch. It supports wide operating temperatures -20~60°C for a variety of user environments. Designed with various mounting methods for users to apply into the system or adopt to the environment easily.

Environment	Ingress Protection	Front Panel IP66
	Operating Temperature	-20~60 °C
	Storage Humidity	10~90% RH (non-condensing)
	Storage Temperature	-30~70 °C
	Vibration Protection	1 Grms, random
Hardware	Certification	CB, UL, CE, FCC Class A, CCC, BSMI
	OS Support	Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
	Power Input	24 VDC
	Video Port	VGA, DP
I/O Interface	Power Connector	1 x Phoenix Jack
LCD Display	Backlight Life (hrs)	50,000
	Display Size	12.1"
	Luminance (cd/m2)	600
	Max. Resolution	1024 x 768
	Viewing Angle (H/V°)	160/140
Mechanical	Dimension (W x H x D)	311.8 x 238 x 44.5 mm
	Enclosure	Die cast magnesium alloy, SECC
	Mounting	Stand, Wall, VESA, Panel
	Weight (Net)	2.6 kg (5.73 lb)
Touchscreen	Touch Type	5-wire resistive

Reference FPM-7121T-R3AE

In stock 220 Items

Download

FPM-7121T_DS(111424)20241118103554.pdf
