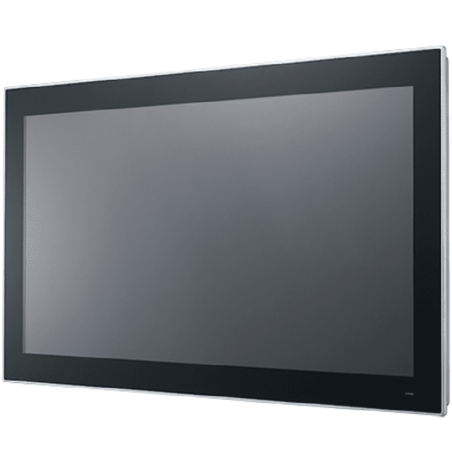

Advantech PPC-324W-PN40B

1 468 €

Tax excluded (incl. VAT: 1 777 €, 21%) In stock

23.8" FHD PPC w/Intel N4200, Pcap

23.8" true-flat TFT LCD with projected capacitive touch control.
Fanless design with low power consumption.
Supports 1 x internal 2.5" SATA HDD and 1 x mSATA.
Configurable RS-232/422/485 ports via BIOS.
Automatic data flow control over RS-485.
Wide range DC support (12 ~ 24 VDC).
Supports dual displays.
IP66-rated front panel.

Technical Documentation:

PPC-324W-PN4_DS(081423)20230816161535.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

The PPC-324W-PN4 is a high-value, ultra-slim panel PC equipped with a 23.8" industrial-grade LCD, and low-power Intel® Pentium® N4200 quad-core, 1.1 GHz, processor to provide high-performance computing in a compact and fanless system. For high durability and functionality, the PPC-324W-PN4 features

Environment	Ingress Protection	Front Panel IP66
	Operating Temperature	0~50 °C
	Relative Humidity	95% RH (non-condensing)
	Storage Temperature	-20~60 °C
	Vibration Protection	2 Grms, random
Hardware	Certification	CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
	CPU	Intel® Pentium® N4200 1.1GHz Duad-Core
	Ethernet	Intel® i225-LM
	Expansion	1 x Full-size mPCIe slot
	I/O	1 x RS-232, 1 x RS-232/422/485, 2 x USB 3.0, 2 x USB 2.0, 1 x Line Out, 1 x HDMI
	LAN	2 x 10/100/1000/2500 Mbps
	Memory	1 x DDR3L SO-DIMM Slot
	OS Support	Microsoft® Windows 10 LTSC, Linux
	Power Consumption	70 W @ 19 VDC
	Power Input	12~24 VDC
I/O Interface	Audio	Line-Out
	Displays	1 x HDMI
	Power Connector	1 x 2-Pin Terminal Block
	Serial Ports	1 x RS-232, 1 x RS-232/422/485
LCD Display	Backlight Life (hrs)	30,000
	Display Size	23.8"
	Luminance (cd/m2)	350
	Max. Resolution	1920 x 1080
	Viewing Angle (H/V°)	178/178
Mechanical	Dimension (W x H x D)	596 x 374 x 58 mm
	Enclosure	Die-cast aluminum alloy
	Mounting	Stand, Wall, VESA, Panel
	Weight (Net)	8.4 kg (18.52 lb)
Touchscreen	Touch Type	PCAP
USB Vision	Connector	2 x USB 3.0 Type A, 2 x USB 2.0 Type A

Reference PPC-324W-PN40B

In stock 13 Items

Download

PPC-324W-PN4_DS(081423)20230816161535.pdf
