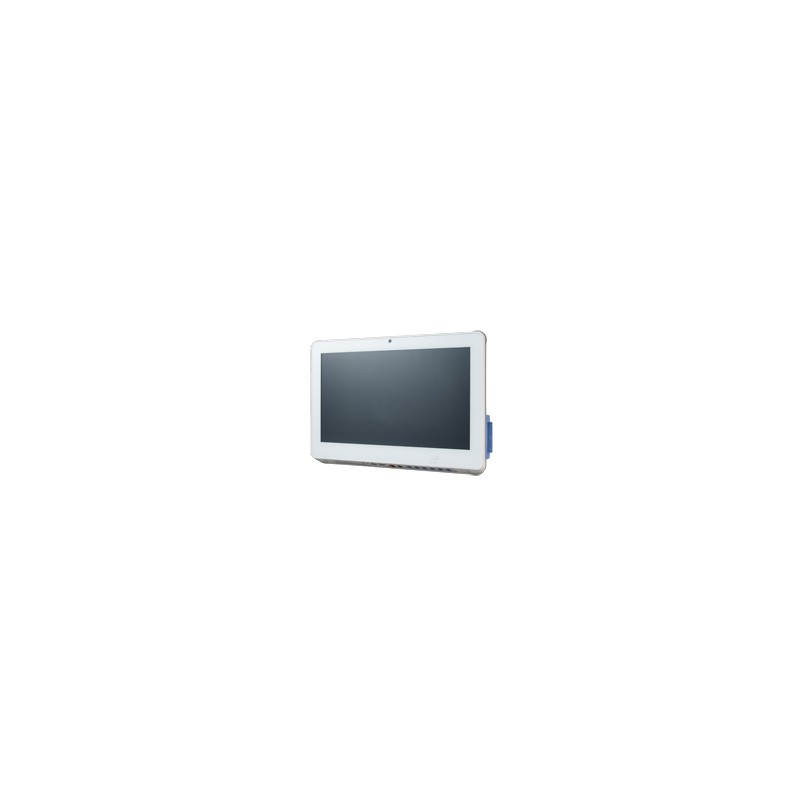

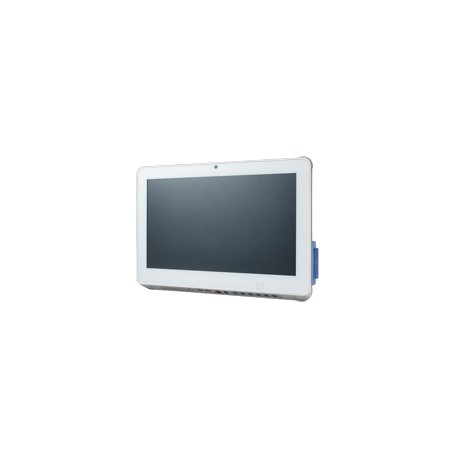

Advantech HIT-W183AP-AMW1E

Name: Advantech HIT-W183AP-AMW1E
Brand: Advantech
SKU: HIT-W183AP-AMW1E
Price: 1901 EUR
Availability: InStock

1 901 €

Tax excluded (incl. VAT: 2 301 €, 21%) In stock

HIT-W183 PCT,4G,64G,Cam,WiFiBT,RFID,SC,Med,win10

Medical and ITE dual certification (EN60601-1 4th Edition & EN60950) to provide complete application coverage.
Rich optional peripherals – Handset / RFID / NFC / Smart Card Reader / Capture Card / Barcode Scanner / MSR / Nurse Call Button.
Optional nurse call button & LED indicator.
Dual isolated Ethernet – Internet (for patients) and intranet (for hospitals) traffic and data security.
Supports M.2 2230 WiFi / BT modules and M.2 2242 SSDs.
IP65 rated front panel, and IP43 rated as a whole unit.
True-flat touch screen for easy cleaning.
All-in-one computer with Intel® Celeron® Apollo Lake N4200 CPU.
Innovative and ultra-slim design for healthcare and hospitality applications.

Technical Documentation:

HIT-W183_DS(062124)20240621100510.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

HIT-W183 is an innovative product in the HIT-series, featuring a 41mm thin body enclosure (12mm at its thinnest part), USB 3.0, 5 megapixel camera, and dual isolated Ethernet, which lets hospitals separate and manage internal and external network traffic. The HIT-W183 also features a dedicated audio codec for our background noise-canceling handset to guarantee the best audio quality for calls to nurse stations. The available optional nurse call button and the LED indicator can be easily linked to existing nurse call systems in hospitals, and can be operated independently, even when the system is off. HIT-W183 is ideal for applications in hospitals, such as bedside information terminals, IP nurse call stations, and treatment centers. It can also be used as an HMI interface for medical equipment.

Hardware	CPU	Intel® Celeron® Apollo Lake N4200
	Memory	DDR3L x 1, up to 8GB (Default 4GB)
	Primary Storage	M.2 2242 SSD (Default 64GB)
	Camera	5MP CMOS with LED Indicator
	Bus Expansion	Full Mini-PCIe x 1
Display	Size	18.5" W TFT
	Max. Resolution	1920 x 1080 FHD
	Luminance (cd/m2)	350
	Contrast Ratio	1000 : 1
I/O Ports	USB 3.0 ports	1 (Rear)
	USB 2.0	2 (Bottom)
	Smart Card Reader	1 (Default), Optional 2nd reader
	RFID	1
	Audio Jack (TRRS)	1
	Handset Out (RJ12)	1
Display	Viewing Angle	178°/178°
Network	LAN (Isolated)	Isolated RJ45 (10/100/1000 Mbit) x 2
	Bluetooth	BT 4.1 (Default Module)
	WLAN	802.11 a/b/g/n/ac (Default Module)
Mechanical	Mounting	VESA 75/100mm
	Dimensions (W x H x D)	466.4 x 311.5 x 41mm (18.4" x 12.3" x 1.6")
	Weight	Gross Weight: 11.02 lb, 5 kgs
Power Supply	Input Voltage	100 ~ 240 VAC, 1.1 ~ 0.45 A @ 47~ 63 Hz
Environment	Operating Temperature	0 – 40°C

Reference HIT-W183AP-AMW1E

In stock 6 Items

Download

HIT-W183_DS(062124)20240621100510.pdf
