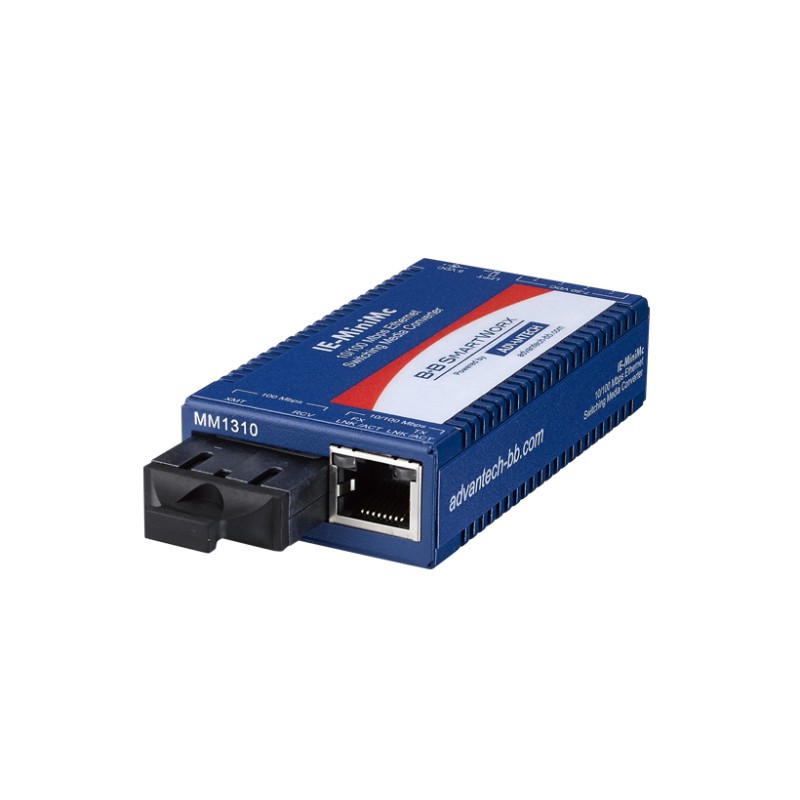

Advantech IMC-350I-SSR-B

Name: Advantech IMC-350I-SSR-B
Brand: Advantech
SKU: IMC-350I-SSR-B
Price: 239 EUR
Availability: InStock

239 €

Tax excluded (incl. VAT: 290 €, 21%) In stock

IE-MiniMc, TP-TX/SSFX-SM1550-SC-WDM

Centralized powered IMC-318I chassis.
Supports Link Fault Pass Through functionality (LFPT).
IEEE802.3af compliant (IMC-350I series as PoE-PD).
Industrial grade design that supports an extended operating temperature(IMC-350I series).
Metal enclosure with compact size.

Technical Documentation:

IMC-350I-B_DS(020724)20240614100829.pdf

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

The IMC-350 series is the most compact media converters. They can extend the 10 and 100Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100 auto negotiation on the copper port and also 100Mbps full-duplex on the fiber port, the IMC-350 series serves as media and data rate converter. With a variety of model types in terms of its play-n-plug feature and multiple powering options, the IMC-350 series is easy and convenient for any applications. The IMC-350I series is in industrial grade and can operate in wide temperature. The multiple powering options including IEEE 802.3af Power-over-Ethernet standard allow IMC-250I series to function as a power device. Its AC adapter and USB connectivity offer an unsurpassed flexibility for a variety of installation needs.

Ethernet Communication	Fiber Port Number	1
	RJ-45 Port Number	1
Mechanism	Number of Slot	0
Ethernet Communication	Fiber Transmission Speed	10/100 Mbps
	Fiber Port Optical Mode	Single-Strand
	Fiber Transmission Wavelength	1550T / 1310R
	Fiber Transmission Distance	20 km
	Fiber Port Connector Type	SC Type
PoE Information	PoE-PD	Yes
Power	Power Input (DC)	7 ~ 50 VDC, 1A
Mechanism	Dimensions (W x H x D)	2.11 x 4.57 x 8.51 cm (0.83 x 1.80 x 3.35 in.)
	Weight	0.3 kg (0.7lb)
Environment	Operating Temperature	-25 ~ 75°C
	Storage Temperature	-40 ~ 85°C
	Operating Humidity	5~95% (non-condensing)
Certification	Safety	UL/cUL
	EMC	CE, FCC Class A, CSA

Reference IMC-350I-SSR-B

In stock 9 Items

Data sheet

Temperature (Operating Range): -25 ~ 75°C

Download

IMC-350I-B_DS(020724)20240614100829.pdf
