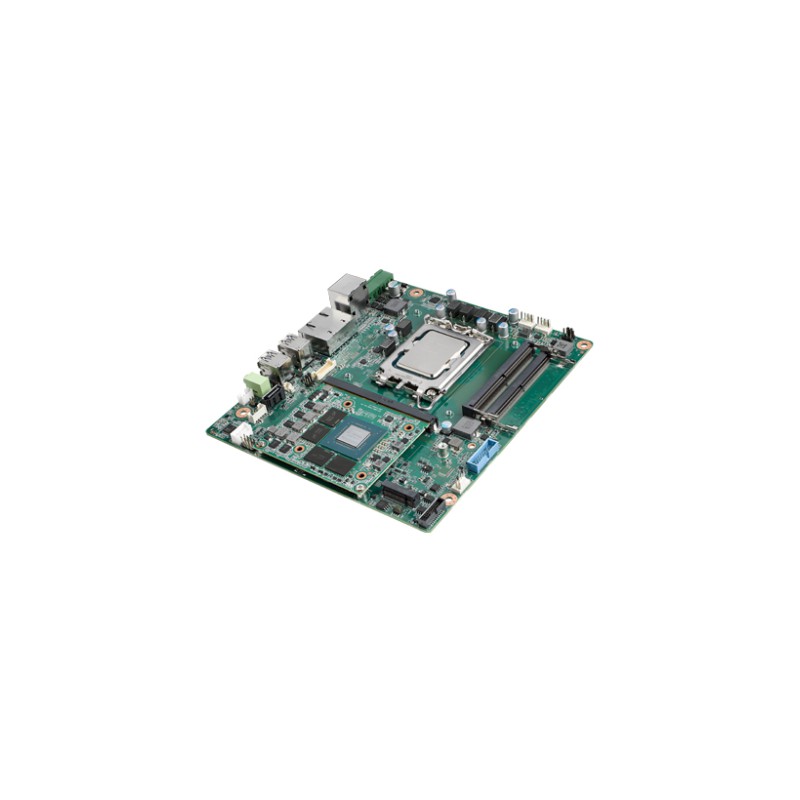

Advantech AIMB-288EH-03A1

Name: Advantech AIMB-288EH-03A1
Brand: Advantech
SKU: AIMB-288EH-03A1
Price: 767 EUR
Availability: OutOfStock

767 €

Tax excluded (incl. VAT: 929 €, 21%)

ADL-S LGA1700 H610E w/ VEGA-X110/2 GbE/2DP

12/13/14th Gen Intel® Core™ Desktop Processors (LGA1700), with H610E.
Support Intel Arc Embedded MXM GPU or NVIDIA Quadro Embedded MXM GPU.
Up to 96GB DDR5 5600 MT/s with two SO-DIMM.
Triple displays with 2 DP and 1 eDP, up to 4K.
Abundant Expansion: 1 M.2 M-key & 1 M.2 B-key, 4 USB 3.2 Gen2x1 & 2 USB 3.2 Gen1x1, 1 SATA III.
Support Windows 10 LTSC & Ubuntu 20.04 LTS; SUSI API, and WISE-DeviceOn for quick AI deployment at scale.

Technical Documentation:

AIMB-288E_DS(100424)20241004165325.pdf

Quantity

On enquiry

I agree to the terms and conditions and privacy policy.

Out of stock (EU)

Out of stock (Non-EU)

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

Processor	CPU	Intel® 12/13/14th Gen Core™ I Processor
	Core Number	Up to 24C
	Max Speed	Up to 5.8GHz
	L3 Cache	Up to 36MB
	TDP	Up to 65W
	Chipset	H610E
	BIOS	AMI EFI 256Mb SPI
Expansion	M.2	1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242)
Memory	Technology	Dual Channel DDR5 5600 MT/s
	Max. Capacity	96 GB (up to 48GB per DIMM)
	Socket	2 x 262 pin DDR5 SO-DIMM
Display	Multiple Display	Triple
Graphics	GPU	Intel Arc A370M
Ethernet	Controller	1 x Intel i219LM/ 1 x i226V
	Connector	2 x RJ-45
Audio	CODEC	Realtek ALC888S, High Definition Audio (HD)
	Amplifier	Yes (Option, 3.2W)
SATA	Max. Transfer Rate	6.0 Gb/s
	Channel	1
Rear I/O	DP	2
	Ethernet	2
	USB	4, USB 3.2 Gen1x1
	Audio	1, Line-out
	Power Connector	1 x Terminal block
Internal Connectors	USB	2, USB 3.2 Gen1x1
	LVDS/eDP	Only eDP
	Serial	2
	SATA	1
Watchdog Timer	Output	System reset
	Interval	Programmable 1 ~ 255 (second or minute)
Power Requirement	Input Voltage	19-24V DC-in
	Connector Type	4P Terminal Block
Environment	Operational Temperature	0 ~ 60° C
	Non-Operational	-40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
Physical	Dimension (mm)	170 x 190 mm (without heat sink)
Operating System	Microsoft Windows	Windows 10 Enterprise 64 bit

Reference AIMB-288EH-03A1

Download

AIMB-288E_DS(100424)20241004165325.pdf
