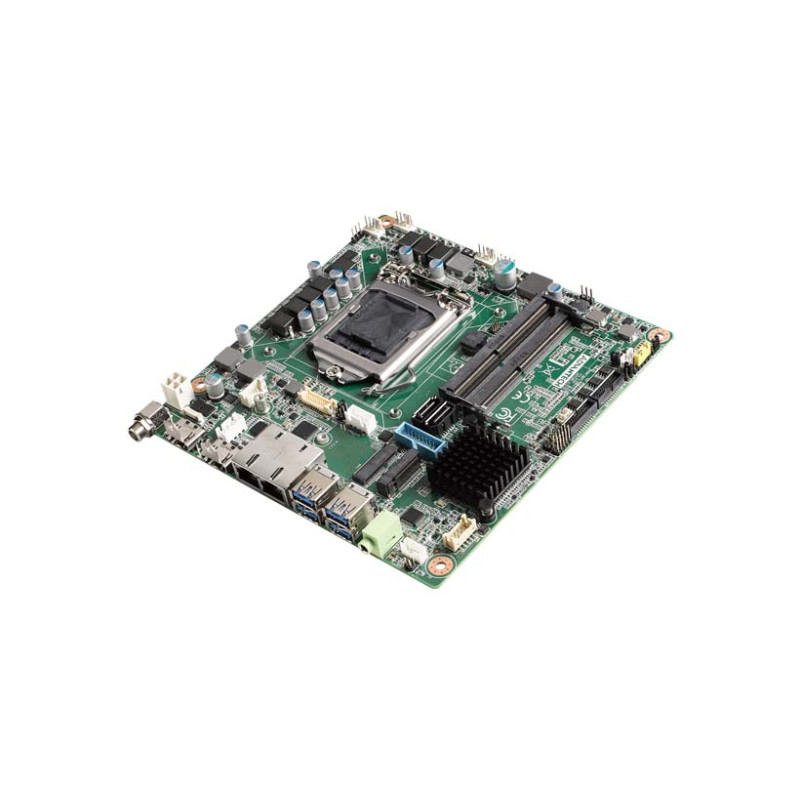

Advantech AIMB-287FL-00A2E

Name: Advantech AIMB-287FL-00A2E
Brand: Advantech
SKU: AIMB-287FL-00A2E
Price: 299 EUR
Availability: OutOfStock

299 €

Tax excluded (incl. VAT: 362 €, 21%)

miniITX LGA1200 wH420E/2HDMI/2GbE/TPM2.0/AMP

Supports Intel® 10th Gen Core™ i processor (LGA1200) with Intel H420E chipset.
Two 260-pin SO-DIMM up to 32GB DDR4 2666/2933 MHz SDRAM.
Supports 1 M.2 M key, 1 M.2 E key, 4 COM, 6 USB 3.0 and 2 SATA III.
Supports dual display of HDMI 2.0/ HDMI 1.4b/ eDP.
Supports TPM 2.0 (optional).
THIN Mini-ITX with 12~24V DC Input.
Support SUSI, WISE-DeviceOn and Edge AI Suite..

Technical Documentation:

AIMB-287-A2_DS(102824)20250508154918.pdf

Quantity

On enquiry

I agree to the terms and conditions and privacy policy.

Out of stock (EU)

Out of stock (Non-EU)

Terms and Conditions

Advantech product versions are identified by the last two characters in the product name, where later letters indicate a newer version (e.g. AE, BE, CE, etc.).

Processor	CPU	Intel® 10th generation Core™ I processor/Pentium®/Celeron® (LGA1200)
	CPU TDP	65W / 35W
	Frequency	1.8G~3.8GHz
	Core Number	10/8/6/4/2
	L3 Cache	20MB/ 20MB /16MB/ 12MB/ 6MB/ 2MB
	BIOS	AMI EFI 256 Mbit
	Chipset	Intel H420E
Memory	Technology	DDR4 2933MHz SO-SIMM
	Max. Capacity	64GB (up to 32GB per SO-DIMM)
	Socket	2 x 260 Pin DDR4 SO-DIMM
Display	Controller	CPU Integrated
	Graphic Engine	Intel HD Graphic
	Graphic Memory	Share with system memory up to 2 GB
	Dual Display	Dual HDMI, HDMI 1.4 + eDP, HDMI 2.0 +eDP
	eDP*	Max resolution up to 4096 x 2304 at 60 Hz
	Multiple Display	Dual
	Video Interface	HDMI 1.4/ HDMI 2.0/eDP support Dual display
Expansion	Slot Type	1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230)
Ethernet	Controller	GbE1: Intel i219LM; GbE2: Intel i210
	Speed	10/ 100/ 1000 Mbps
	Connector	RJ45 x 2
Audio	Audio Interface	HD Audio
	CODEC	Realtek ALC888S, High Definition Audio (HD)
	Connector	1 (Line Out)
Expansion	Slots	1 x M.2 M key + 1 x M.2 E key
Watchdog Timer	WatchDog Timer	Yes
I/O	COM Port	4 (COM1/2: RS-232/422/485, COM3/4: RS-232)
	GPIO	8-bit
	USB2.0	2
	TPM	TPM 2.0
	USB3.0	6
SATA	Ports	2
Power	Connector	DC Jack
Environment	Operational Temperature	0 ~ 60° C
	Non-Operational Temperature	-40~ 85° C
	Vibration Resistance	3.5 Grms (non OP)
Physical	Dimension (mm)	170x 170 mm (without heatsink)
	Weight	1.04 kg (1.72 lb), weight of total package
	Construction	with CPU cooler design
Power	Power Type	12-24 DC input
Operating System	Microsoft Windows	Yes
	Linux	Yes
	SUSIAccess	Yes
Certification	EMC	CE, FCC

Reference AIMB-287FL-00A2E

Download

AIMB-287-A2_DS(102824)20250508154918.pdf
