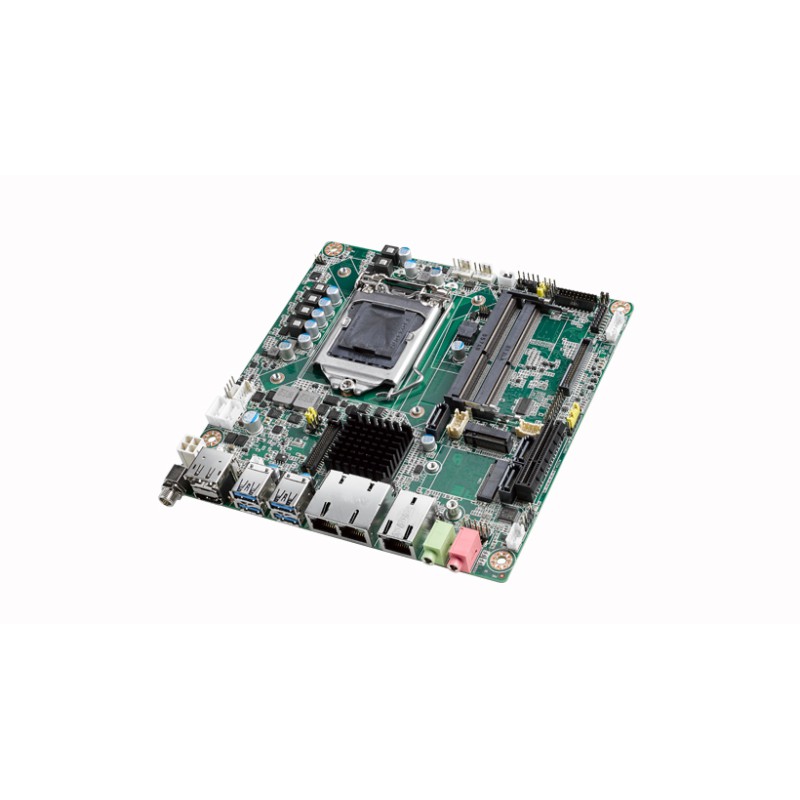

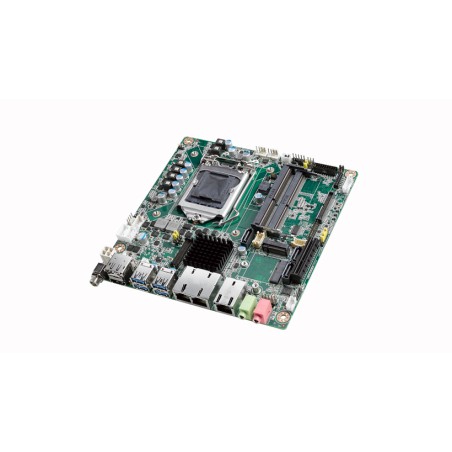

Advantech AIMB-286L-00A1E
miniITX LGA1151 wH310/DP/HDMI/1GbE,RoHS
- Supports Intel® 8th/9th Gen Core™ i processor (LGA1151) with Intel H310 chipset.
- Two 260-pin SO-DIMM up to 64GB DDR4 2666 MHz SDRAM.
- Supports PCIe x 4 (Gen 3), 1 M.2 B key, 1 M.2 E key, 6 COM, 4 USB 3.0 and 3 SATA III.
- Supports dual display of DP/HDMI/LVDS(or eDP).
- Supports TPM 1.2 / 2.0 (optional).
- THIN Mini-ITX with 12V DC Input.
- Support SUSI, WISE-DeviceOn and Edge AI Suite.
Terms and Conditions
* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech AIMB-286L-00A1E
Processor | CPU | Intel® 8th Gen Core™ i processor/Pentium/Celeron (LGA1151) |
CPU TDP | 65W/54W/35W | |
Frequency | 2.1~3.7 GHz | |
Core Number | 2 / 4 / 6 | |
BIOS | AMI EFI 128Mbit | |
Chipset | Intel H310 | |
Memory | Technology | DDR4 2666MHz SO-DIMM |
Max. Capacity | 32GB (up to 16GB per SO-DIMM) | |
Socket | 2 x 260 Pin DDR4 SO-DIMM | |
Display | Graphic Engine | Intel HD Graphic |
DDI (HDMI/DVI/DisplayPort) | HDMI:max 4096x2160 @ 24 Hz; DP:4096x2304 @ 60Hz | |
LVDS | N/A | |
Multiple Display | Dual | |
Video Interface | DP+HDMI, DP+LVDS (or eDP), HDMI + LVDS (or eDP) | |
Expansion | PCI Express x 4 | 0 |
Slot Type | 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230) | |
Ethernet | Controller | LAN1: Realtek 8111G |
Speed | 10/ 100/ 1000 Mbps | |
Connector | RJ45 x 1 | |
Audio | Audio Interface | HD Audio |
CODEC | Realtek ALC888S | |
Connector | 2 (Line out, Mic In) | |
Expansion | Slots | 1 x M.2 B key + 1 x M.2 E key |
Storage | SATA | 2 x SATAIII |
Watchdog Timer | WatchDog Timer | Yes |
I/O | COM Port | 2 x RS-232 (COM2: RS-422/485 supports by optional) |
GPIO | 16-bit | |
USB2.0 | 0 | |
TPM | 0 | |
USB3.0 | 4 | |
Power | Connector | DC jack, internal 4pin |
Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
Non-Operational Temperature | -40~ 85° C | |
Vibration Resistance | 3.5 Grms (non OP) | |
Physical | Dimension (mm) | 170x 170 mm (without heatsink) |
Weight | 1.04 kg (1.72 lb), weight of total package | |
Construction | with CPU cooler design | |
Power | Power Type | Single 12V DC power input |
Operating System | Microsoft Windows | Windows 10 (64-bit) |
Linux | Yes | |
SUSIAccess | 0 | |
Certification | EMC | CE/FCC Class B |
Download
AIMB-286_DS(052521)20210722115914.pdf
AIMB-286_DS(052521)20210722115914.pdf
