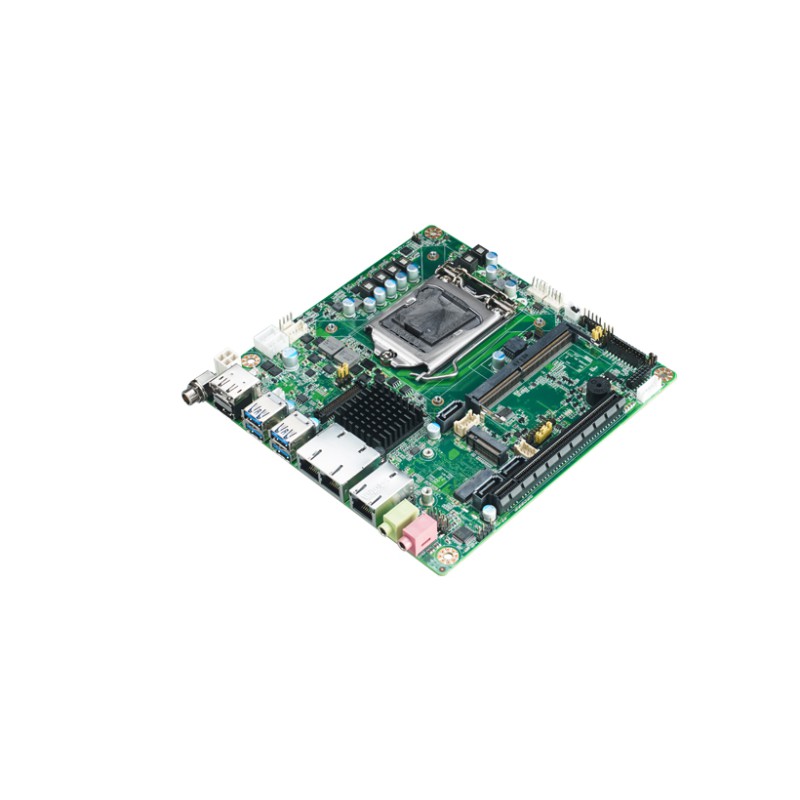

Advantech AIMB-286F-EFA1E
search
  • Advantech AIMB-286F-EFA1E
  • Advantech AIMB-286F-EFA1E
  • Advantech AIMB-286F-EFA1E
  • Advantech AIMB-286F-EFA1E

Advantech AIMB-286F-EFA1E

€301
Tax excluded In stock

miniITX LGA1151 wH310/DP/HDMI/PCIex16, R

  • Supports Intel® 8th/9th Gen Core™ i processor (LGA1151) with Intel H310 chipset.
  • One 260-pin SO-DIMM up to 32GB DDR4 2666 MHz SDRAM.
  • Supports PCIe x 16 (Gen 3), 1 M.2 B key, 1 M.2 E key, 2 COM, 4 USB 3.0 and 3 SATA III.
  • Supports dual display of DP/HDMI/LVDS(or eDP).
  • Supports TPM 1.2 / 2.0 (optional).
  • THIN Mini-ITX with 12V DC Input.
  • Support SUSI, WISE-DeviceOn and Edge AI Suite.
Quantity
In stock



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech AIMB-286F-EFA1E



ProcessorCPUIntel® 8th Gen Core™ i processor/Pentium/Celeron (LGA1151)
CPU TDP65W/54W/35W
Frequency2.1~3.7 GHz
Core Number2 / 4 / 6
L3 Cache2 ~ 8MB
BIOSAMI EFI 128Mbit
ChipsetIntel H310
MemoryTechnologyDDR4 2666MHz SO-DIMM
Max. Capacity16GB (up to 16GB per SO-DIMM)
Socket1 x 260 Pin DDR4 SO-DIMM
DisplayGraphic EngineIntel HD Graphic
DDI (HDMI/DVI/DisplayPort)HDMI:max 4096x2160 @ 24 Hz; DP:4096x2304 @ 60Hz
LVDSDual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz
Multiple DisplayDual
Video InterfaceDP+HDMI, DP+LVDS (or eDP), HDMI + LVDS (or eDP)
ExpansionPCI Express x 161
Slot Type1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230)
EthernetControllerLAN1/2: Realtek 8111G; LAN3: Intel i211
Speed1 10/100/1000 Mbps
ConnectorRJ45 x 3
AudioAudio InterfaceHD Audio
CODECRealtek ALC888S
Connector2 (Line out, Mic In)
ExpansionSlots1 x M.2 B key + 1 x M.2 E key, 1 x PCIex16
StorageSATA3 x SATAIII
Watchdog TimerWatchDog TimerYes
I/OCOM Port2 x RS-232 (COM2 RS-422/485 supports by optional)
USB2.04
GPIO1, 16-bit GPIO
TPMOptional
USB3.04
PowerConnectorDC 12V Jack/ 4-pin with ATX12V
EnvironmentOperational Temperature0 ~ 60° C (32 ~ 140° F)
Non-Operational Temperature-40~ 85° C
Vibration Resistance3.5 Grms (non OP)
PhysicalDimension (mm)170x170mm
Weight1.04 kg (1.72 lb), weight of total package
Constructionwith CPU cooler design
PowerPower TypeSingle 12V DC power input
Operating SystemMicrosoft WindowsWindows 10 (64-bit)
LinuxYes
SUSIAccessYes
CertificationEMCCE/FCC Class B
Advantech
AIMB-286F-EFA1E
17 Items

Download

AIMB-286EF_DS(102519)20191025173211.pdf

AIMB-286EF_DS(102519)20191025173211.pdf
