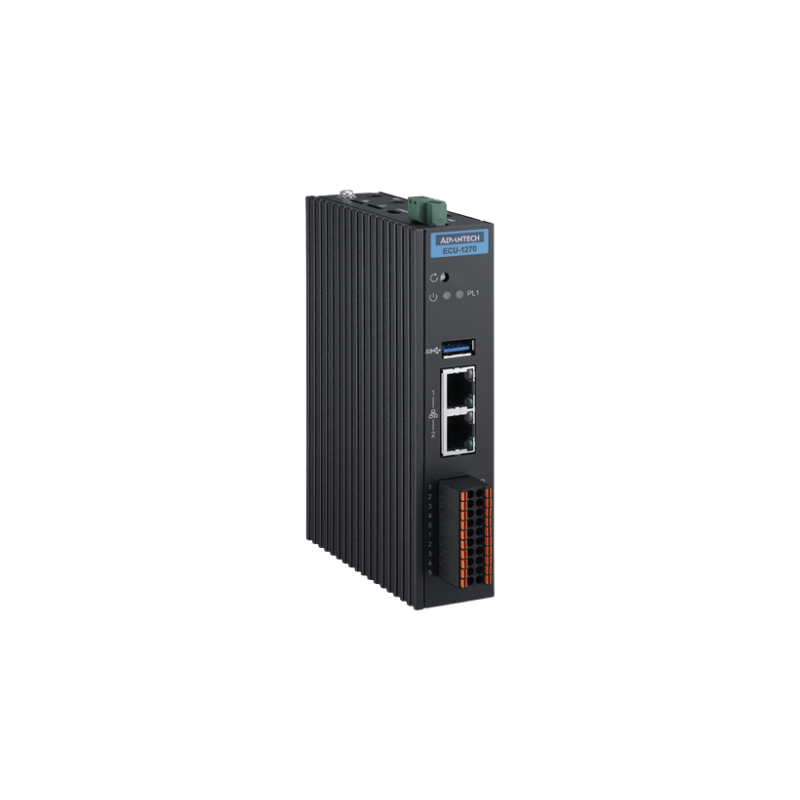

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file ECU-1270_DS(120525)20251208112602.pdf
Terms and Conditions
| Hardware | CPU | TI ARM® AM6734 Cortex-A53 Quad-Core |
| Memory | 1 x LPDDR4 with 4 GB | |
| Storage | 1 x eMMC (32 GB), 1 x micro SD Slot | |
| Expansion Function | SIM card slot | Nano SIM card |
| Hardware | LAN | 2 x 10/100/1000 Base-T Ethernet |
| Expansion | 1 x Full-size mPCIe, 1 x M.2 E key 2230 | |
| Power Input | 10~36 VDC | |
| LED Indicators | PWR, Programmable LED | |
| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block |
| USB Ports | 1 x USB 3.0 | |
| Serial Ports | 2 x RS-232/485 (Terminal Block) | |
| Hardware | Certification | CE, FCC class A |
| OS Support | Linux | |
| General | Protocol | OPC-UA Client & Server, DNP3.0 Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101 Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server |
| Environment | Operating Temperature | -40~70 °C |
| Relative Humidity | 95% RH (non-condensing) | |
| Storage Temperature | -40~85 °C | |
| Mechanical | Dimension (W x H x D) | 140 x 32 x 93 mm |
| Form Factor | Passive Cooling and Front Accessible | |
| Mounting | Wall, DIN-rail | |
| Wireless Communication | Standard (Technology) | WIFI, LTE |
Data sheet
