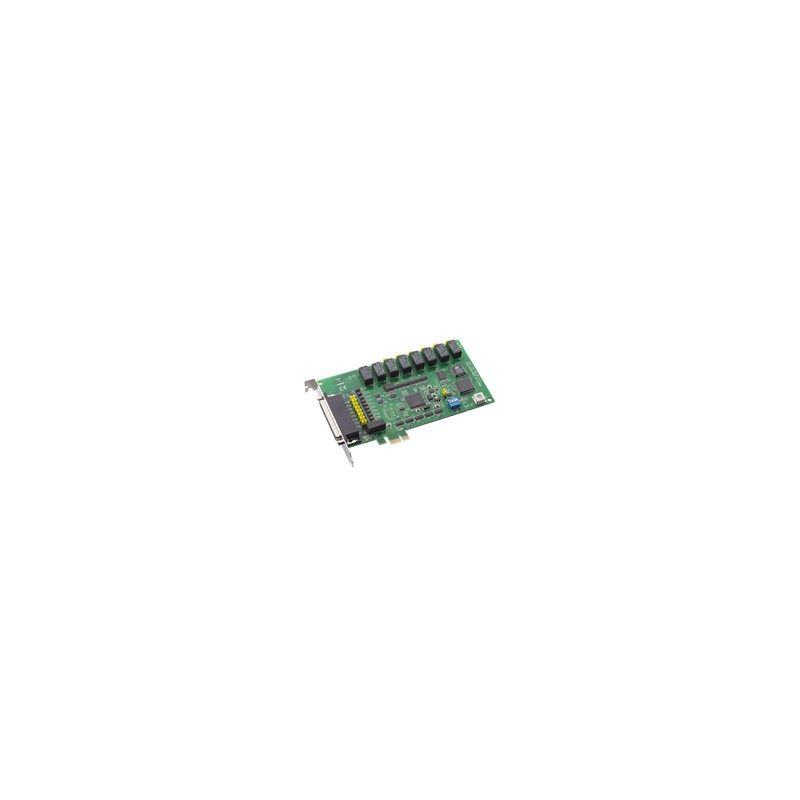

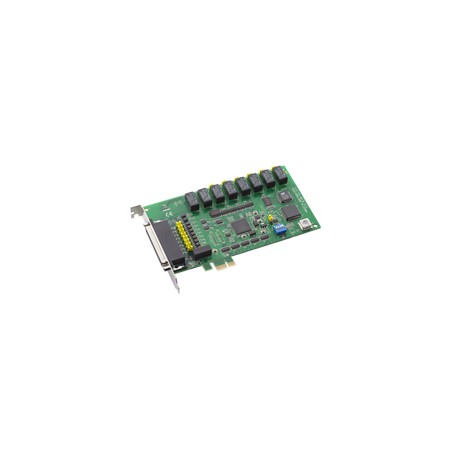

Advantech PCIE-1760-AE
search
  • Advantech PCIE-1760-AE

Advantech PCIE-1760-AE

€175
Tax excluded

8-ch Relay and 8-ch Isolated Digital Input PCIE Card

  • 8 opto-isolated digital input channels with counter/timer function.
  • 8 relay actuator output channels.
  • 2 opto-isolated PWM outputs.
  • Programmable digital filter function for DI.
  • Jumper selectable dry contact/wet contact input signals.
  • Up event counters for DI.
  • LED indicators to show activated relays.
  • Pattern match interrupt function for DI.
  • Change of state interrupt function for DI.
  • BoardID switch.
Quantity
On enquiry



Terms and Conditions


* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech PCIE-1760-AE


PCIE-1760 relay actuator and isolated digital input card is a PC add-on card for the PCI Express bus. It meets the PCI Express standard Rev. 1.0. It provides 8 opto-isolated digital inputs with isolation protection of 2,500 VDC for collecting digital inputs in noisy environments, 8 relay actuators that can be used as a on/off control devices or small power switches, and 2 isolated PWM (Pulse Width Modulation) outputs for custom applications. For easy monitoring, each relay is equipped with one red LED to show its on/off status. Each isolated input supports both dry contact and wet contact so that it can easily interface with other devices when no voltage is present in the external circuit.
Counter/Encoder InputChannels2
Counting Range32-bit
Digital InputChannels8 (Isolated)
Isolation Protection2,500 VDC
GeneralProgramming LanguageC#,C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Relay OutputChannels2 Form C, 6 Form A
Contact Rating (Resistive)1 A @ 30 VDC, 0.5 A @ 125 VAC
Advantech
PCIE-1760-AE

Download

PCIE-1760_DS(03.12.19)20190312144525.pdf

PCIE-1760_DS(03.12.19)20190312144525.pdf
