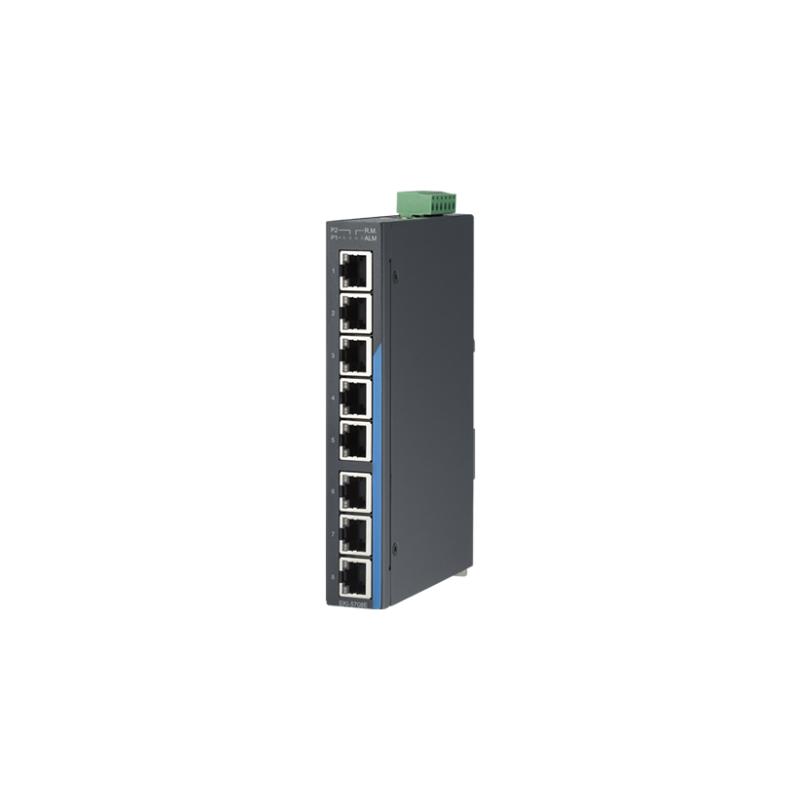

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file EKI-5708E_DS(102924)20241029092353.pdf
Terms and Conditions
| Certification | Ethernet Standard | IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w |
| Vibration | IEC 60068-2-6 | |
| Freefall | IEC 60068-2-32 | |
| Shock | IEC 60068-2-27 | |
| EMI | CE, FCC Class A | |
| EMC | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2 | |
| Safety | EN 62368-1 | |
| Environment | Temperature (Max. Operating) | 75°C |
| Temperature (Min. Operating) | -40°C | |
| Relative Humidity | 10~95% | |
| Operating Temperature | -40 ~ 75°C | |
| Storage Temperature | -40 ~ 85°C | |
| Ethernet Communication | RJ-45 Port Number | 8 |
| RJ-45 Transmission Distance | 100 m | |
| RJ-45 Port Connector Type | RJ-45 | |
| RJ-45 Transmission Speed | 10/100 Mbps | |
| Mechanism | Mounting (Wall) | Yes |
| Mounting (DIN-rail) | Yes | |
| Weight | 1.1 kg | |
| IP Rating | IP30 | |
| Dimensions (W x H x D) | 74 x 152 x 105 mm (2.91 x 5.98 x 4.13) | |
| Power | Power Operating Current | 0.25A @ 48VDC (system) |
| Power Input (DC) | 12 ~ 48 VDC | |
| Power Consumption | 6W | |
| Protection | Reverse Polarity | Present |
| Switch Properties | Switch Fabric Speed | 1.6Gbps |
| Packet Buffer Size | 4.1M bit | |
| MAC Table Size | 8K | |
| Warranty | Warranty Period | 5 years |
Data sheet
