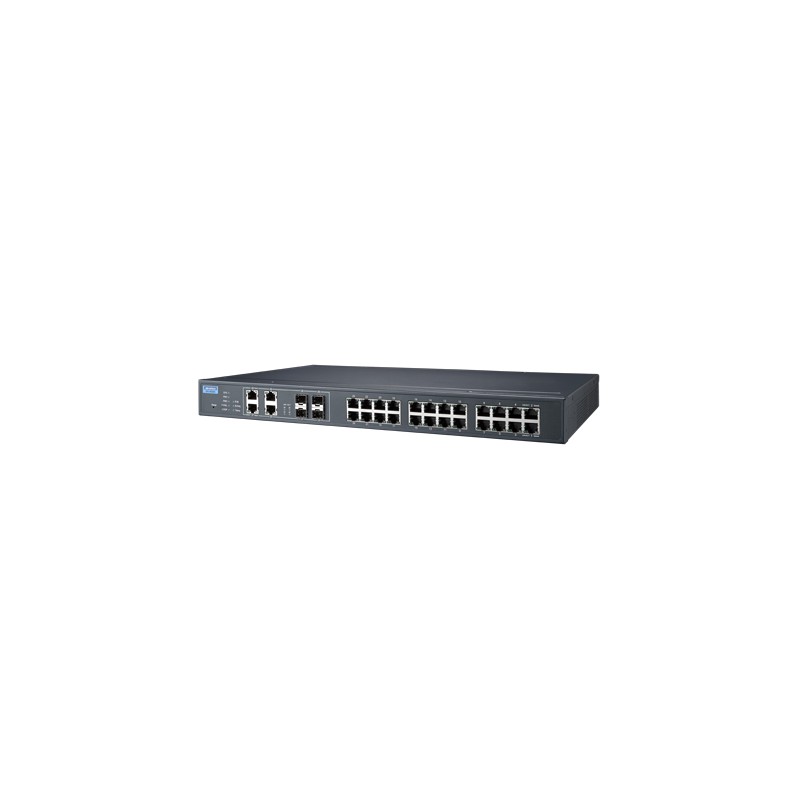

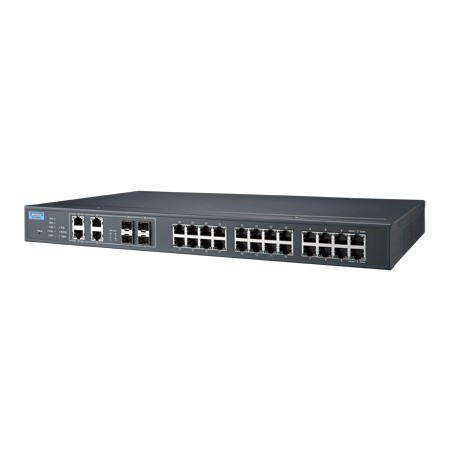

Advantech EKI-9628G-4CI-AE

Name: Advantech EKI-9628G-4CI-AE
Brand: Advantech
SKU: EKI-9628G-4CI-AE
Price: 1539 EUR
Availability: InStock

€1,539

Tax excluded In stock

28 port 19" Gigabit Lite L3 Managed Ethernet Switch,-40~70℃

Rackmount 24G+4G Combo port L3 Managed Switch.
L3 function :Static route , NAT.
SFP socket for Easy and Flexible Fiber Expansion.
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB.
Security:802.1x ,HTTPS,SSH and SNMPv3.
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP(802.1w/1D), MSTP.
-40 ~ 70°C wide-range operating temperature.

Terms and Conditions

* Advantech product versions are identified by the last two characters in the product name, with later letters indicating newer versions (e.g., AE, BE, CE, etc.). To see other versions of this product, please click here: Advantech EKI-9628G-4CI-AE

The EKI-9628G is an industrial-class L3 managed switch supports static route and NAT.Embedded with 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rackmount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. it supports high reliability with -40 ~ 70°C operating temperatures. It is also embedded with Advantech IXM, which benefits users by giving them fast deployment and can dramatically save engineer's time and costs.

* Port Configuration	Total Port Number	28
	Description	10 x 10/100/1000Base-T(X)
Certification	Ethernet Standard	IEEE 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1X, 802.1D, 802.1s, 802.1w, 802.1Q, 802.1ab
	Vibration	IEC 60068-2-6
	Freefall	IEC 60068-2-32
	Shock	IEC 60068-2-27
	EMS	-
	EMI	CE, FCC Class A x
	EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
	Safety	UL 61010
Environment	Temperature (Max. Operating)	75°C (167°F)x
	Temperature (Min. Operating)	-40°C (-40°F)x
	Relative Humidity	10 ~ 95%
	Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F) x
	Humidity (Operating Range)	-
	Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F) x
Ethernet Communication	RJ-45/SFP Combo Port Speed	-
	RJ-45/SFP Combo Port Number	4
	Fiber Port Optical Mode	-
	Fiber Transmission Speed	-
	Fiber Port Number	4
	RJ-45 Port Number	-
	Fiber Transmission Distance	Up to 110 km
	Fiber Port Connector Type	SFP cage x
	Fiber Port Interface x	SFP
	RJ-45 Transmission Distance	100 m
	Ethernet Standard	-
	RJ-45 Port Connector Type !	24 x RJ-45 + 4 x RJ45/SFP Combo ports
	RJ-45 Transmission Speed	10/100/1000 Mbps x
Mechanism	Mounting (Panel)	-
	Enclosure (Plastic)	-
	Mounting (Pole Mount)	-
	Mounting (Stack)	-
	Mounting (Wall)	-
	Mounting (Rack Mount)	Yes
	Mounting (DIN-rail)	-
	Weight	3.8 kg
	IP Rating	IP30
	Dimensions (W x H x D)	438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.) x
MTBF	Method	-
	Time	-
PoE Information	Support PoE	-
	PoE Output	-
	PoE Budget	-
	PoE Port Number	-
Power	Redundant Dual Inputs	-
	Power Input (Battery)	-
	Power Input (PoE)	-
	Power Input (AC)	-
	Power Operating Current	8.3A @ 24V
	Power Connector Type	4-pin removable screw terminal (power & relay)
	Power Input (DC)	12 ~ 48 VDC
	Power Consumption	20W
Protection	Reverse Polarity	Present
	Overload Current	-
Switch Properties	Jumbo Frame	9,216 bytes
	Switch Fabric Speed	56Gbps
	Packet Buffer Size	4.1M bit
	MAC Table Size	8K
Warranty	Warranty Period	5 years

Brand Advantech

Reference EKI-9628G-4CI-AE

In stock 6 Items

Data sheet

Ports Number: 28
Temperature (Operating Range): -40 ~ 75°C
Switch Fabric Speed: 56Gbps

Download

EKI-9628G-4CI_DS(070720)20200715143546.pdf
