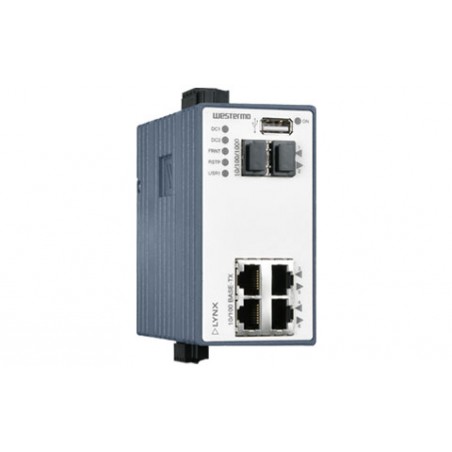

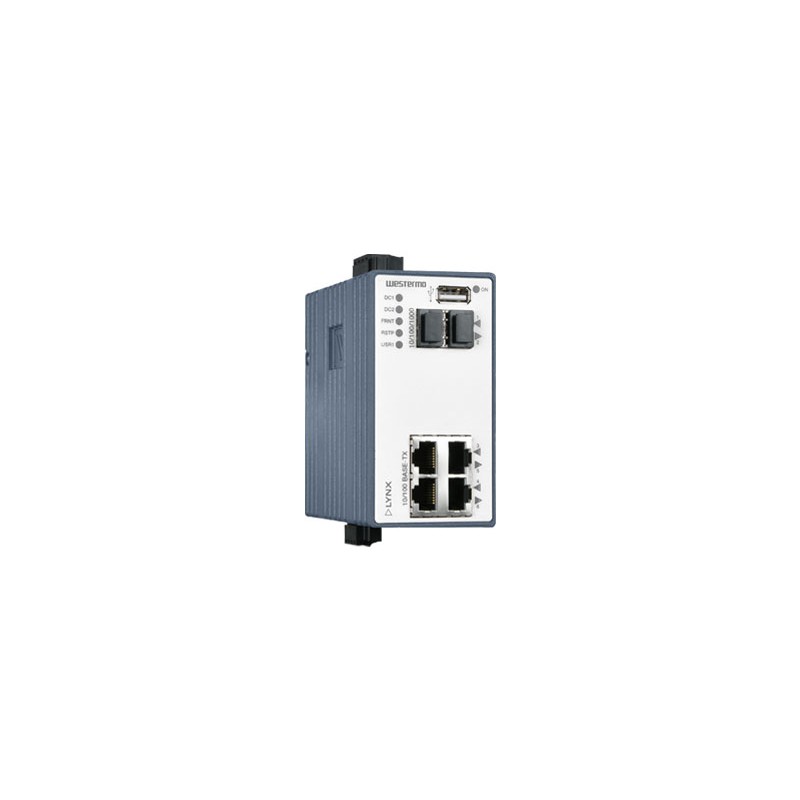

The Lynx 106-F2G is a layer 2 industrial Ethernet switch, powered by the Westermo WeOS network operating system.
Lynx is the most compact and has the lowest power requirements in this class of switch. Lynx 106-F2G has 4 10/100Mbit/s ports in addition to 2 ports which can be fitted with Gbit or 100 Mbit SFP transceivers.
The Lynx is designed for simple use in industrial applications with its the robust DIN rail clip to the configurable fault contact and the industrial level dual power inputs.
Only industrial grade components are used which gives the Lynx an MTBF of 615,000 hours and ensures a long service life.
A wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside application.
WeOS has been developed by Westermo to allow us to offer cross platform and future proof solutions. WeOS can deliver unique IP security functionality for this class of product, for instance a Multiport DMZ can be constructed by utilising the internal port based firewall function. Remote secure access to a network can be provided using encrypted VPNs.
For more WeOS functionality please see the WeOS datasheet.
• Flexible SFP transceiver design
• Advanced WeOS Layer 2 functionality
• Low power consumption
• Dual 19 – 60 VDC power input
• Highly configurable I/O contact
• Robust metal DIN rail housing
• 615,000 hours MTBF to MIL-HDBK-217K
• –40 to +70°C (–40 to +158°F) with no moving parts
• Industrial EMC, shock and vibration testing
• 20 ms network ring recovery time
• Fast reconnect for multicast protocols
• Easy to use
