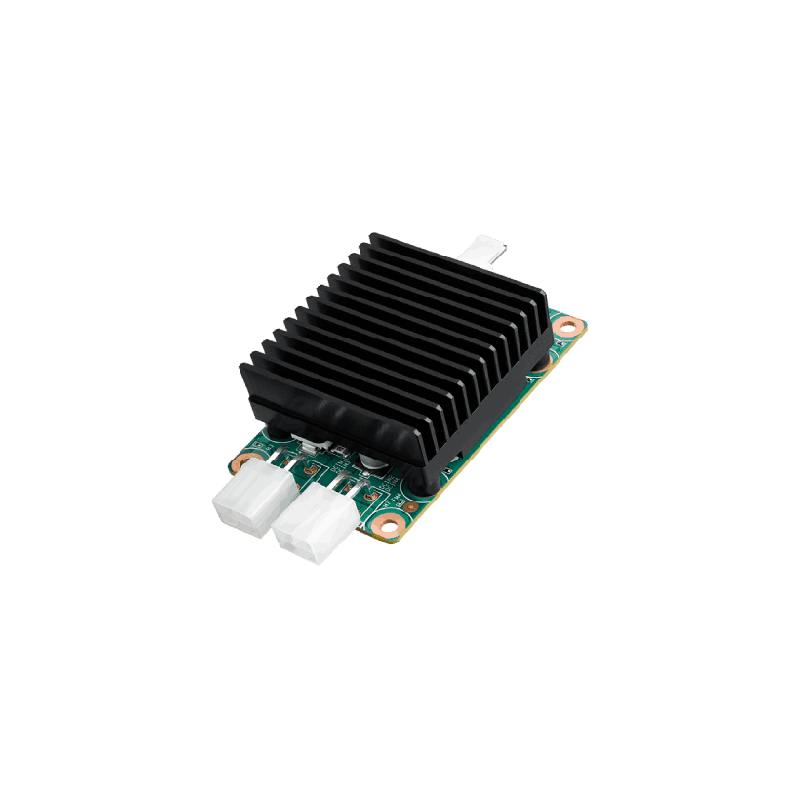

* Images are for reference only. See product specifications (datasheet).
Technical Documentation:
insert_drive_file MIOe-TCPD_DS(051325)20250513135327.pdf
Terms and Conditions
| Power | Output Power Voltage | 20V/15V/12V/9V 5A |
| USB Power Delivery Standard | PD 3.0 | |
| Max. Power | 100watt | |
| Compatibility | Compatible SBC | MIO-5379 |
| Power | Input Voltage | 12 ~ 24 VDC |
| Environment | Temperature (Operating) | -40 ~ 85 °C with 0.7m/s airflow |
| Temperature (Storage) | - 40 ~ 85° C | |
| Relative Humidity | 40° C @ 95%, Non-Condensing, operating; 60° C @ 95%, Non-Condensing, non-operating | |
| Vibration Resistance | 3.5 Grms | |
| Certifications | EMC | CE, FCC class B |
| Mechanical | Dimensions | 70 x 40 mm |
